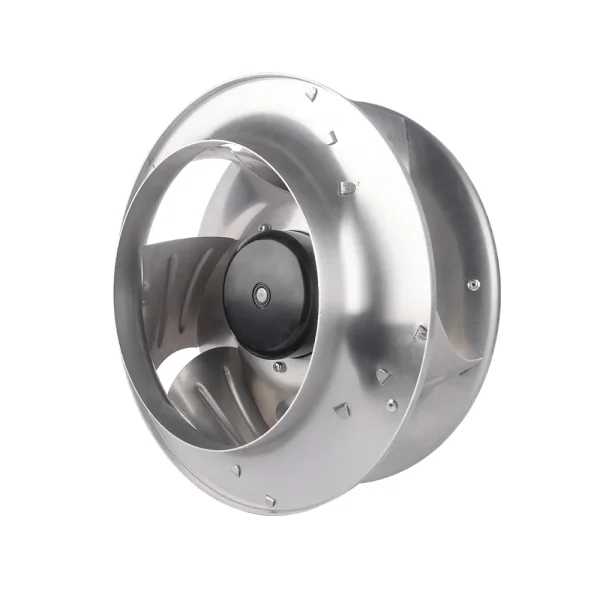

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ250 mm9.8 in
Max airflow1,700 m³/h1,000 CFM
Max static pressure1,082 Pa4.34 in. wg
Voltage230 V
Speed3,500 rpm
Input power370 W
Noise82 dB(A)

LWBE3G250-102NS-26 EC Backward Curved Centrifugal Fan Ø250 mm

Ø250 mm | EC | Max airflow 1,700 m³/h | Max static pressure 1,082 Pa | 82 dB(A)

SKU: LWBE3G250-102NS-26 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø250–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Backward centrifugal fans #1 · SKU on PDF p. 16

All files for LWBE3G250-102NS-266 files · direct download

PDFFull product catalogue · model on PDF p. 16 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as ebm-papst K3G250, ebm-papst R3G250 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G250-102NS-26

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G250-102NS-26datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBE3G250-102NS-26

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWBE3G250-102NS-26

Longwell 250mm EC Backward Curved Centrifugal Fan | High Efficiency & Quiet HVAC Motor LWBE3G250-102PS-28 · open in video library

Longwell EC Backward Inclined Centrifugal Fan: Quiet Efficiency, Smart Future | LWBE3G250-102NS-40 · open in video library

Drawing, Curve & Wiring LWBE3G250-102NS-26

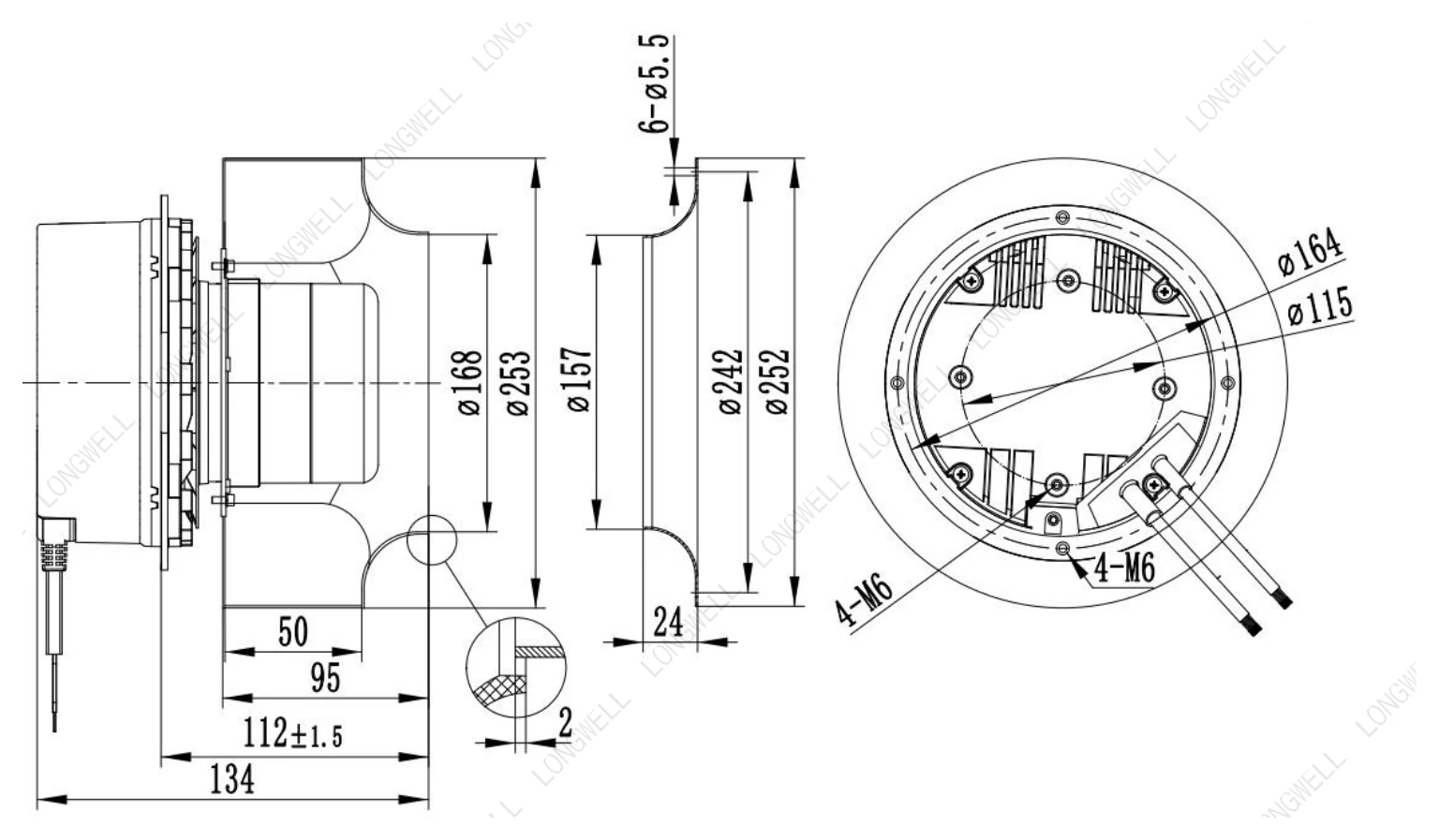

LWBE3G250-102NS-26 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

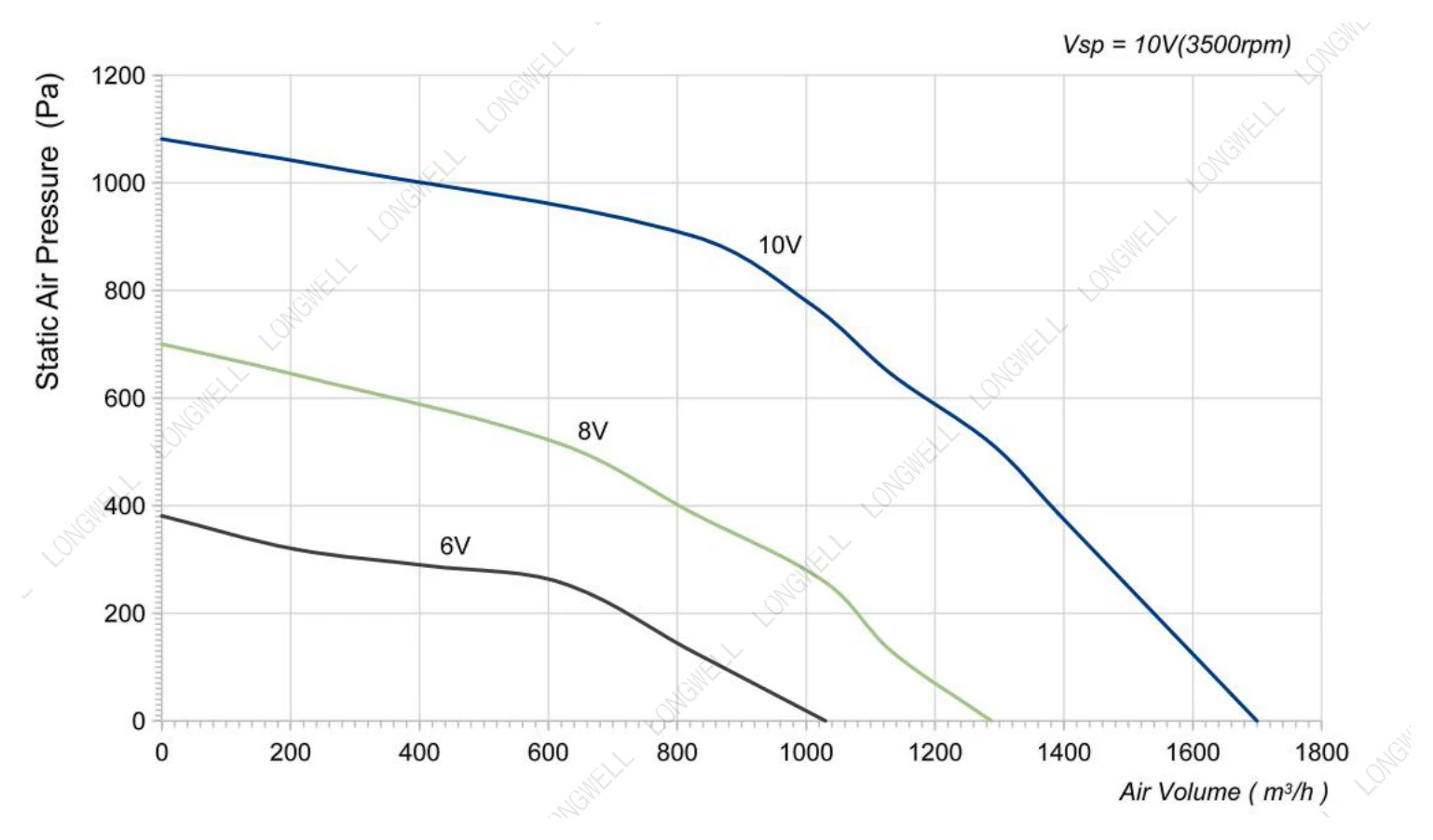

LWBE3G250-102NS-26 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWBE3G250-102NS-26 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWBE3G250-102NS-26: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBE3G250-102NS-26

LWBE3G250-102NS-26 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 230 V EC, maximum airflow 1,700 m³/h, maximum static pressure 1,082 Pa, noise 82 dB(A), input power 370 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G250-102NS-26
Series	LWBE3G250
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	2.6 A
Input power	370 W
Speed	3,500 rpm
Max. airflow	1,700 m³/h
Max. airflow (CFM)	1,000 CFM
Max. static pressure	1,082 Pa
Noise	82 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Speed control	Control input 0~10VDC/PWM
Control signal	Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.1VDC, the motor switches from operating mode to standby mode)
Speed feedback	Tach output: 4 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Current limiting protection , Over-temperature protection, Over-current protectionLocked-rotor protection’ , Input power supply lacks phase protection
Soft start	Delay time <30 seconds to full speed
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
