LWDD series dimensional drawing (shared by several models)

LWDD series performance curve (shared by several models)

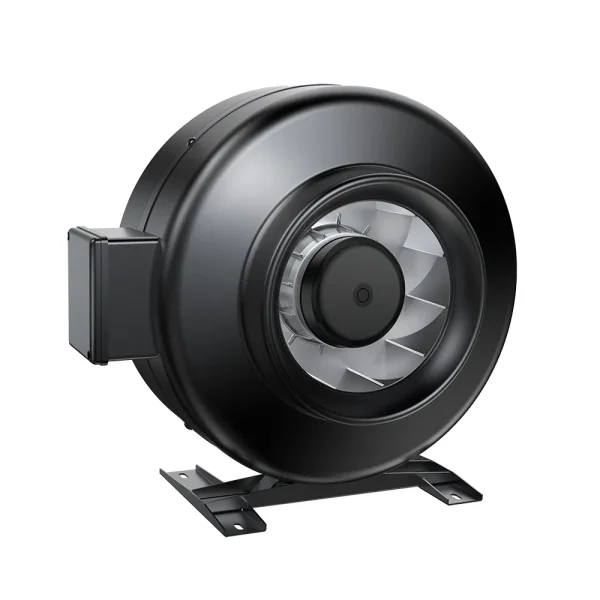

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ160 mm6.3 in
Max airflow662 m³/h390 CFM
Max static pressure505 Pa2.03 in. wg
Voltage24 V
Speed3,050 rpm
Input power100 W
Noise72 dB(A)

LWDD-160M-MBN-02 DC Metal Inline Duct Fan Ø160 mm

Ø160 mm | DC | Max airflow 662 m³/h | Max static pressure 505 Pa | 72 dB(A)

SKU: LWDD-160M-MBN-02 Categories: Impeller Ø160–315 mm, Inline Duct Fans, Metal Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC&DC&EC AC&DC&EC Metal duct fans · SKU on PDF p. 20

All files for LWDD-160M-MBN-024 files · direct download

PDFFull product catalogue · model on PDF p. 20 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDD-160M-MBN-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDD-160M-MBN-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

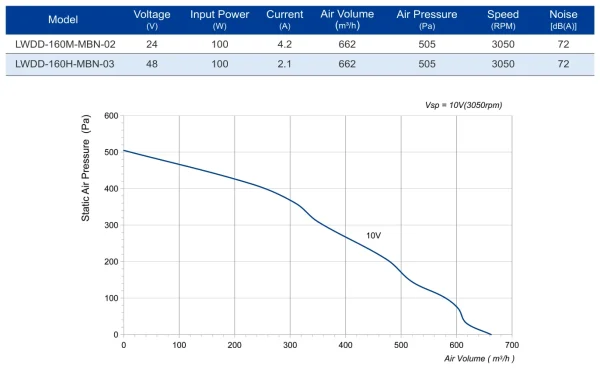

Performance curve (P-Q) LWDD-160M-MBN-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWDD-160M-MBN-02

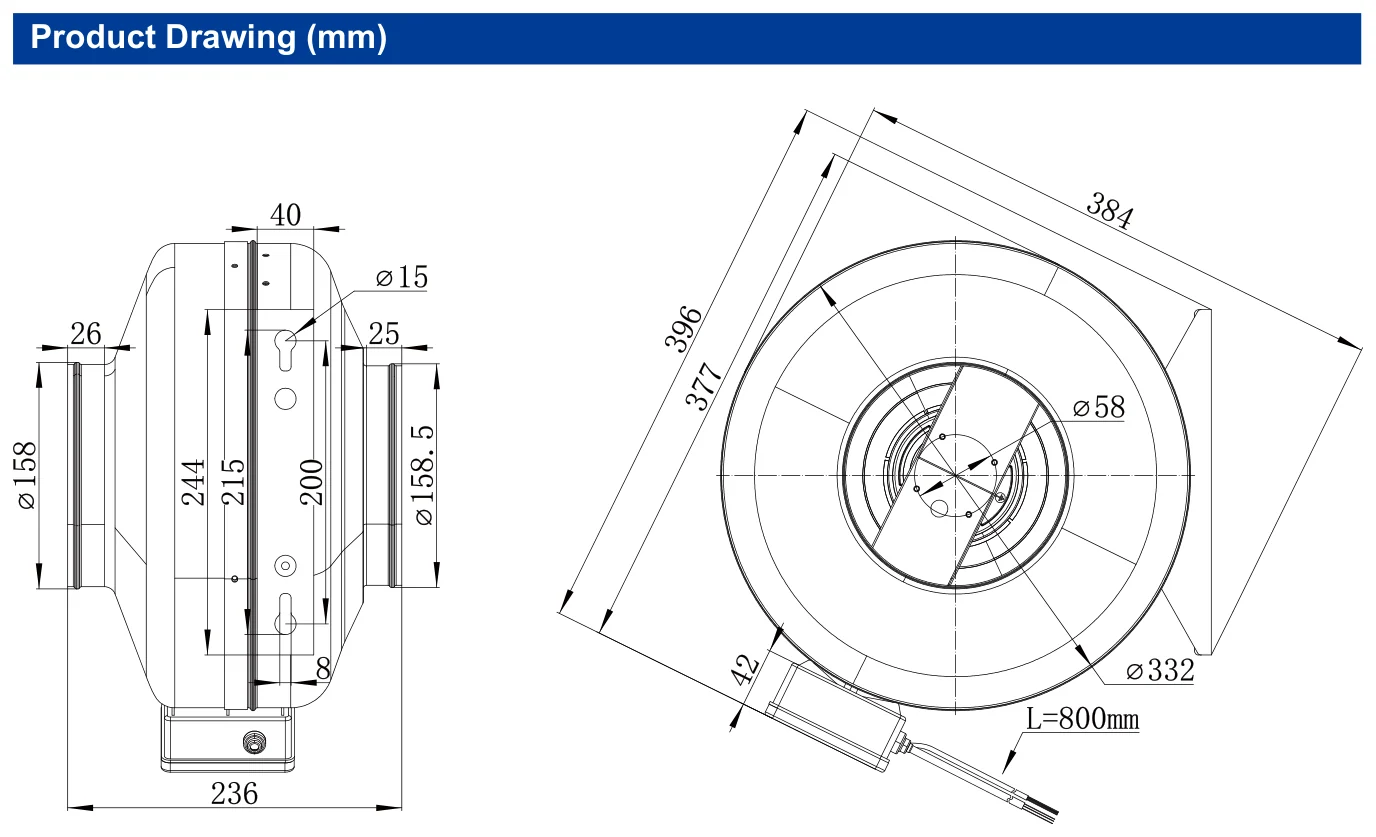

LWDD-160M-MBN-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

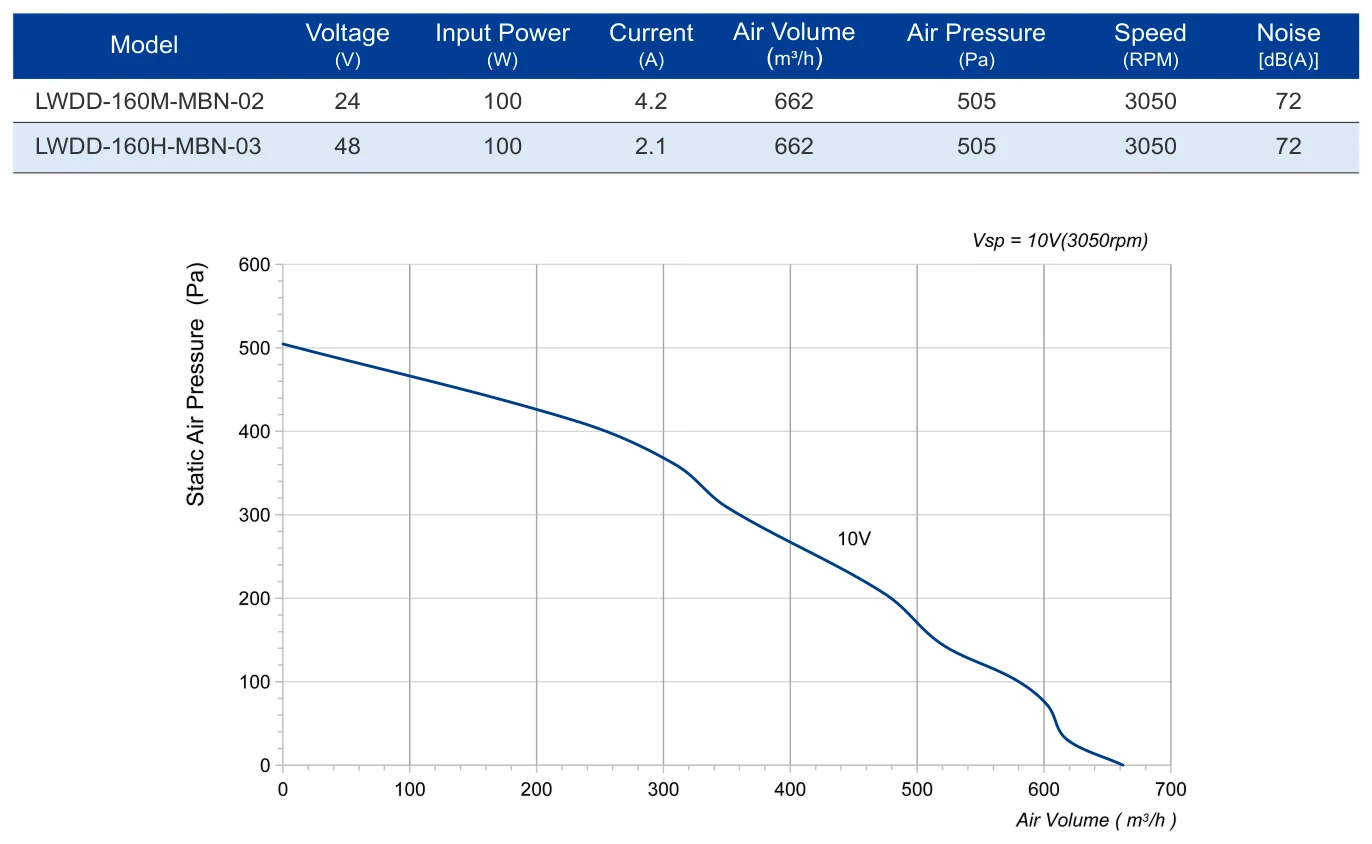

LWDD-160M-MBN-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWDD-160M-MBN-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDD-160M-MBN-02

LWDD-160M-MBN-02 is a LONGWELL DC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø160 mm, rated 24 V DC, maximum airflow 662 m³/h, maximum static pressure 505 Pa, noise 72 dB(A), input power 100 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWDD-160M-MBN-02
Series	LWDD160
Motor type	DC
Rated voltage	24 V
Current	4.2 A
Input power	100 W
Speed	3,050 rpm
Max. airflow	662 m³/h
Max. static pressure	505 Pa
Noise	72 dB(A)
Impeller diameter	Ø160 mm
Inlet diameter	160mm
Impeller material	Plastic

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDD160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
