Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ250 mm9.8 in
- Max airflow2,075 m³/h1,221 CFM
- Voltage220-240 V
- Speed3,000 rpm
- Input power195 W
- Noise62 dB(A)
LWDE-250 (10″)S-MWN-04 EC Ultra Silent Metal Duct Fan Ø250 mm
Ø250 mm | EC | Max airflow 2,075 m³/h | 62 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

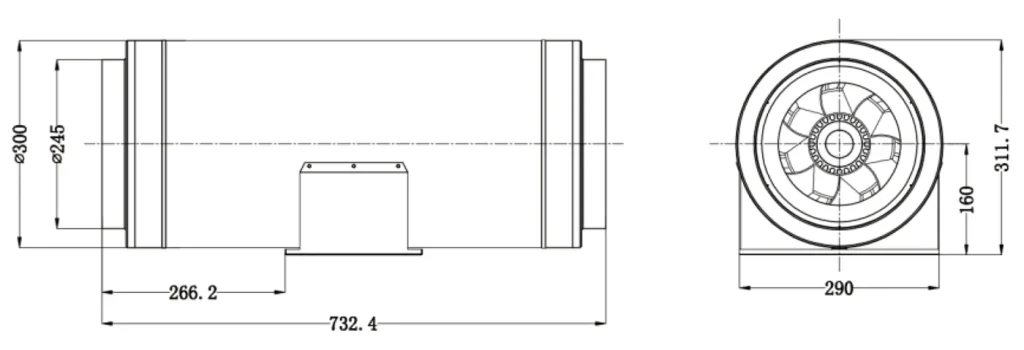

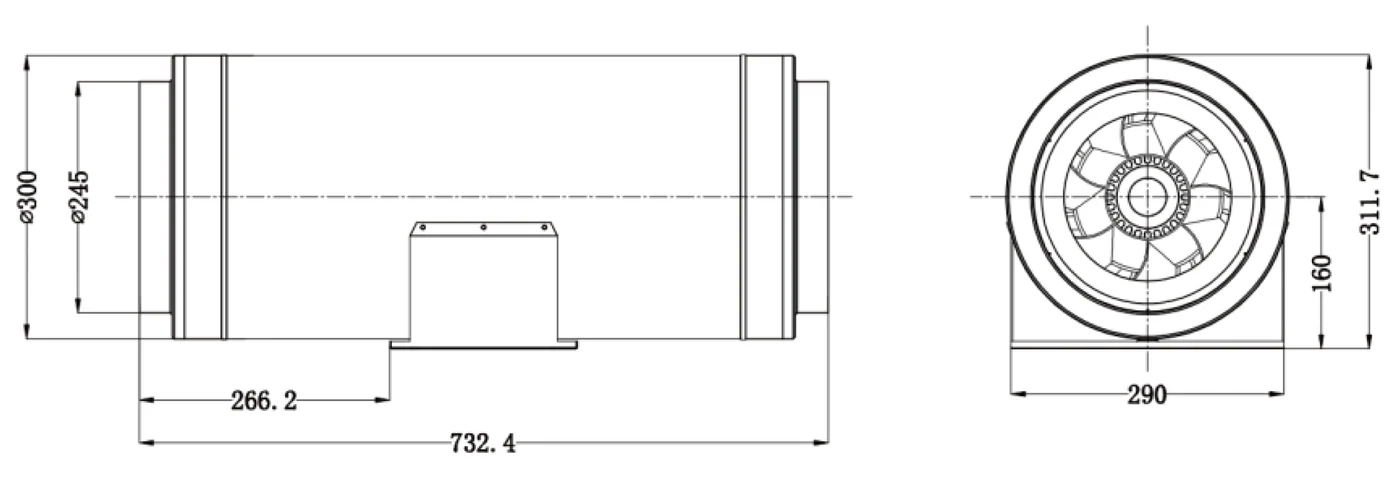

Dimensional drawing LWDE-250 (10")S-MWN-04
Files for LWDE-250 (10")S-MWN-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWDE-250 (10")S-MWN-04
LWDE-250 (10")S-MWN-04 is a LONGWELL EC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø250 mm, rated 220-240 V EC, maximum airflow 2,075 m³/h, noise 62 dB(A), input power 195 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-250 (10")S-MWN-04 |
|---|---|
| Series | LWDE250 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220-240 V |
| Frequency | 50 Hz |
| Input power | 195 W |
| Speed | 3,000 rpm |
| Max. airflow | 2,075 m³/h |
| Noise | 62 dB(A) |
| Impeller diameter | Ø250 mm |
| Inlet diameter | 250mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
