- ImpellerØ315 mm12.4 in
- Max airflow2,273 m³/h1,338 CFM
- Max static pressure74 Pa0.30 in. wg
- Voltage220 V
- Speed1,450 rpm
- Input power250 W

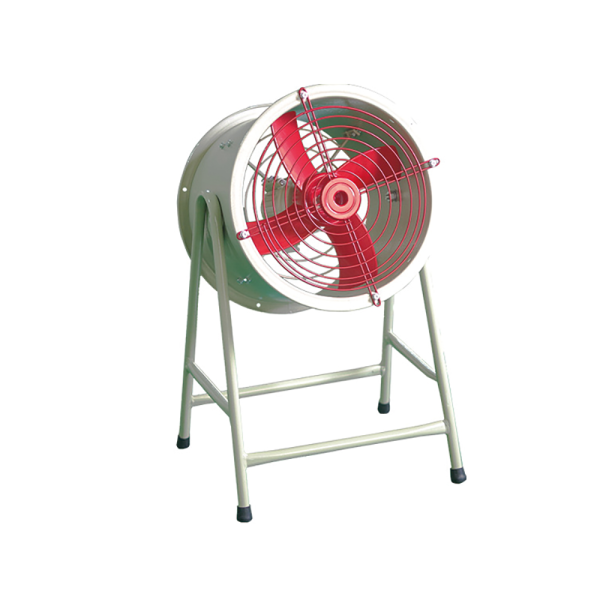

LWEA315S(T)M-157E Industrial Axial Fan Ø315 mm
Ø315 mm | AC | Max airflow 2,273 m³/h | Max static pressure 74 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWEA315S(T)M-157E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø315 mm, rated 220 V AC, maximum airflow 2,273 m³/h, maximum static pressure 74 Pa, input power 250 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWEA315S(T)M-157E |
|---|---|
| Series | LWEA315 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 250 W |
| Speed | 1,450 rpm |
| Max. airflow | 2,273 m³/h |
| Max. static pressure | 74 Pa |
| Impeller diameter | Ø315 mm |
| Blade diameter | 315mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø315 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA315S(T)M-157E this model | 2,273 m³/h | 74 Pa | 1,450 rpm | 250 W | — | 220 V | |
| LWMFAF315-01 | 3,300 m³/h | 1,050 Pa | — | — | 87 dB(A) | 380 V | View |
| LWEA315S(T)M-158E | 4,545 m³/h | 373 Pa | 2,900 rpm | 370 W | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
