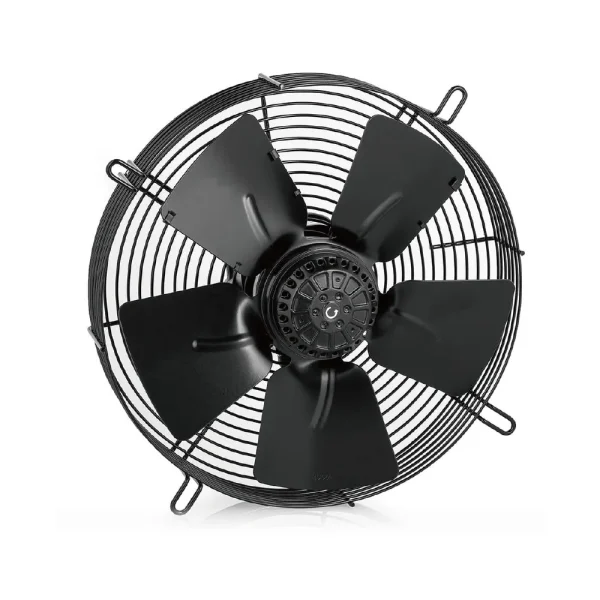

LWAA4D300S-5MEB-03 AC Axial Fan Ø300 mm
Ø300 mm | AC | Max airflow 1,803 m³/h | 52 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC ( ) Axial fans( Standard Version) · SKU on PDF p. 11
All files for LWAA4D300S-5MEB-035 files · direct download

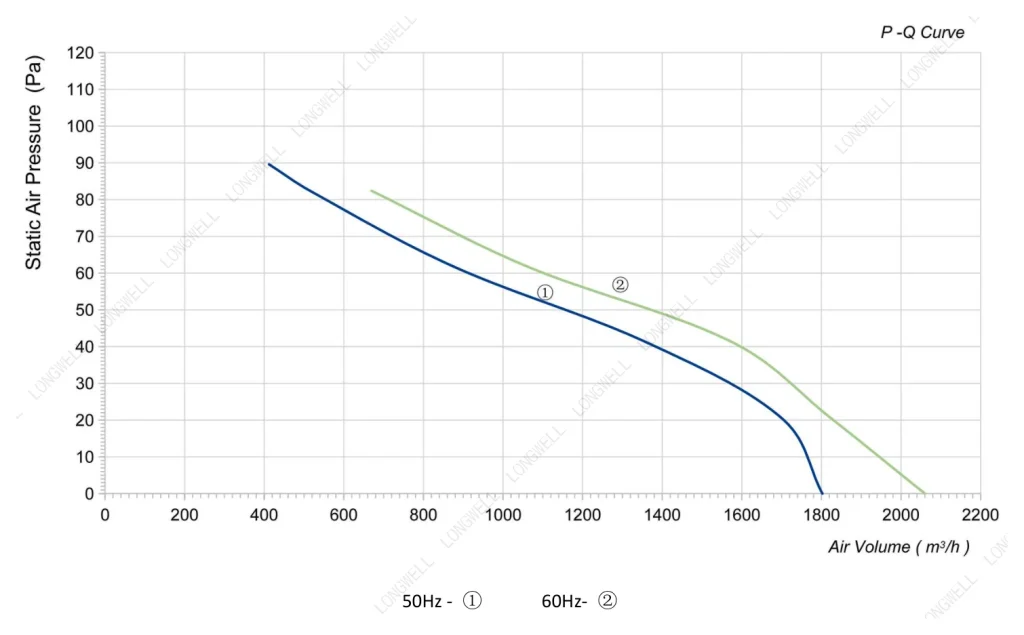

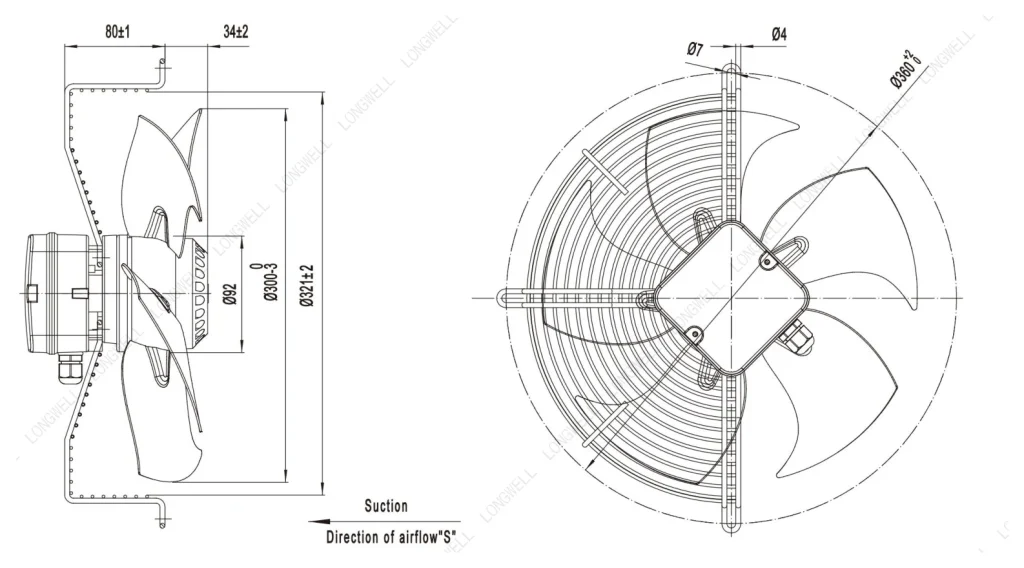

PDFFull product catalogue · model on PDF p. 11WEBPDimensional drawingWEBPPerformance curveWEBPWiring diagram
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Heat pump fan programme · Telecom & power cabinet cooling · Cold chain supermarket retrofit · Dry-type transformer cooling — all case studies on longwellfans.com
Typical applications: Heat exchangers & condensers · Refrigeration · Condensing units · Refrigeration condensers — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWAA4D300S-5MEB-03 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø300 mm, rated 380 V AC, maximum airflow 1,803 m³/h, noise 52 dB(A), input power 90 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D300S-5MEB-03 |
|---|---|
| Series | LWAA4D300 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 50 Hz |
| Current | 0.25 A |
| Input power | 90 W |
| Speed | 1,380 rpm |
| Max. airflow | 1,803 m³/h |
| Noise | 52 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø300 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø300 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D300S-5MEB-03 this model | 1,803 m³/h | see curve | 1,380 rpm | 90 W | 52 dB(A) | 380 V | |
| LWA-300(12")U(S)M-01 | 35 m³/h | see curve | 1,350 rpm | 100 W | — | 110-120 V | View |
| LWA-300(12")U(S)M-02 | 46 m³/h | see curve | 1,350 rpm | 120 W | — | 110-120 V | View |
| LWA-300(12")U(S)M-03 | 65 m³/h | see curve | 2,800 rpm | 370 W | — | 110-120 V | View |
| LWAA4E300S-5MKB-13 | 1,803 m³/h | see curve | 1,350 rpm | 90 W | 54 dB(A) | 220/230 V | View |
| LWAA4E300S-5MEW-15 | 1,906 m³/h | see curve | 1,370 rpm | 85 W | — | 220 V | View |
| LWAA4E300S-5MKB-14 | 2,060 m³/h | see curve | 1,600 rpm | 115 W | 55 dB(A) | 220/230 V | View |
| LWEA300S(T)M-067E | 2,280 m³/h | see curve | 1,450 rpm | 180 W | — | 220 V | View |
| LWEAF300-01 | 2,280 m³/h | see curve | 1,450 rpm | 180 W | — | 220 V | View |
| LWAA2E300S-5MEW-14 | 2,575 m³/h | see curve | 2,300 rpm | 180 W | 60 dB(A) | 220 V | View |
| LWA-300(12")U(S)M-04 | 3,000 m³/h | 230 Pa | 2,800 rpm | 370 W | — | 110-120 V | View |
| LWAA2E300S-5MEW-07 | 3,090 m³/h | 391 Pa | 2,750 rpm | 270 W | 72 dB(A) | 220 V | View |
| LWAA2D300S-5MEW-05 | 3,090 m³/h | see curve | 2,750 rpm | 270 W | 72 dB(A) | 380/400 V | View |
| LWAA2D300S-5MEW-06 | 3,296 m³/h | see curve | 3,100 rpm | 400 W | 73 dB(A) | 380/400 V | View |
| LWAA2E300S-5MEW-08 | 3,502 m³/h | see curve | 3,000 rpm | 400 W | 73 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
