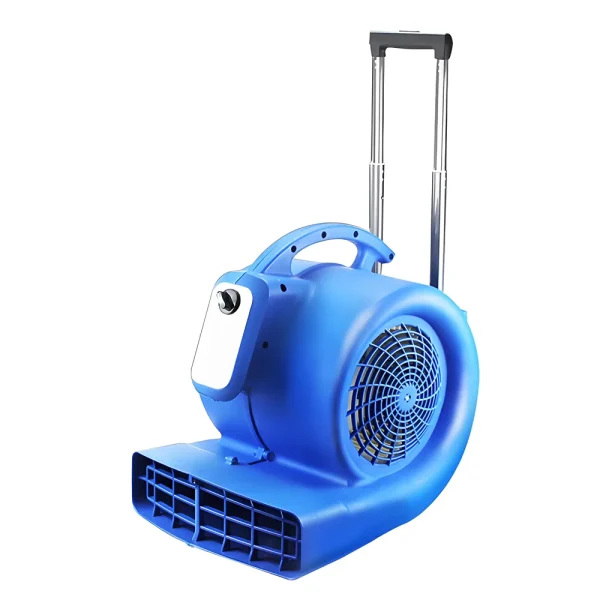

LWF-1300-02B is a LONGWELL Floor Dryer Blower from the Exhaust Fans range, rated 220 V AC, noise 79 dB(A), input power 1,000 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWF-1300-02B |
|---|---|
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Input power | 1,000 W |
| Speed | 1,480 rpm |
| Noise | 79 dB(A) |
Typical applications
- Bathrooms and kitchens
- Workshops and garages
- Basements and warehouses
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
