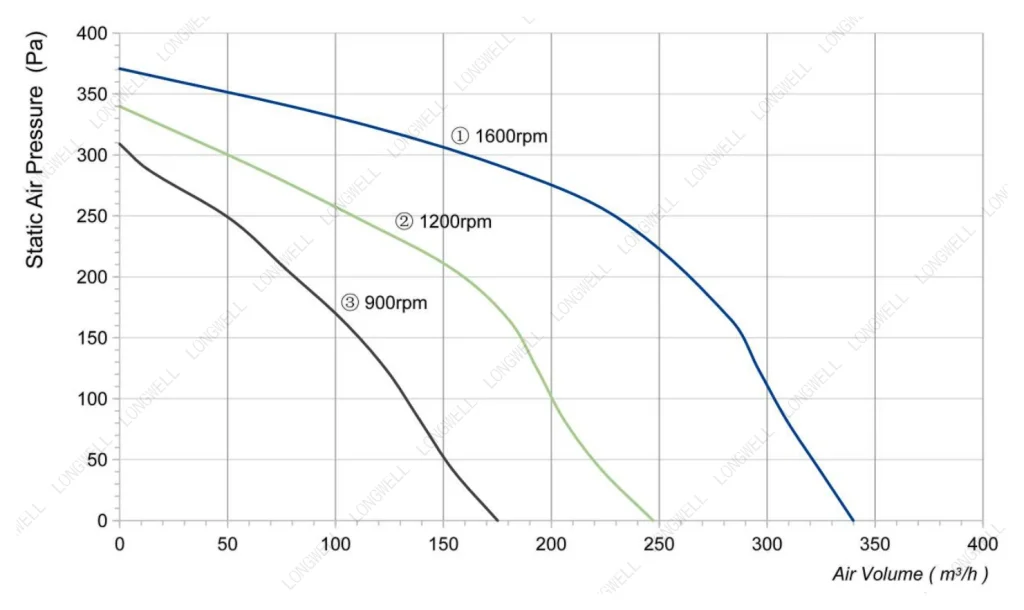

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ140 mm5.5 in
- Max airflow340 m³/h200 CFM
- Max static pressure371 Pa1.49 in. wg
- Voltage230 V
- Speed1,600 rpm
- Input power100 W
- Noise52 dB(A)

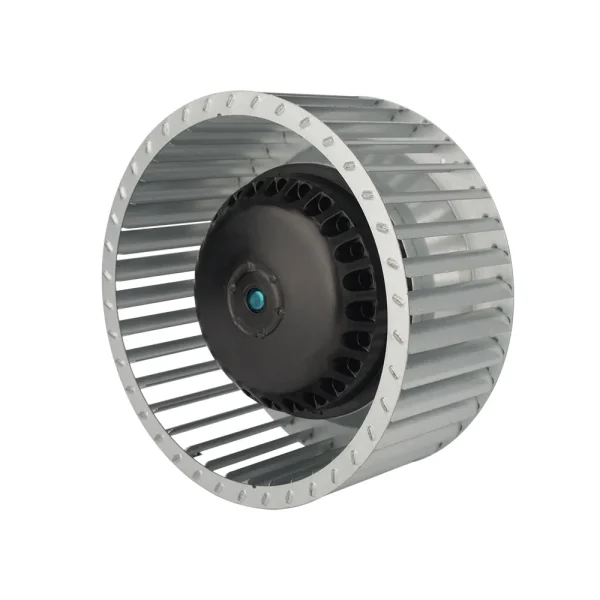

LWFA2E140-092NS-03 AC Forward Curved Centrifugal Fan Ø140 mm
Ø140 mm | AC | Max airflow 340 m³/h | Max static pressure 371 Pa | 52 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWFA2E140-092NS-03
PDFDatasheet · 564 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFA2E140-092NS-03 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø140 mm, rated 230 V AC, maximum airflow 340 m³/h, maximum static pressure 371 Pa, noise 52 dB(A), input power 100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA2E140-092NS-03 |
|---|---|
| Series | LWFA2E140 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.42 A |
| Input power | 100 W |
| Speed | 1,600 rpm |
| Max. airflow | 340 m³/h |
| Max. static pressure | 371 Pa |
| Noise | 52 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø140 mm |
| Rotor diameter | 92 |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA2E140: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø140 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA2E140-092NS-03 this model | 340 m³/h | 371 Pa | 1,600 rpm | 100 W | 52 dB(A) | 230 V | |
| LWFA2E140-092NS-02 | 314 m³/h | 484 Pa | 1,500 rpm | 110 W | 58 dB(A) | 230 V | View |
| LWFA2E140-092NS-01 | 335 m³/h | 330 Pa | 1,600 rpm | 100 W | 52 dB(A) | 230 V | View |
| LWFA2E140-092SS-02 | 335 m³/h | 433 Pa | 1,400 rpm | 90 W | 52 dB(A) | 230 V | View |
| LWFA2E140-092SS-01 | 446.25 m³/h | 378 Pa | 2,400 rpm | 148 W | 65 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
