ImpellerØ140 mm5.5 in
Max airflow314 m³/h185 CFM
Max static pressure484 Pa1.94 in. wg
Voltage230 V
Speed1,500 rpm
Input power110 W
Noise58 dB(A)

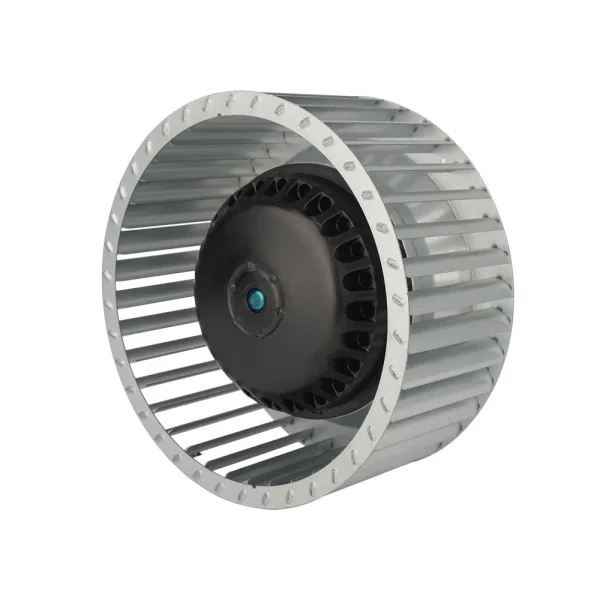

LWFA2E140-092NS-02 AC Forward Curved Centrifugal Fan Ø140 mm

Ø140 mm | AC | Max airflow 314 m³/h | Max static pressure 484 Pa | 58 dB(A)

SKU: LWFA2E140-092NS-02 Categories: Centrifugal Fans, Forward Curved Centrifugal Fans, Impeller Ø108–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWFA2E140-092NS-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFA2E140-092NS-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

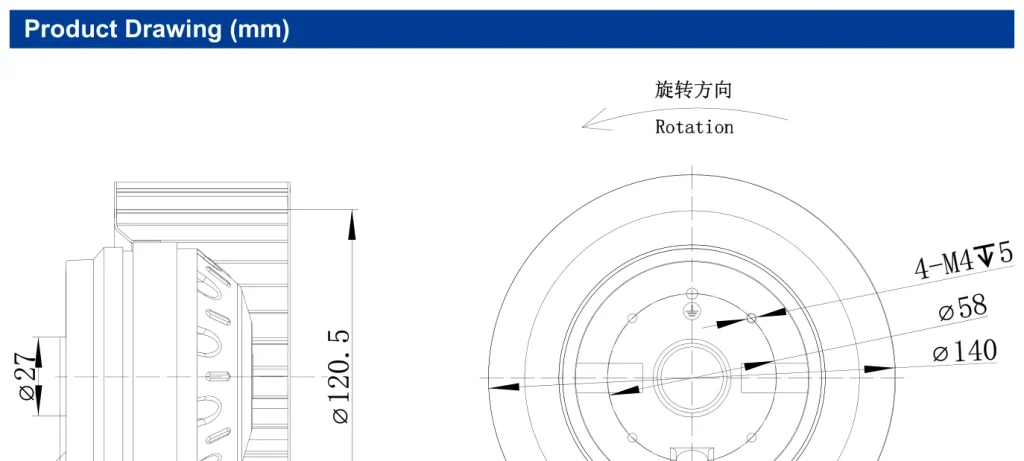

LWFA2E140-092NS-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

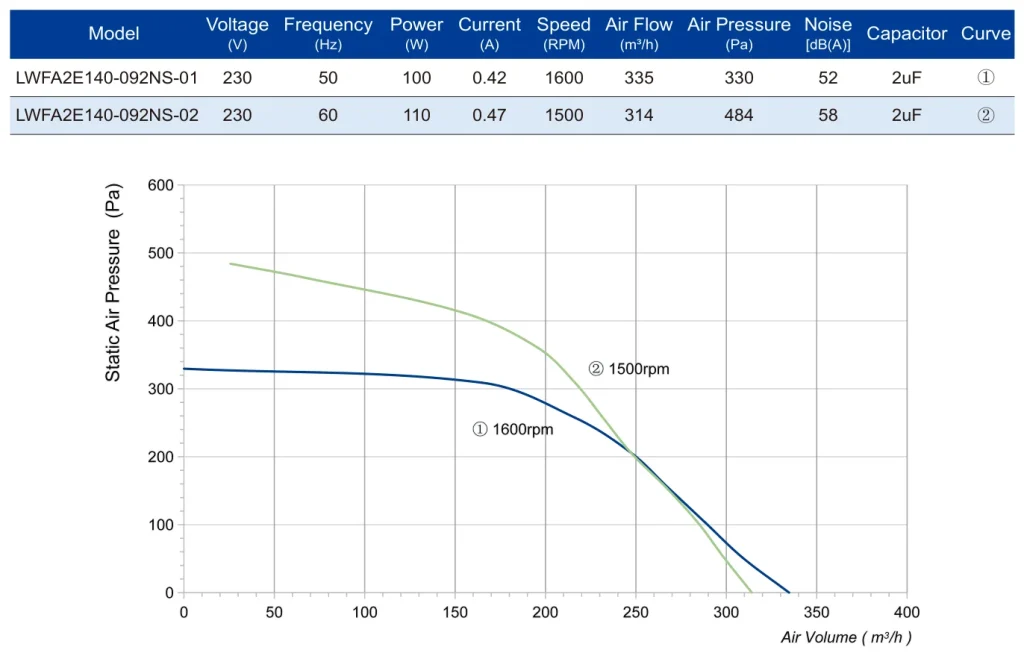

LWFA2E140-092NS-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Series catalogue

PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MB

Covers the whole series, not only this model.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA2E140-092NS-02 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø140 mm, rated 230 V AC, maximum airflow 314 m³/h, maximum static pressure 484 Pa, noise 58 dB(A), input power 110 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA2E140-092NS-02
Series	LWFA2E140
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	60 Hz
Current	0.47 A
Input power	110 W
Speed	1,500 rpm
Max. airflow	314 m³/h
Max. static pressure	484 Pa
Noise	58 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø140 mm
Rotor diameter	92
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA2E140: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø140 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA2E140-092NS-02 this model	314 m³/h	484 Pa	1,500 rpm	110 W	58 dB(A)	230 V
LWFA2E140-092NS-01	335 m³/h	330 Pa	1,600 rpm	100 W	52 dB(A)	230 V	View
LWFA2E140-092SS-02	335 m³/h	433 Pa	1,400 rpm	90 W	52 dB(A)	230 V	View
LWFA2E140-092NS-03	340 m³/h	371 Pa	1,600 rpm	100 W	52 dB(A)	230 V	View
LWFA2E140-092SS-01	446.25 m³/h	378 Pa	2,400 rpm	148 W	65 dB(A)	230 V	View
