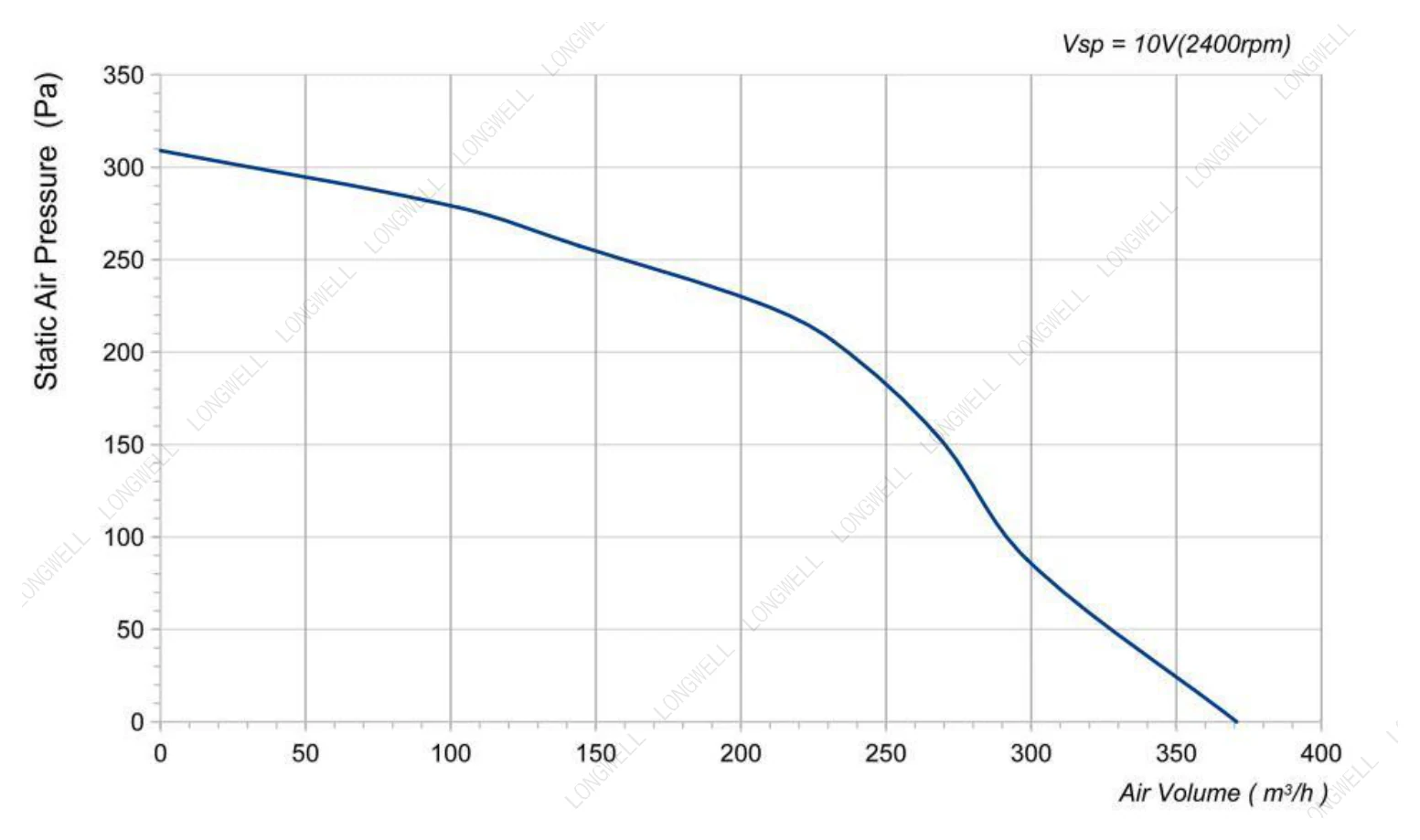

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ120 mm
- Max airflow371 m³/h
- Max static pressure309 Pa
- Voltage24 V
- Speed2,400 rpm
- Input power95 W
- Noise60 dB(A)

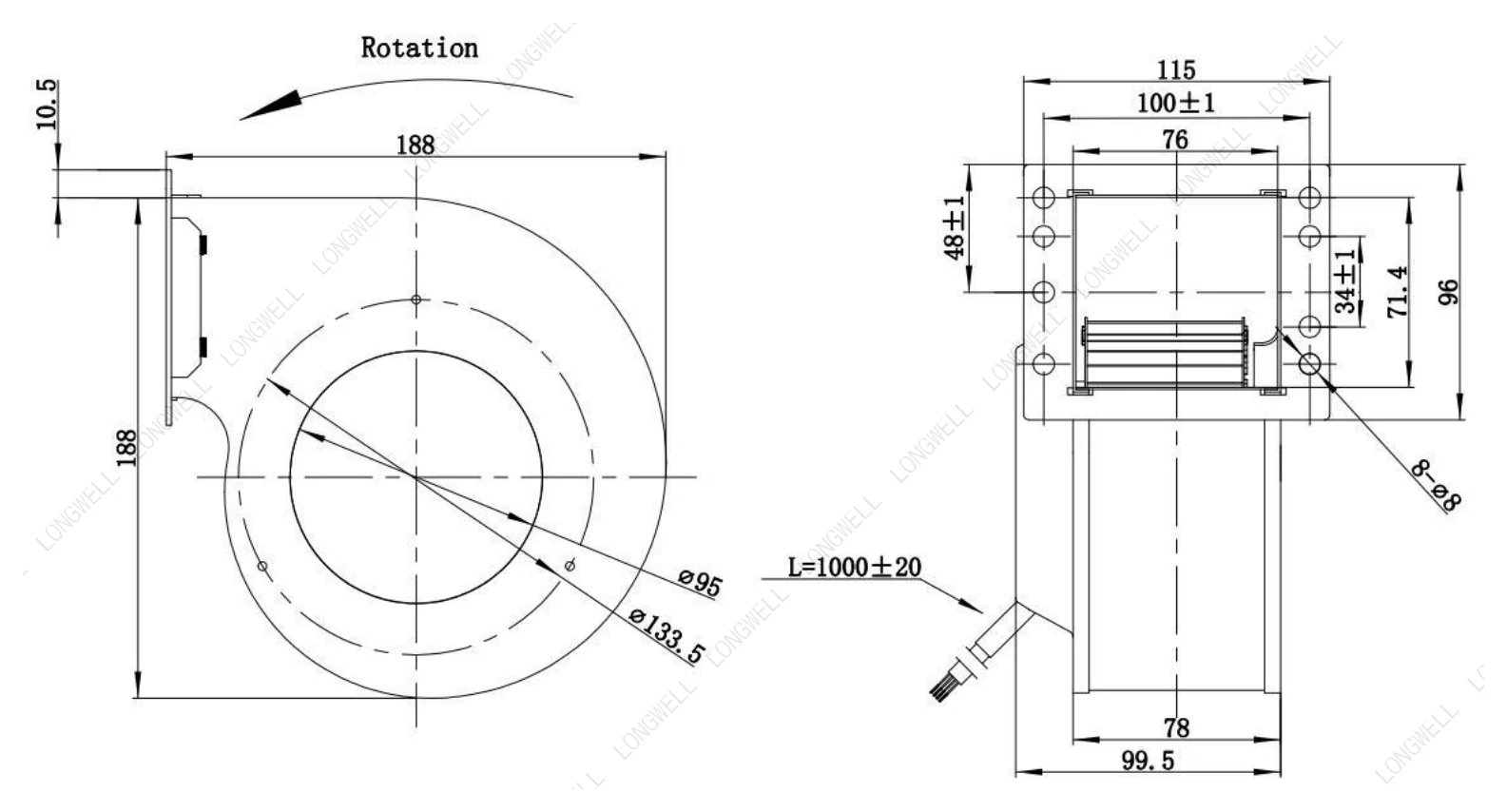

LWFD3G120-072SM-02 DC Single Inlet Forward Centrifugal Blower Ø120 mm
Ø120 mm | DC | Max airflow 371 m³/h | Max static pressure 309 Pa | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWFD3G120-072SM-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFD3G120-072SM-02 is a LONGWELL DC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø120 mm, rated 24 V DC, maximum airflow 371 m³/h, maximum static pressure 309 Pa, noise 60 dB(A), input power 95 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWFD3G120-072SM-02 |
|---|---|
| Series | LWFD3G120 |
| Motor type | DC |
| Rated voltage | 24 V |
| Current | 3.96 A |
| Input power | 95 W |
| Speed | 2,400 rpm |
| Max. airflow | 371 m³/h |
| Max. static pressure | 309 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø120 mm |
| Rotor diameter | 72 |
| Impeller material | Plastics PA66 (Impeller) |
| Insulation class | B |
| Bearing | Two Ball Bearing |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 0%~90%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFD3G120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø120 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFD3G120-072SM-02 this model | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 24 V | |
| LWFD12032HL-04 | 34.2 m³/h | 105 Pa | 1,500 rpm | 7.2 W | 38.6 dB(A) | 48 V | View |
| LWFD12032HM-03 | 57 m³/h | 291 Pa | 2,500 rpm | 12 W | 49.7 dB(A) | 48 V | View |
| LWFD12032HH-02 | 68.4 m³/h | 419 Pa | 3,000 rpm | 14.4 W | 53.7 dB(A) | 48 V | View |
| LWFD3G120-072SZ-02 | 319 m³/h | 247 Pa | 2,200 rpm | 65 W | 57 dB(A) | 310 V | View |
| LWFD3G120-072SZ-01 | 319 m³/h | 247 Pa | 2,200 rpm | 65 W | 57 dB(A) | 310 V | View |
| LWFD3G120-072SH-01 | 359 m³/h | 189 Pa | 2,365 rpm | 67 W | — | 48 V | View |
| LWFD3G120-072SH-03 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 48 V | View |
| LWFD3G120-072SH-02 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 48 V | View |
| LWFD3G120-072SM-01 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 24 V | View |
| LWCD-120380MN-06 | 900 m³/h | 68 Pa | 1,350 rpm | 48 W | 56 dB(A) | 24 V | View |
| LWCD-120490MN-06 | 1,160 m³/h | 88 Pa | 1,350 rpm | 90 W | 57 dB(A) | 24 V | View |
| LWCD-120560MN-06 | 1,350 m³/h | 100 Pa | 1,350 rpm | 110 W | 57 dB(A) | 24 V | View |
| LWCD-120680MN-06 | 1,600 m³/h | 122 Pa | 1,350 rpm | 123 W | 58 dB(A) | 24 V | View |
| LWCD-120780MN-06 | 1,900 m³/h | 140 Pa | 1,350 rpm | 144 W | 60 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
