Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

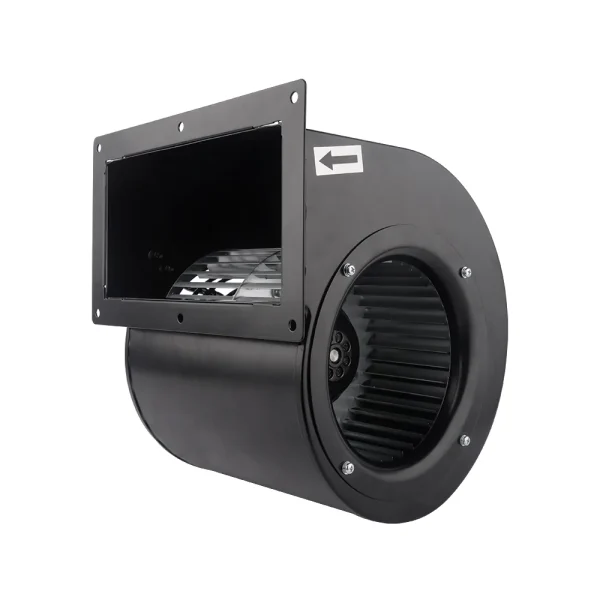

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ133 mm5.2 in
- Max airflow505 m³/h297 CFM
- Max static pressure402 Pa1.61 in. wg
- Voltage230 V
- Speed1,050 rpm
- Input power135 W
- Noise60 dB(A)
LWFA2E133-092DS-02 AC Dual Inlet Forward Centrifugal Blower Ø133 mm
Ø133 mm | AC | Max airflow 505 m³/h | Max static pressure 402 Pa | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 7
All files for LWFA2E133-092DS-025 files · direct download
PDFFull product catalogue · model on PDF p. 7WEBPDimensional drawingWEBPPerformance curvePDFSeries catalogue
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com
Typical applications: Range hoods · Air heaters · Fan coil units · Appliances — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWFA2E133-092DS-02
PDFDatasheetPDFFull product catalogue · AC AC Dual Inlet Forward Centrifugal Blower · model on PDF p. 7 · 11.5 MBSeries catalogue
PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MBCovers the whole series, not only this model.
Need a non-standard size or another format? Ask an engineer or search the download center.
LWFA2E133-092DS-02 is a LONGWELL AC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V AC, maximum airflow 505 m³/h, maximum static pressure 402 Pa, noise 60 dB(A), input power 135 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA2E133-092DS-02 |
|---|---|
| Series | LWFA2E133 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 60 Hz |
| Current | 0.62 A |
| Input power | 135 W |
| Speed | 1,050 rpm |
| Max. airflow | 505 m³/h |
| Max. static pressure | 402 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 92 mm |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA2E133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø133 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA2E133-092DS-02 this model | 505 m³/h | 402 Pa | 1,050 rpm | 135 W | 60 dB(A) | 230 V | |
| LWBA2E133-072NS-02 | 225 m³/h | 184 Pa | 2,720 rpm | 27.8 W | 57.9 dB(A) | 230 V | View |
| LWBA2E133-072NS-01 | 245 m³/h | 242 Pa | 3,070 rpm | 32.2 W | 58.7 dB(A) | 230 V | View |
| LWFA2E133-092NS-02 | 278 m³/h | 464 Pa | 2,350 rpm | 95 W | 63 dB(A) | 230 V | View |
| LWFA2E133-092SS-02 | 278 m³/h | 464 Pa | 1,750 rpm | 95 W | 63 dB(A) | 230 V | View |
| LWFA2E133-092NS-01 | 299 m³/h | 361 Pa | 2,300 rpm | 83 W | 61 dB(A) | 230 V | View |
| LWFA2E133-092SS-01 | 299 m³/h | 361 Pa | 1,850 rpm | 83 W | 61 dB(A) | 230 V | View |
| LWFA2E133-092SS-03 | 319 m³/h | 433 Pa | 1,600 rpm | 85 W | 56 dB(A) | 230 V | View |
| LWFA2E133-092DS-07 | 330 m³/h | 309 Pa | 1,450 rpm | 70 W | 40 dB(A) | 230 V | View |
| LWFA4E133-092DS-09 | 556.2 m³/h | 144.2 Pa | 1,150 rpm | 75 W | 51 dB(A) | 230 V | View |
| LWFA4E133-092DS-04 | 567 m³/h | 433 Pa | 1,250 rpm | 190 W | 69 dB(A) | 230 V | View |
| LWFA2E133-092DS-08 | 726.15 m³/h | 381.1 Pa | 1,500 rpm | 190 W | 60 dB(A) | 230 V | View |
| LWFA2E133-092DS-10 | 773 m³/h | 433 Pa | 1,200 rpm | 250 W | 58 dB(A) | 230 V | View |
| LWFA2E133-092DS-06 | 886 m³/h | 639 Pa | 1,300 rpm | 265 W | 69 dB(A) | 230 V | View |
| LWFA2E133-092DS-05 | 927 m³/h | 494 Pa | 1,350 rpm | 250 W | 69 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
