DC Centrifugal Blower performance curve (shared by several models)

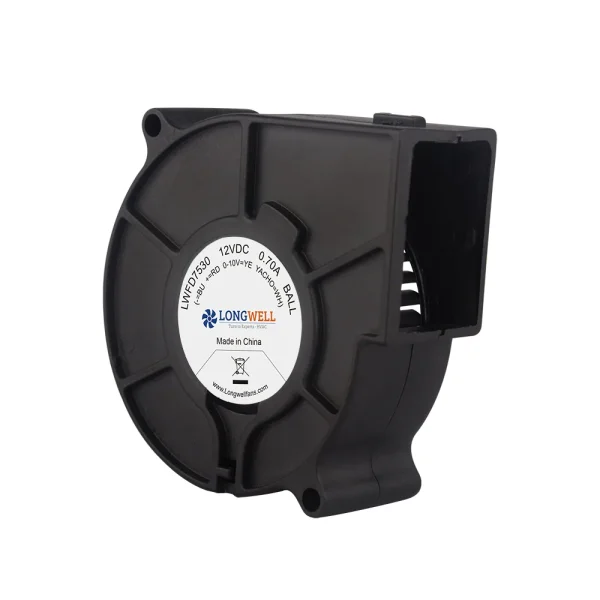

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size75 mm3.0 in
Max airflow24 m³/h14 CFM
Max static pressure242 Pa0.97 in. wg
Voltage24 V
Speed4,000 rpm
Input power8.4 W
Noise48 dB(A)

LWFD7530MH-02 DC Centrifugal Blower 75 mm

75 mm | DC | Max airflow 24 m³/h | Max static pressure 242 Pa | 48 dB(A)

SKU: LWFD7530MH-02 Categories: Cooling Fans & Blowers, DC Centrifugal Blowers, Frame Ø75–120 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWFD7530MH-022 files · direct download

WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Aspirating smoke detection Medical electronics Fuel cells Dishwashers All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWFD7530MH-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFD7530MH-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFD7530MH-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWFD7530MH-02

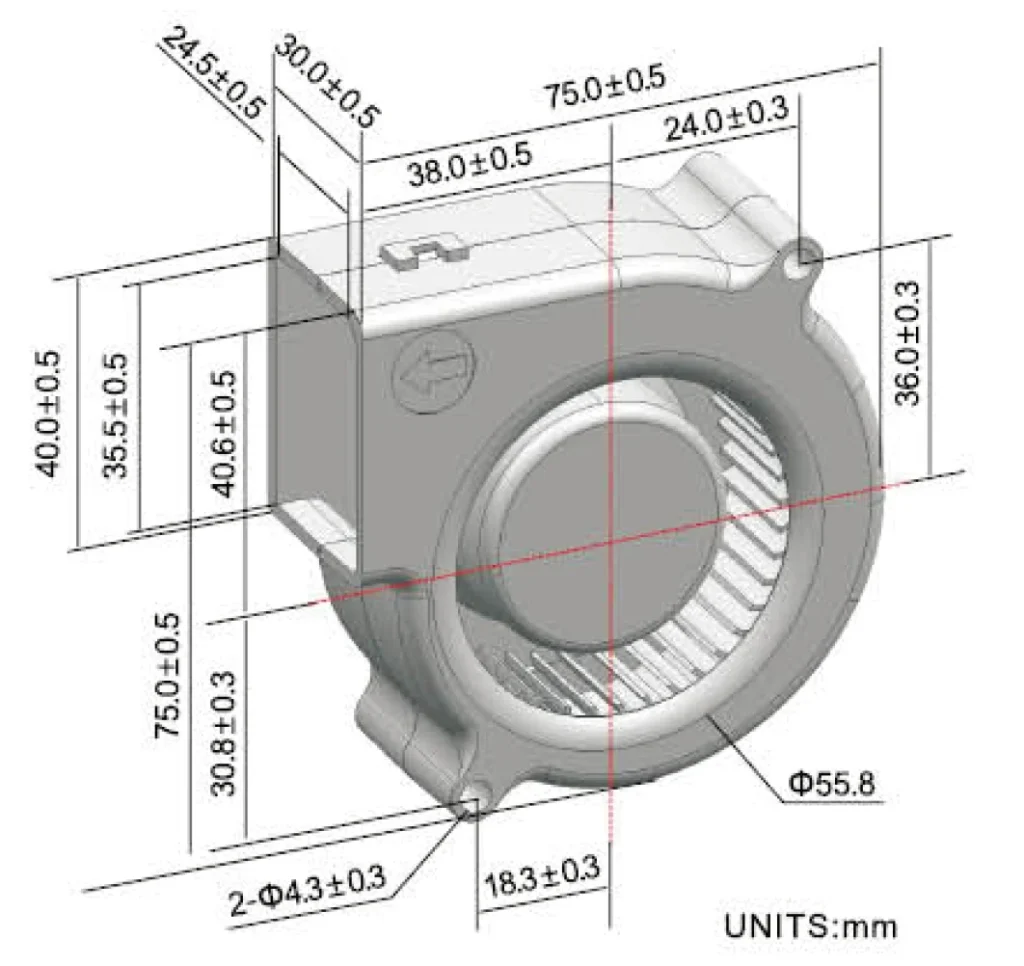

LWFD7530MH-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWFD7530MH-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFD7530MH-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFD7530MH-02

LWFD7530MH-02 is a LONGWELL DC Centrifugal Blower from the DC Centrifugal Blowers range, frame size 75 mm, rated 24 V DC, maximum airflow 24 m³/h, maximum static pressure 242 Pa, noise 48 dB(A), input power 8.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD7530MH-02
Series	LWFD7530
Motor type	DC
Rated voltage	24 V
Current	0.35 A
Input power	8.4 W
Speed	4,000 rpm
Max. airflow	24 m³/h
Max. static pressure	242 Pa
Noise	48 dB(A)
Frame size	75 mm
Dimensions	75x30mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWFD7530: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
