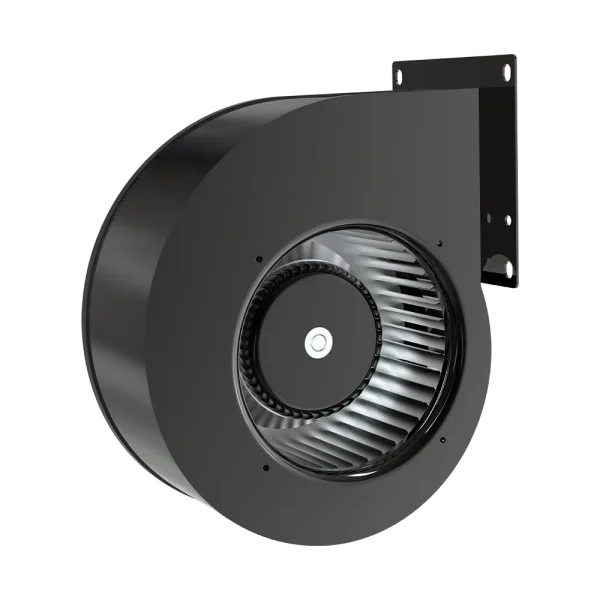

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ150 mm5.9 in
- Max airflow577 m³/h339 CFM
- Max static pressure412 Pa1.65 in. wg
- Voltage230 V
- Speed2,550 rpm
- Input power150 W
- Noise72 dB(A)
LWFE3G150-092SS-01 EC Single Inlet Forward Centrifugal Blower Ø150 mm
Ø150 mm | EC | Max airflow 577 m³/h | Max static pressure 412 Pa | 72 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

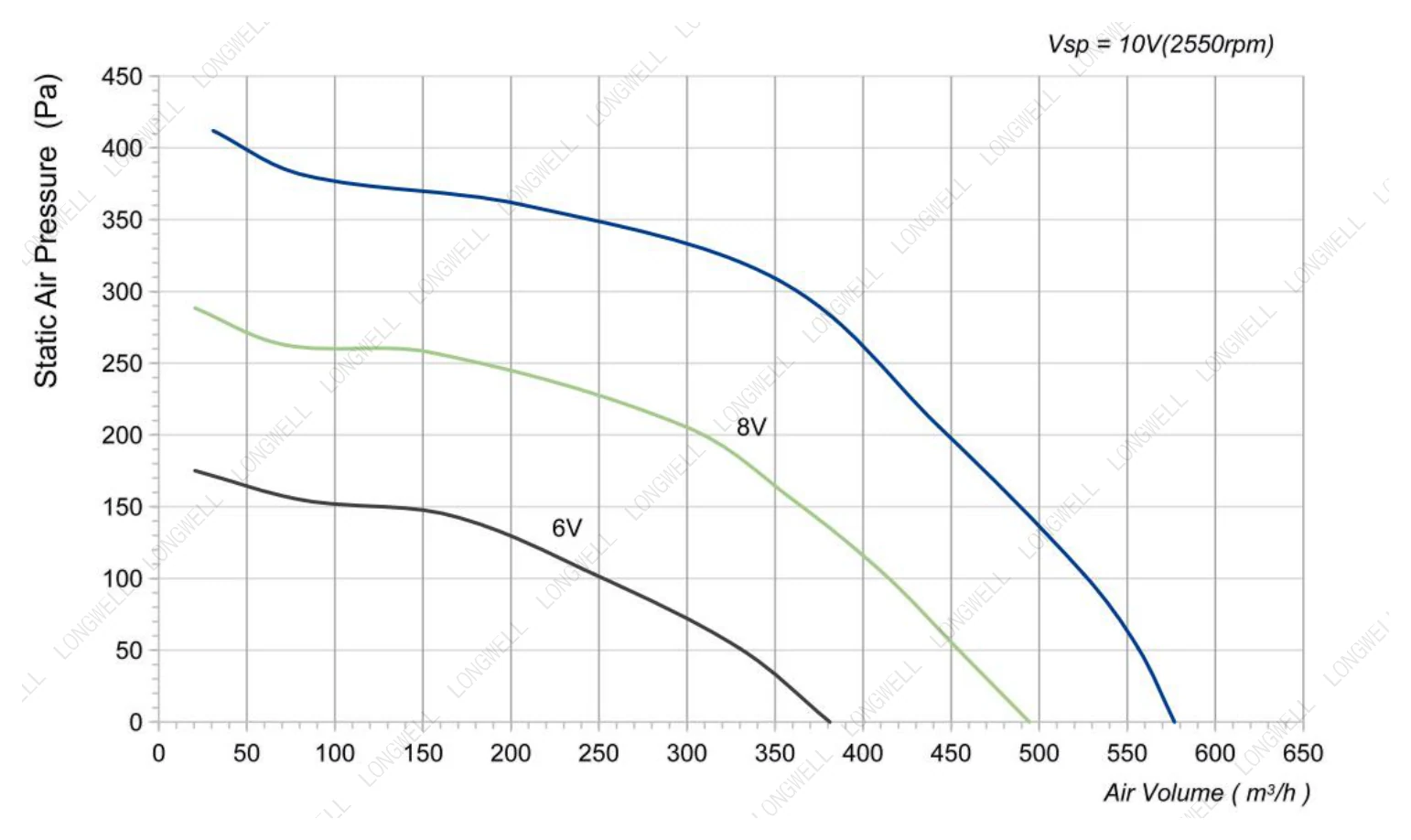

Performance curve (P-Q) LWFE3G150-092SS-01
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWFE3G150-092SS-01
LWFE3G150-092SS-01 — construction, airflow path and running condition.
LWFE3G150 Series EC Forward Curved Centrifugal Fan: Smart & Efficient | LWFE3G150-092SS-01 · open in video library

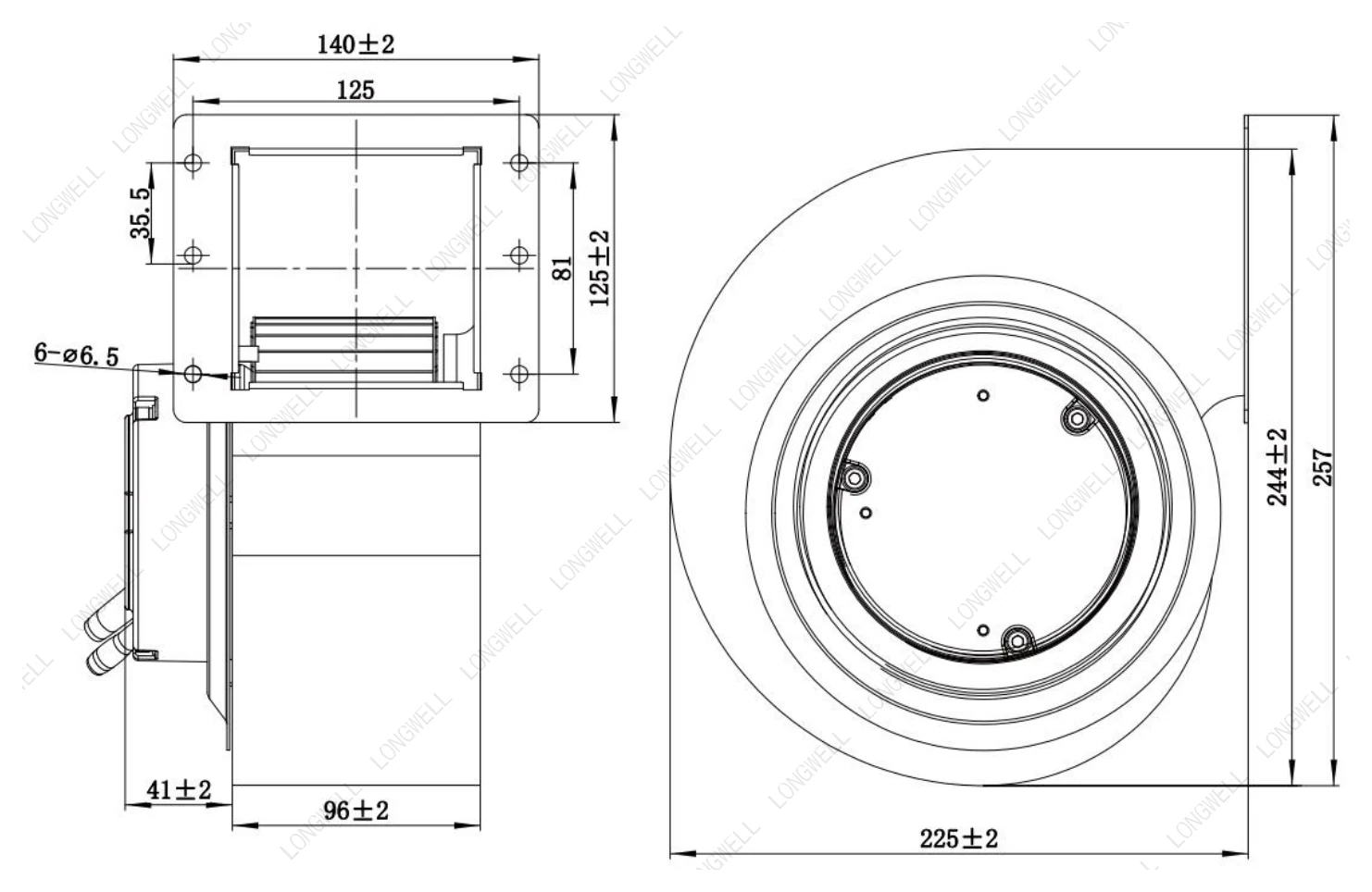

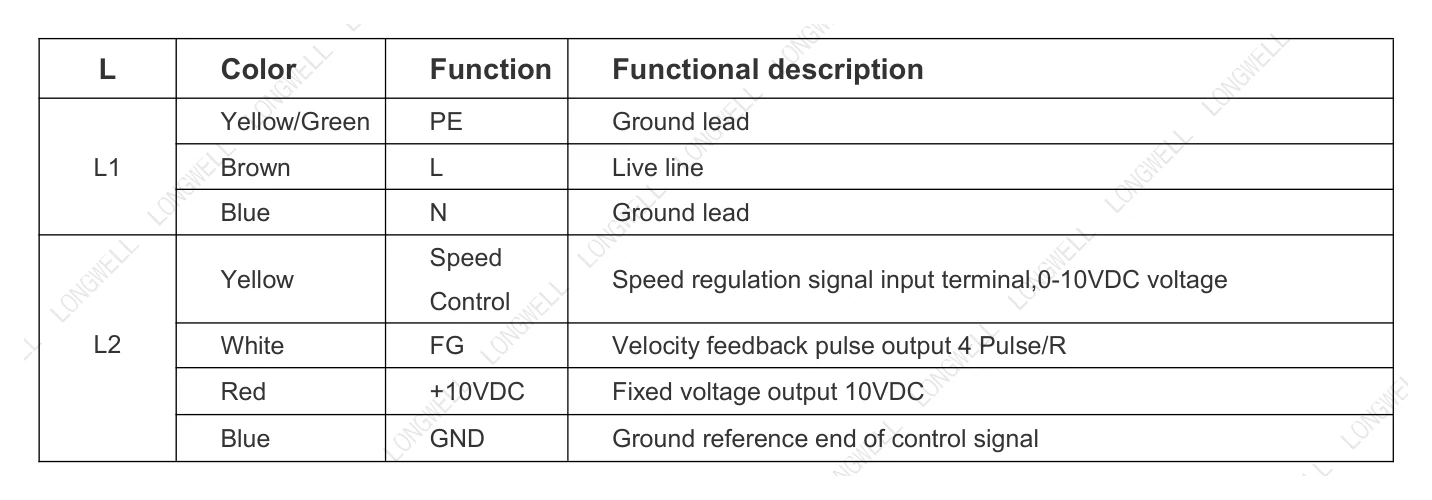

Drawing, Curve & Wiring LWFE3G150-092SS-01
Files for LWFE3G150-092SS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFE3G150-092SS-01
LWFE3G150-092SS-01 is a LONGWELL EC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø150 mm, rated 230 V EC, maximum airflow 577 m³/h, maximum static pressure 412 Pa, noise 72 dB(A), input power 150 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G150-092SS-01 |
|---|---|
| Series | LWFE3G150 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.4 A |
| Input power | 150 W |
| Speed | 2,550 rpm |
| Max. airflow | 577 m³/h |
| Max. airflow (CFM) | 339 CFM |
| Max. static pressure | 412 Pa |
| Noise | 72 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -30 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø150 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Product-line certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO management-system certificate and the certificates whose model list covers this model. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateETLIntertek Authorization to Mark, control no. 5022563; the covered model ranges are stated on the document.
PDFETL Authorization to Mark · report 220400508HAN-001 · LWBE3G / LWDE3G / LWFE3GNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
