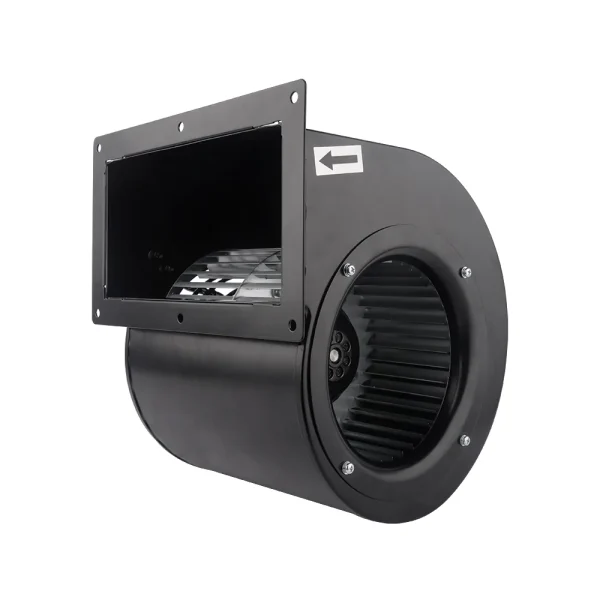

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ133 mm5.2 in
Max airflow567 m³/h334 CFM
Max static pressure433 Pa1.74 in. wg
Voltage230 V
Speed1,250 rpm
Input power190 W
Noise69 dB(A)

LWFA4E133-092DS-04 AC Dual Inlet Forward Centrifugal Blower Ø133 mm

Ø133 mm | AC | Max airflow 567 m³/h | Max static pressure 433 Pa | 69 dB(A)

SKU: LWFA4E133-092DS-04 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø120–146 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 7

All files for LWFA4E133-092DS-046 files · direct download

PDFFull product catalogue · model on PDF p. 7 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFA4E133-092DS-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA4E133-092DS-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFA4E133-092DS-04

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFA4E133-092DS-04

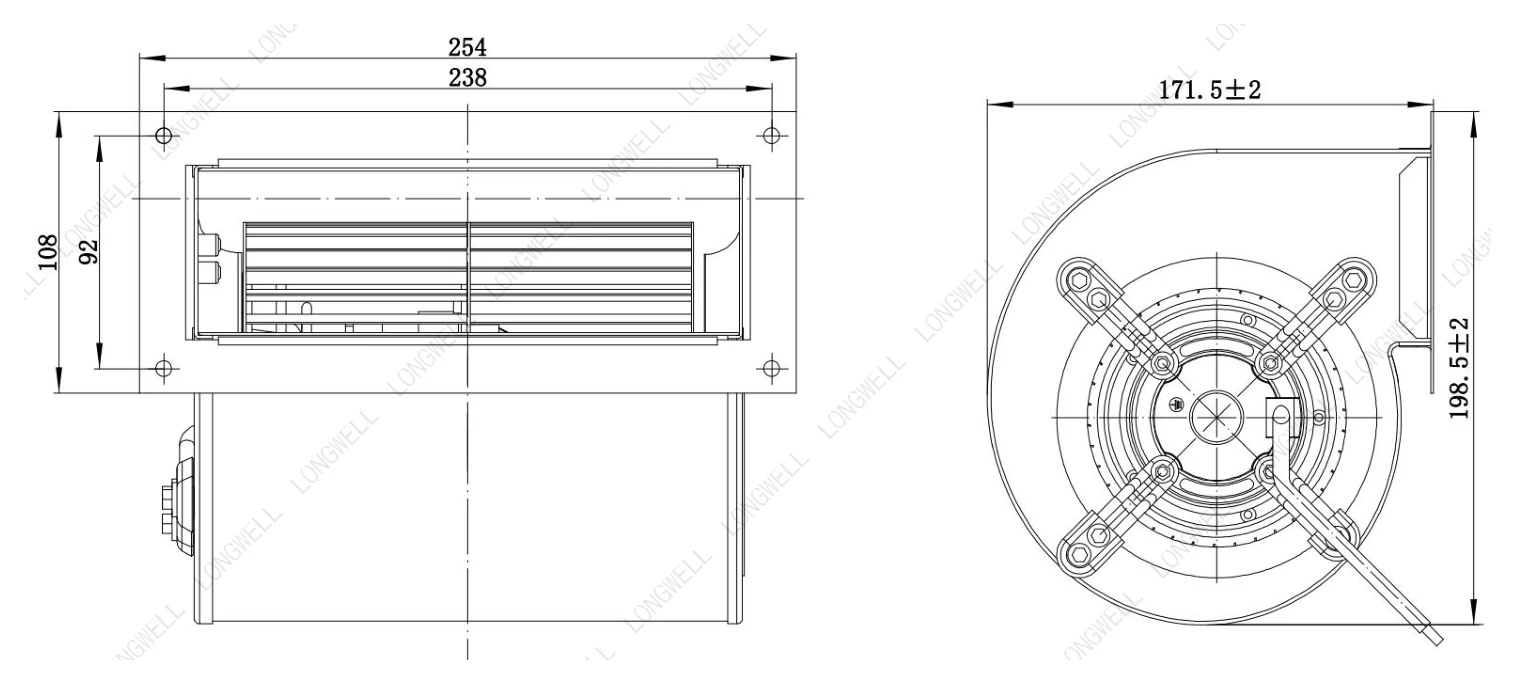

LWFA4E133-092DS-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

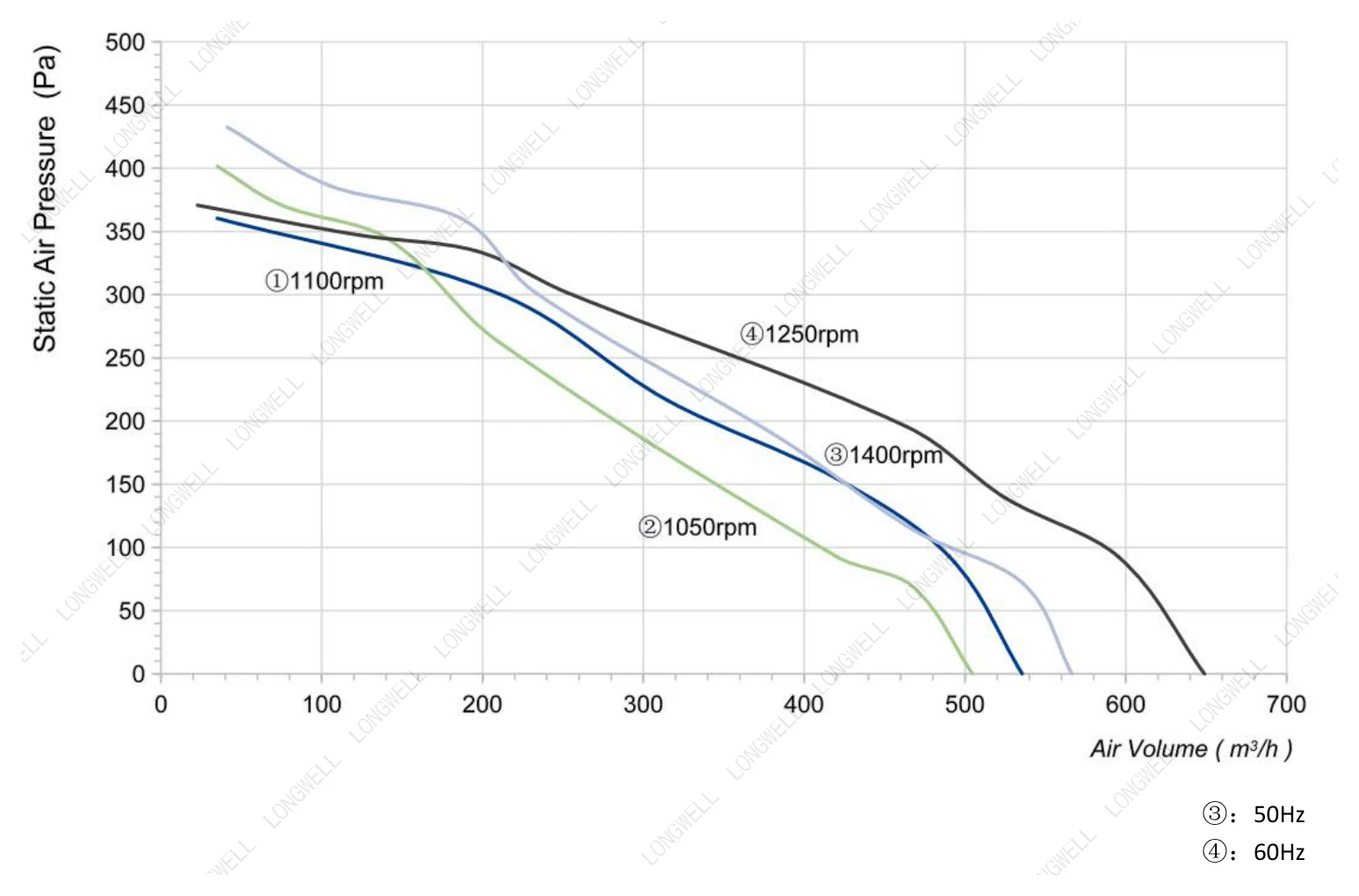

LWFA4E133-092DS-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

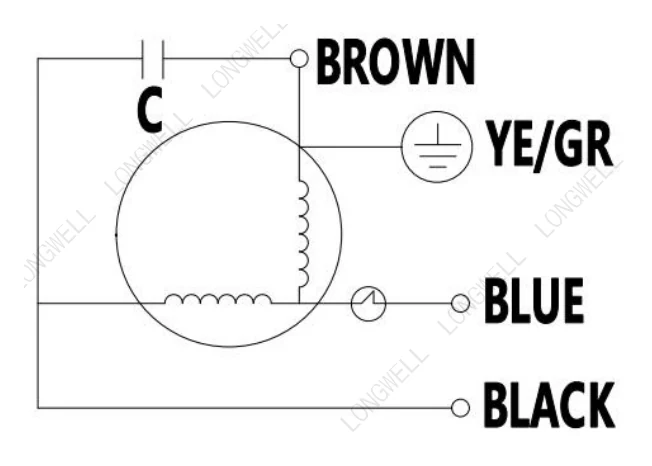

LWFA4E133-092DS-04 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFA4E133-092DS-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA4E133-092DS-04

LWFA4E133-092DS-04 is a LONGWELL AC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V AC, maximum airflow 567 m³/h, maximum static pressure 433 Pa, noise 69 dB(A), input power 190 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4E133-092DS-04
Series	LWFA4E133
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Voltage range	198-242
Frequency	60 Hz
Current	0.86 A
Input power	190 W
Speed	1,250 rpm
Max. airflow	567 m³/h
Max. static pressure	433 Pa
Noise	69 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-30 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø133 mm
Rotor diameter	92 mm
Impeller material	Galvanised sheet steel ( Impeller )
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 20 °Croom, humidity 15%~65%RH

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4E133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
