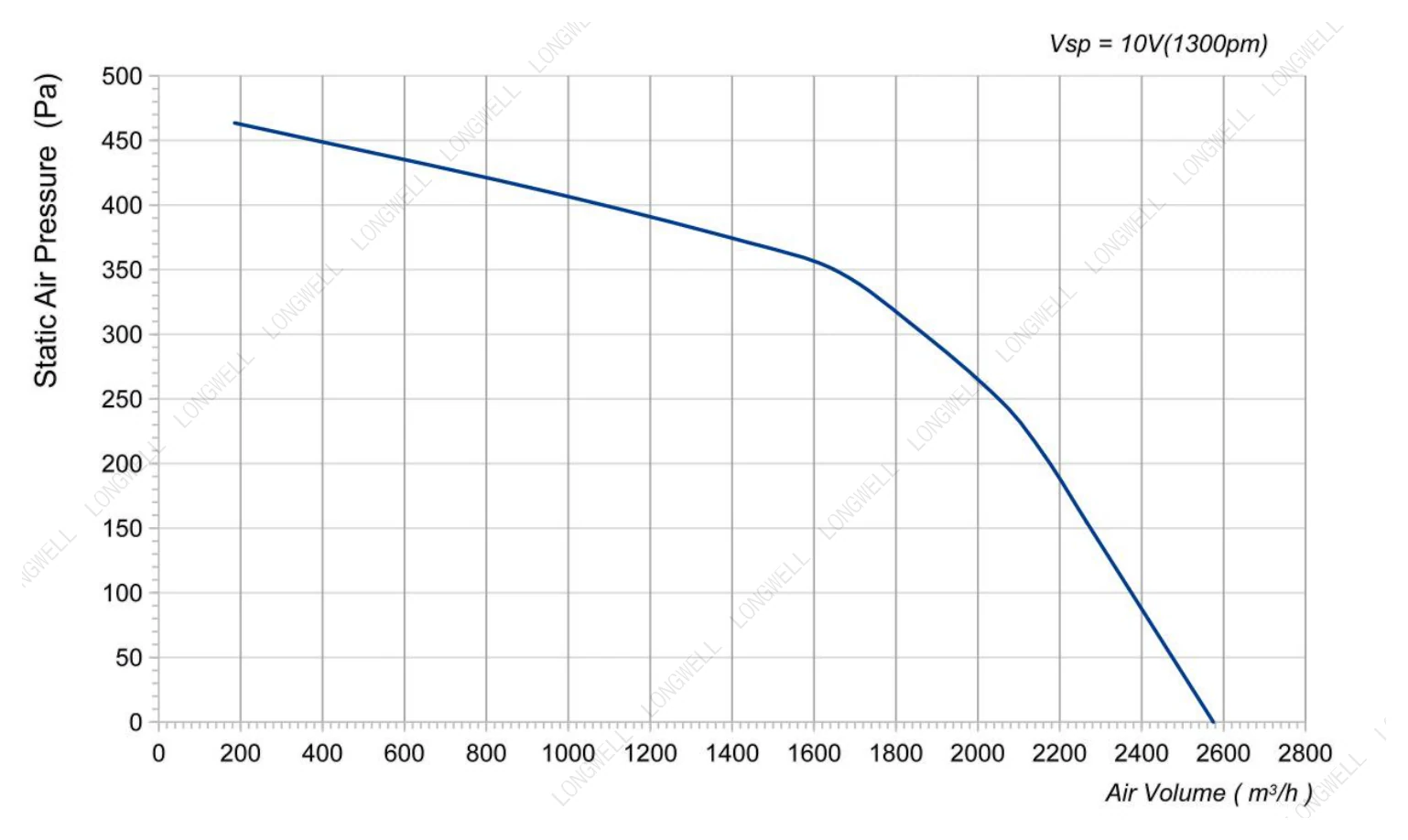

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ200 mm
- Max airflow2,575 m³/h
- Max static pressure464 Pa
- Voltage230 V
- Speed1,300 rpm
- Input power390 W
- Noise66 dB(A)
LWFE3G200-102DS-02 EC Dual Inlet Forward Centrifugal Blower Ø200 mm
Ø200 mm | EC | Max airflow 2,575 m³/h | Max static pressure 464 Pa | 66 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWFE3G200-102DS-02 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø200 mm, rated 230 V EC, maximum airflow 2,575 m³/h, maximum static pressure 464 Pa, noise 66 dB(A), input power 390 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G200-102DS-02 |
|---|---|
| Series | LWFE3G200 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.55 A |
| Input power | 390 W |
| Speed | 1,300 rpm |
| Max. airflow | 2,575 m³/h |
| Max. airflow (CFM) | 1,515 CFM |
| Max. static pressure | 464 Pa |
| Noise | 66 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Rotor diameter | 102 |
| Impeller material | Metal ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G200-102DS-02 this model | 2,575 m³/h | 464 Pa | 1,300 rpm | 390 W | 66 dB(A) | 230 V | |
| LWAE20060SL-03 | 303.51 m³/h | 62.92 Pa | 1,600 rpm | — | 49.8 dB(A) | 220 V | View |
| LWAE20060SM-02 | 380.73 m³/h | 96.14 Pa | 2,100 rpm | — | 56.4 dB(A) | 220 V | View |
| LWAE20060SH-01 | 474.97 m³/h | 143.08 Pa | 2,600 rpm | — | 61.7 dB(A) | 220 V | View |
| LWDE-200 (8")U-MWN-01 | 700 m³/h | see curve | 3,300 rpm | 140 W | 61 dB(A) | 110-120 V | View |
| LWDE-200 (8")U-MWN-03 | 700 m³/h | see curve | 3,300 rpm | 140 W | 59 dB(A) | 110-120 V | View |
| LWAE3G200ST-5PGW-06 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200SS-5PGW-05 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200ST-5PEW-04 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200SS-5PEW-03 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWDE-200S-MBN-09 | 1,210 m³/h | 1,030 Pa | 2,700 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWDE-200 (8")S-MWN-02 | 1,310 m³/h | see curve | 3,300 rpm | 140 W | 61 dB(A) | 220-240 V | View |
| LWDE-200 (8")S-MWN-04 | 1,310 m³/h | see curve | 3,300 rpm | 140 W | 59 dB(A) | 220-240 V | View |
| LWFE3G200-102SS-01 | 1,638 m³/h | 700 Pa | 1,800 rpm | 510 W | 73 dB(A) | 230 V | View |
| LWFE3G200-102DS-01 | 2,060 m³/h | 1,030 Pa | 1,150 rpm | 300 W | 64 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
