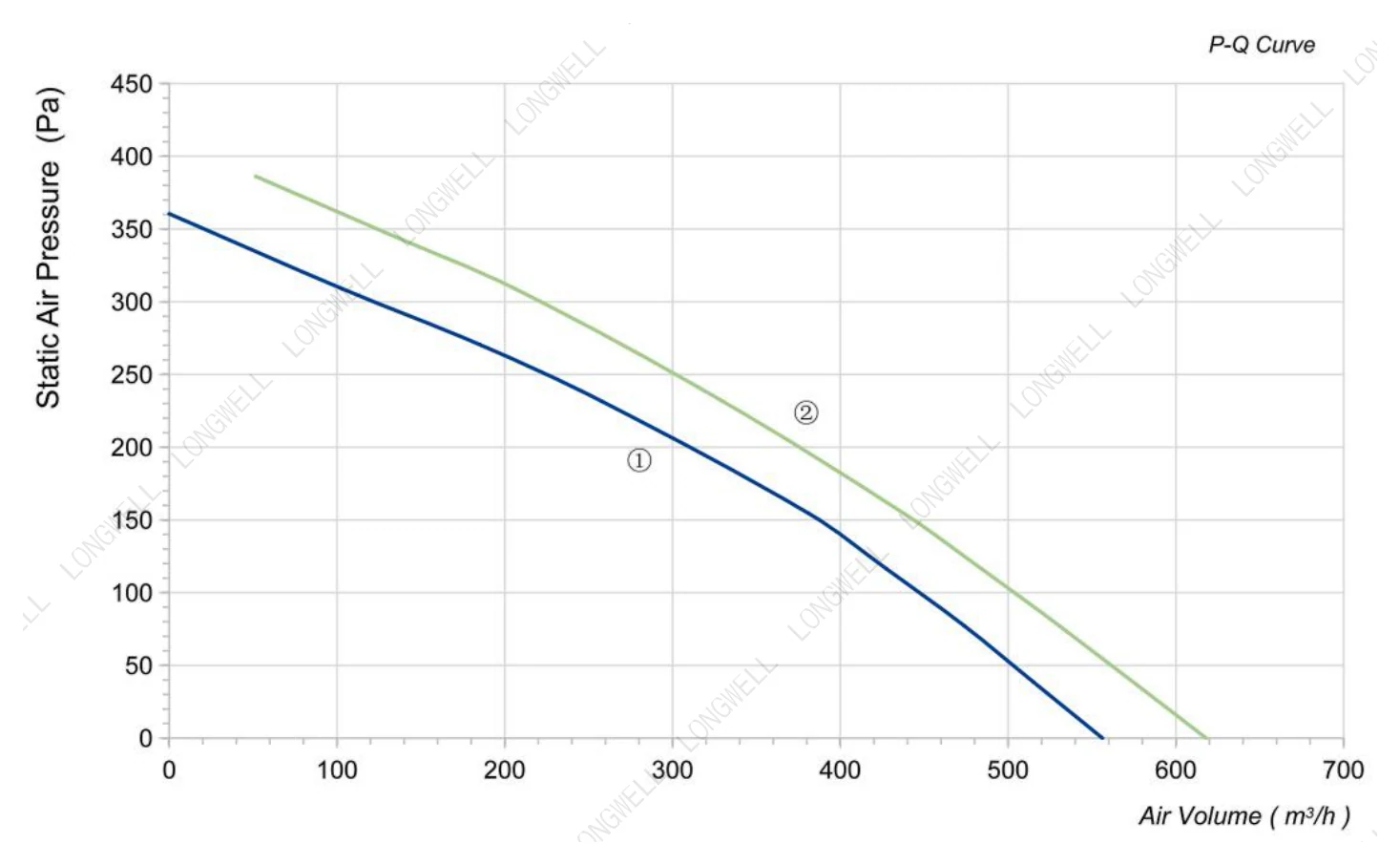

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ190 mm
- Max airflow536 m³/h
- Max static pressure504 Pa
- Voltage115 V
- Speed3,080 rpm
- Input power70 W
- Noise68.5 dB(A)
LWBA2E190-092NU-02 AC Backward Curved Centrifugal Fan Ø190 mm
Ø190 mm | AC | Max airflow 536 m³/h | Max static pressure 504 Pa | 68.5 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBA2E190-092NU-02

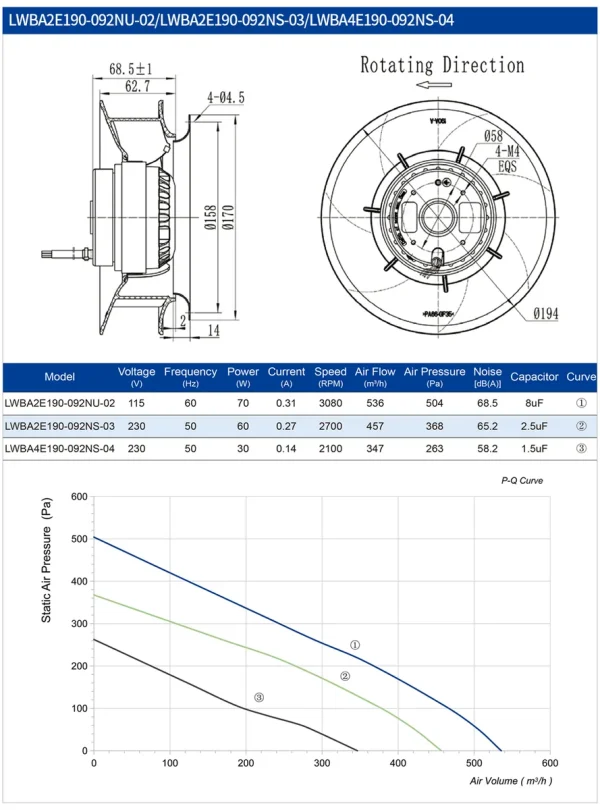

PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA2E190-092NU-02 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø190 mm, rated 115 V AC, maximum airflow 536 m³/h, maximum static pressure 504 Pa, noise 68.5 dB(A), input power 70 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

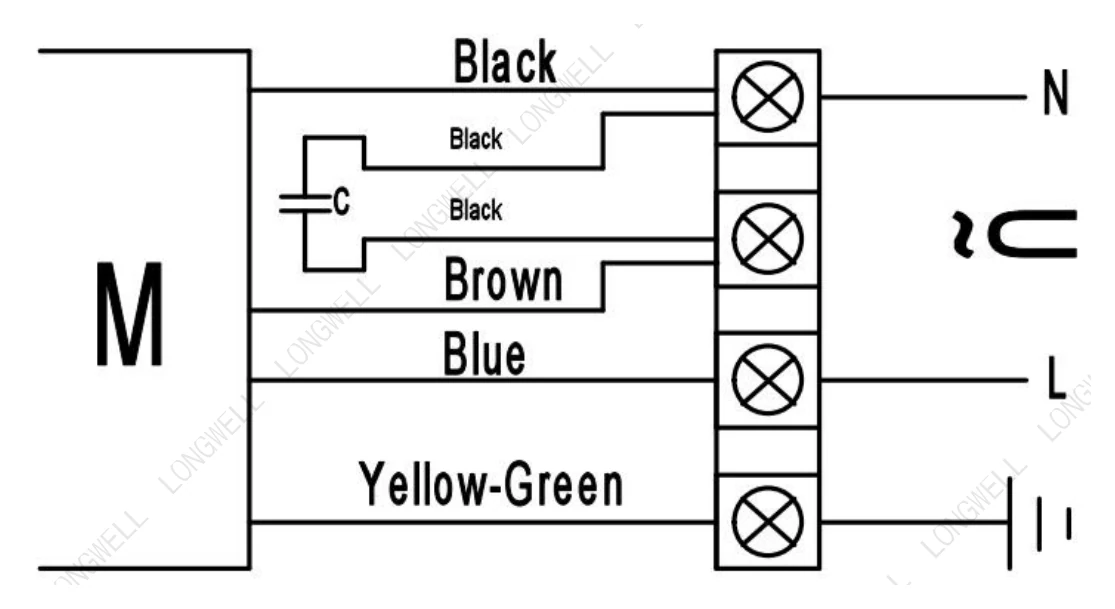

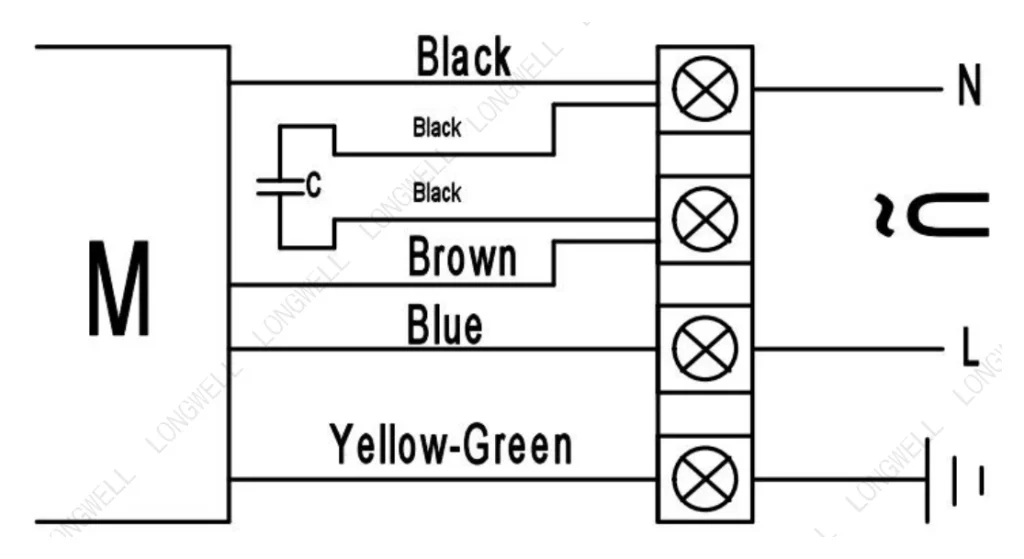

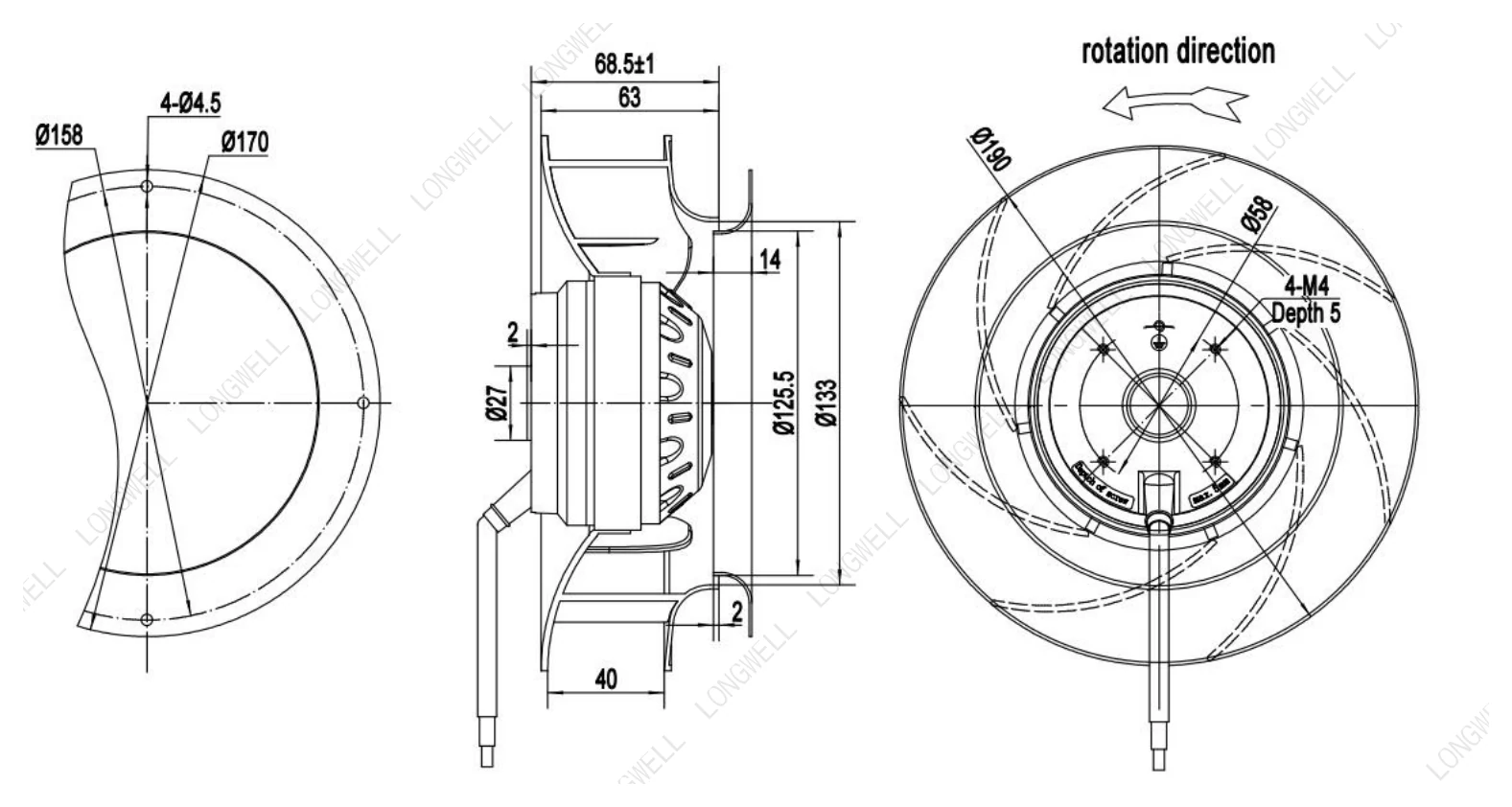

Technical data
| Model | LWBA2E190-092NU-02 |
|---|---|
| Series | LWBA2E190 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 115 V |
| Frequency | 60 Hz |
| Current | 0.31 A |
| Input power | 70 W |
| Speed | 3,080 rpm |
| Max. airflow | 536 m³/h |
| Max. static pressure | 504 Pa |
| Noise | 68.5 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø190 mm |
| Rotor diameter | 92 |
| Impeller material | Plastic PA66 |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2E190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø190 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA2E190-092NU-02 this model | 536 m³/h | 504 Pa | 3,080 rpm | 70 W | 68.5 dB(A) | 115 V | |
| LWBA4E190-092NS-04 | 347 m³/h | 263 Pa | 2,100 rpm | 30 W | 58.2 dB(A) | 230 V | View |
| LWBA2E190-092NS-03 | 457 m³/h | 368 Pa | 2,700 rpm | 60 W | 65.2 dB(A) | 230 V | View |
| LWBA2E190-072NS-01 | 483 m³/h | 357 Pa | 2,640 rpm | 56 W | 64.9 dB(A) | 230 V | View |
| LWBA4E190-092NS-07 | 494 m³/h | 350 Pa | 2,500 rpm | 60 W | 65 dB(A) | 230 V | View |
| LWBA4E190-092NS-05 | 556 m³/h | 361 Pa | 2,500 rpm | 60 W | 65 dB(A) | 230 V | View |
| LWBA4E190-092NS-06 | 618 m³/h | 386 Pa | 2,700 rpm | 76 W | 68 dB(A) | 230 V | View |
| LWA-200S(T)M-03E | 1,500 m³/h | 250 Pa | 2,800 rpm | 150 W | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
