- Max static pressure4,100 Pa
- Voltage230 V
- Speed10,000 rpm
- Input power210 W
LWGE148S-01 Gas Blower
Max static pressure 4,100 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWGE148S-01 is a LONGWELL Gas Blower from the Gas Blowers range, rated 230 V, maximum static pressure 4,100 Pa, input power 210 W.

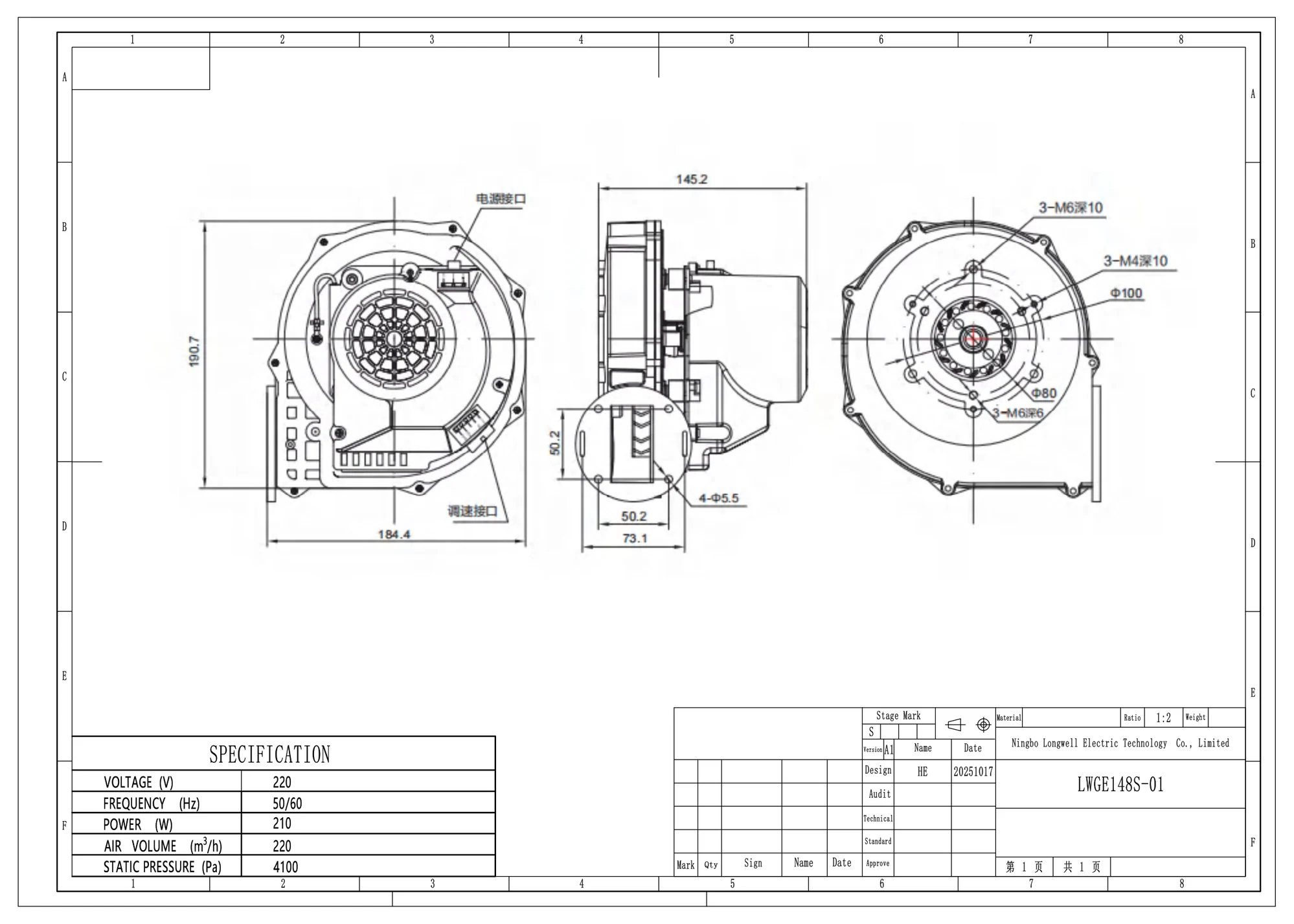

Technical data
| Model | LWGE148S-01 |
|---|---|
| Phase | 1-phase |
| Rated voltage | 230 V |
| Input power | 210 W |
| Speed | 10,000 rpm |
| Max. static pressure | 4,100 Pa |
Typical applications
- Condensing gas boilers
- Gas water heaters
- Premix burners
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
