Max airflow35,500 m³/h20,895 CFM

LWPVB-1270(50″)T Poultry Farm Fan

Max airflow 35,500 m³/h

SKU: LWPVB-1270(50")T Category: Poultry & Livestock Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWPVB-1270(50")T

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWPVB-1270(50")Tdrawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

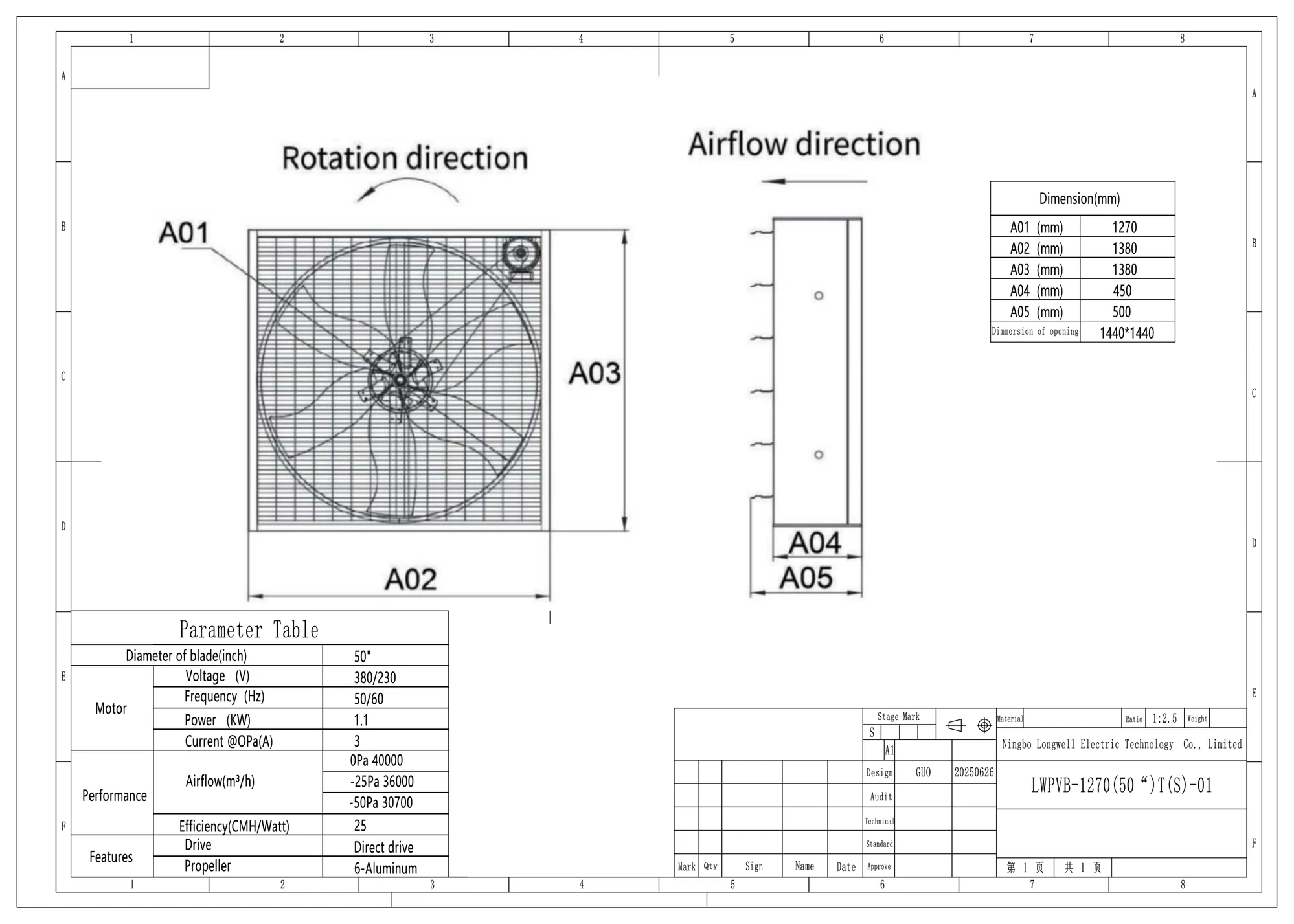

LWPVB-1270(50")T Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWPVB-1270(50")T

PDFDatasheet · 172 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWPVB-1270(50")T is a LONGWELL Poultry Farm Fan from the Poultry & Livestock Fans range, maximum airflow 35,500 m³/h.

Typical applications

Poultry houses
Dairy and pig barns
Greenhouses

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
