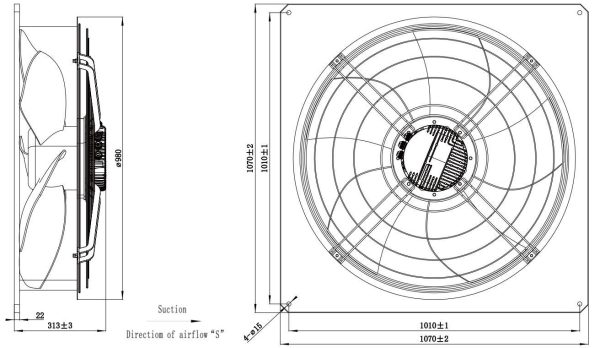

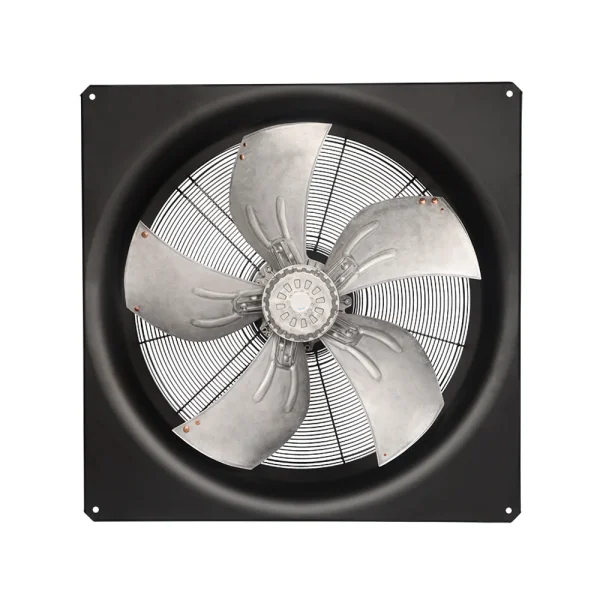

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ900 mm35.4 in
Max airflow32,313 m³/h19,019 CFM
Max static pressure365 Pa1.47 in. wg
Voltage380 V
Speed1,020 rpm
Input power2,785 W3.73 hp
Noise85 dB(A)

LWAE3G900TS-5MGW-01 EC Axial Fan Ø900 mm

Ø900 mm | EC | Max airflow 32,313 m³/h | Max static pressure 365 Pa | 85 dB(A)

SKU: LWAE3G900TS-5MGW-01 Categories: Axial Fans, EC Axial Fans, Impeller Ø500–900 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC EC Axial fans · SKU on PDF p. 35

All files for LWAE3G900TS-5MGW-015 files · direct download

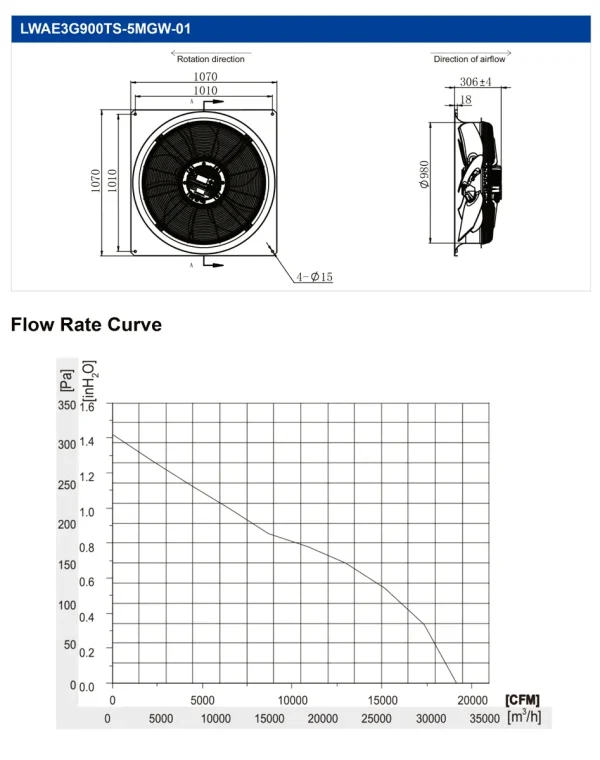

PDFFull product catalogue · model on PDF p. 35 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as Ziehl-Abegg FN091, ebm-papst W3G1250, ebm-papst W3G910, Ziehl-Abegg ZAvblue 1000 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Heat pumps Hybrid heat-pump systems Adiabatic cooling Process cooling All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STEP3D model (STEP)16.6 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWAE3G900TS-5MGW-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE3G900TS-5MGW-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

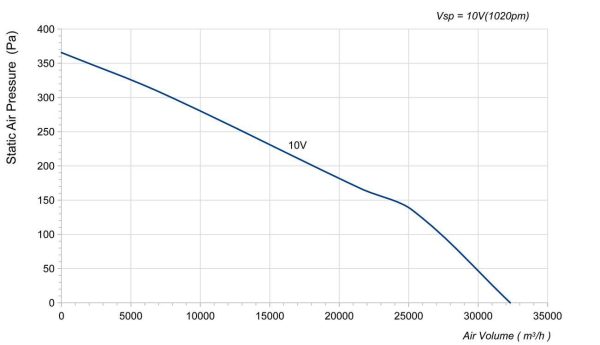

Performance curve (P-Q) LWAE3G900TS-5MGW-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWAE3G900TS-5MGW-01

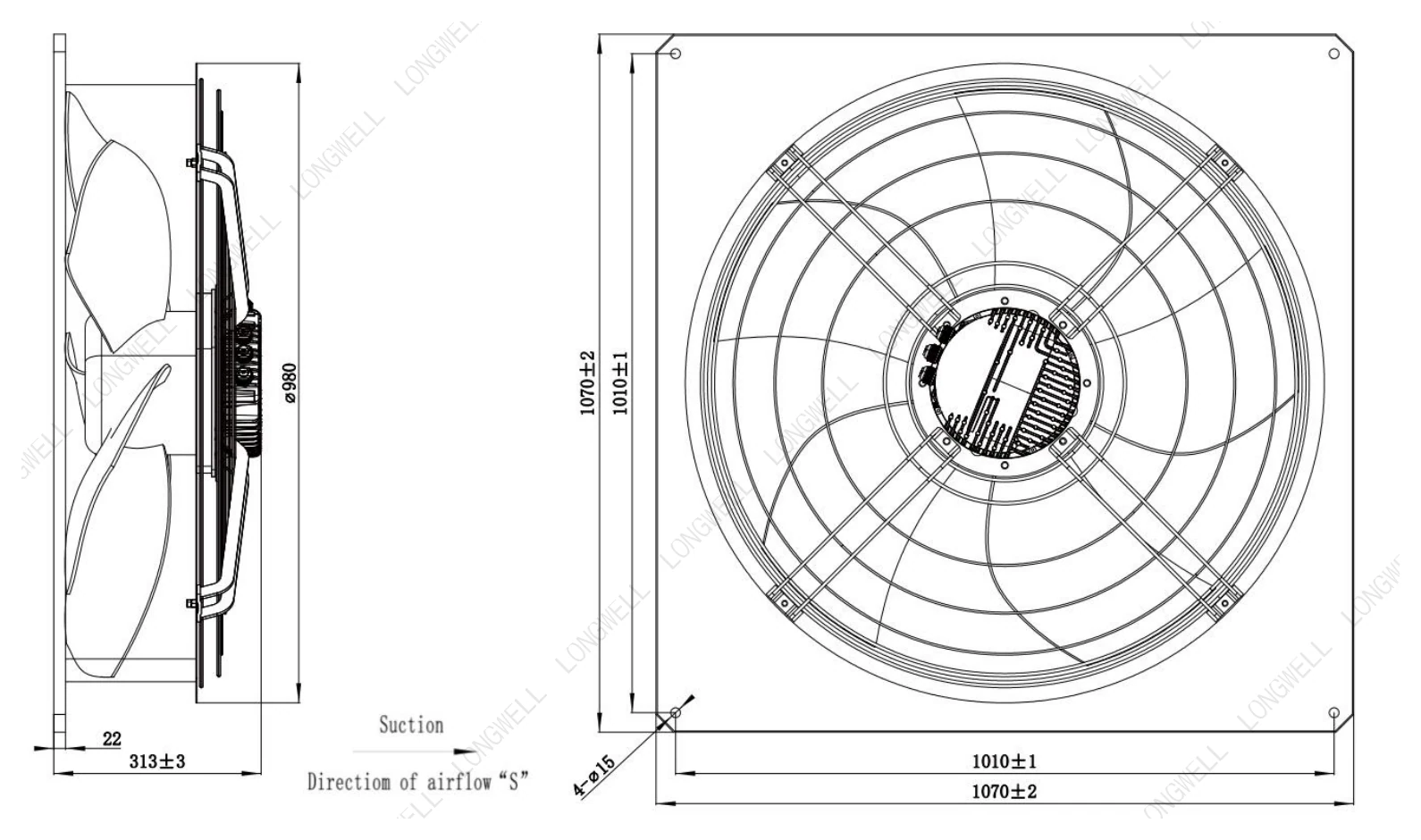

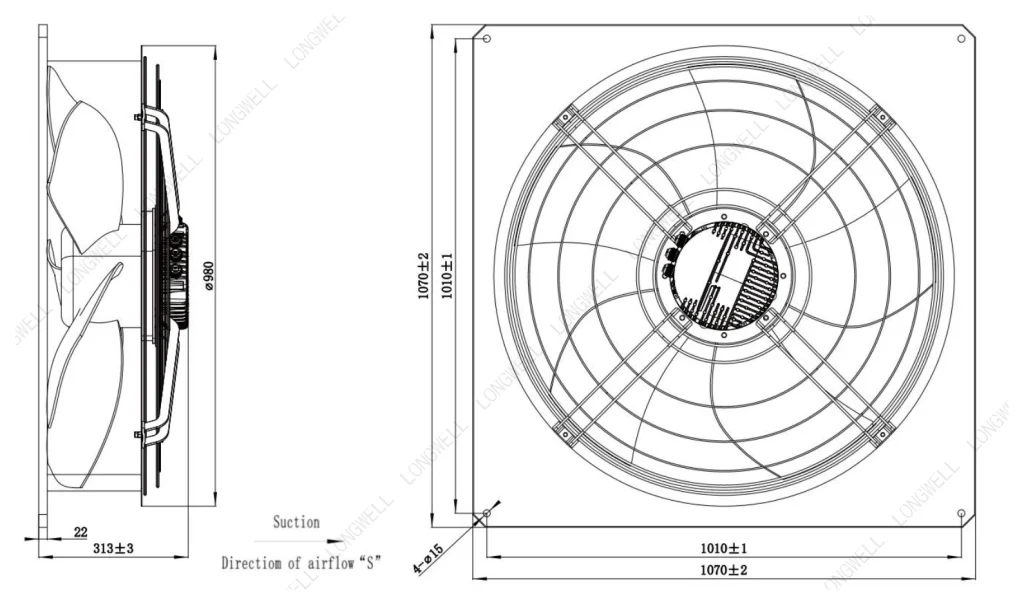

LWAE3G900TS-5MGW-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

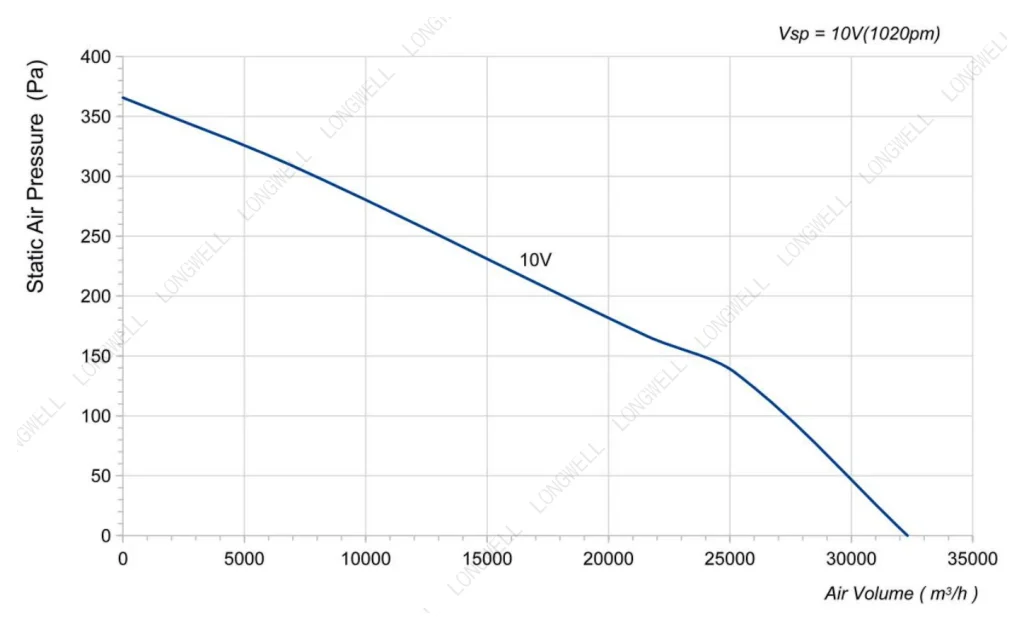

LWAE3G900TS-5MGW-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

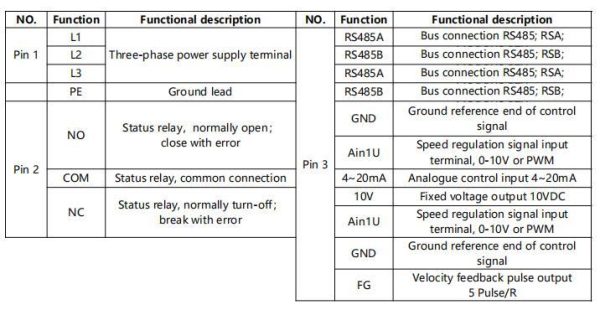

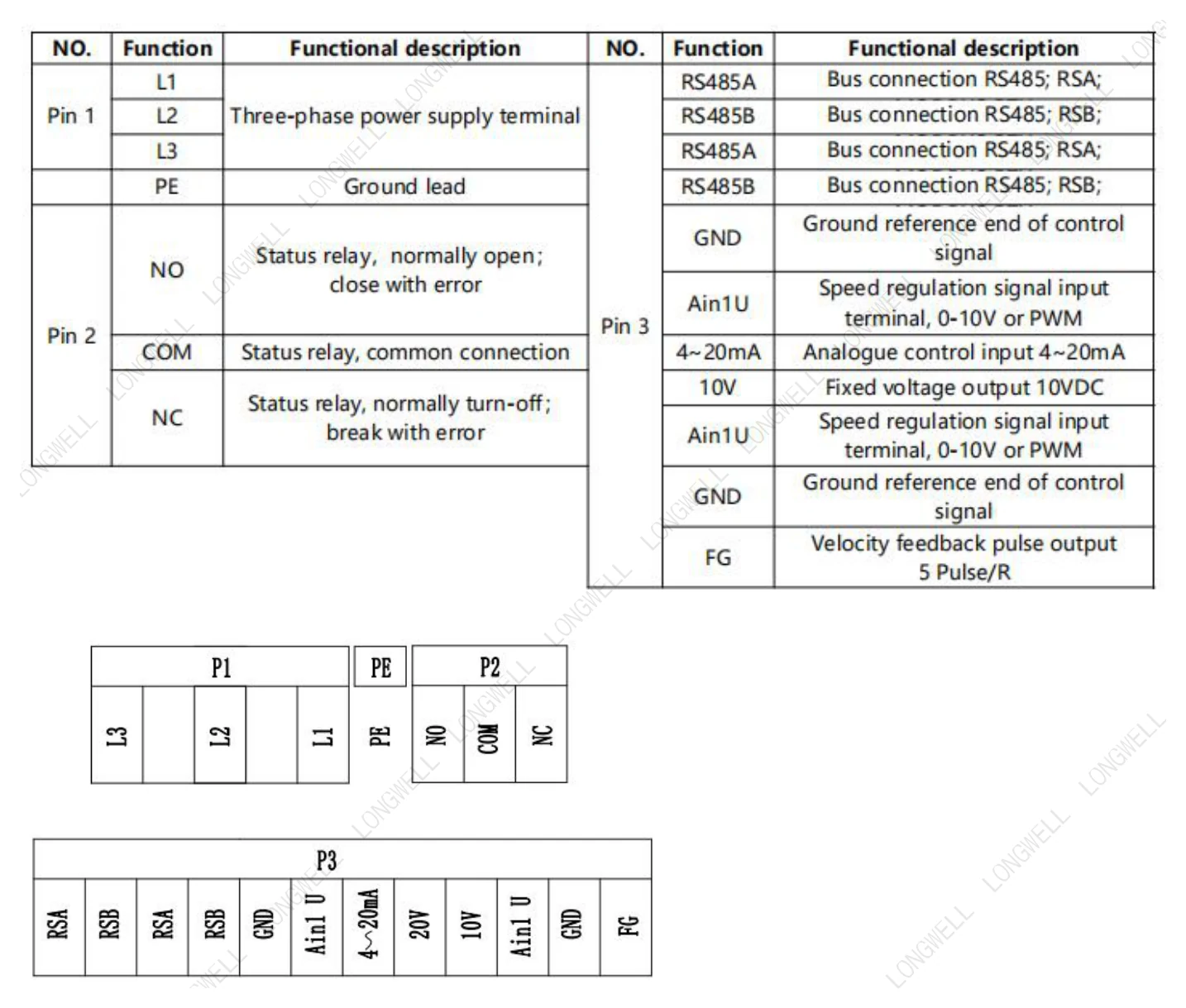

LWAE3G900TS-5MGW-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAE3G900TS-5MGW-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE3G900TS-5MGW-01

LWAE3G900TS-5MGW-01 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø900 mm, rated 380 V EC, maximum airflow 32,313 m³/h, maximum static pressure 365 Pa, noise 85 dB(A), input power 2,785 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G900TS-5MGW-01
Series	LWAE3G900
Motor type	EC
Phase	3-phase
Rated voltage	380 V
Voltage range	380 ~ 480 V
Frequency	50 Hz
Current	4.46 A
Input power	2,785 W
Speed	1,020 rpm
Max. airflow	32,313 m³/h
Max. static pressure	365 Pa
Noise	85 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø900 mm
Impeller material	aluminium alloy ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G900: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
