LWT-1125-01 product photo
  • Frame size49 mm
  • Max airflow4,100 m³/h
  • Max static pressure1,700 Pa
  • Voltage230 V
  • Input power1,125 W

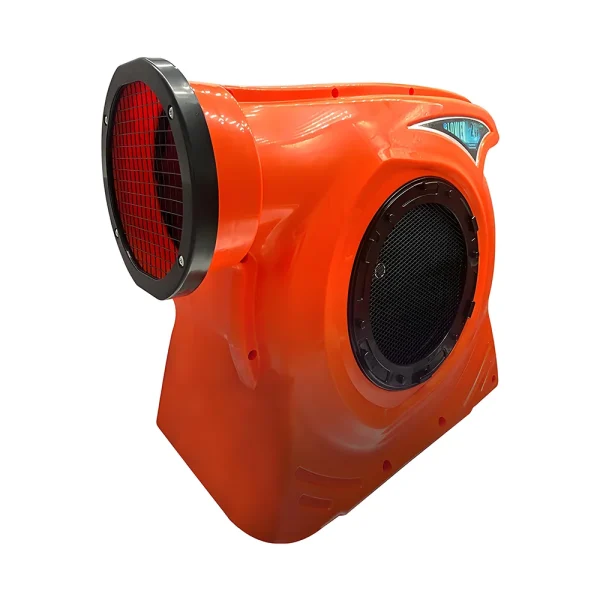

LWT-1125-01 Air Blower 49 mm

49 mm | AC | Max airflow 4,100 m³/h | Max static pressure 1,700 Pa

SKU: LWT-1125-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

LWT-1125-01 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 49 mm, rated 230 V AC, maximum airflow 4,100 m³/h, maximum static pressure 1,700 Pa, input power 1,125 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWT-1125-01
Motor type AC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Input power 1,125 W
Max. airflow 4,100 m³/h
Max. static pressure 1,700 Pa
Frame size 49 mm
Nominal size 180mm
Dimensions 49.5×30×45.3cm
Net weight 17.2kg
Gross weight 18.2kg

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (49 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWT-1125-01 this model 4,100 m³/h1,700 Pa —1,125 W—230 V
LWT-1125-02 4,100 m³/h1,700 Pa —1,125 W—120 V View
LWT-1500-02 4,300 m³/h1,900 Pa —1,500 W—120 V View
LWT-1500-01 4,300 m³/h1,900 Pa —1,500 W—230 V View
LWT-2250-02 4,800 m³/h2,200 Pa —2,250 W—120 V View
LWT-2250-01 4,800 m³/h2,200 Pa —2,250 W—230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
