Impeller Ø43–49 mm
  • Frame size49 mm
  • Max airflow4,800 m³/h
  • Max static pressure2,200 Pa
  • Voltage120 V
  • Input power2,250 W

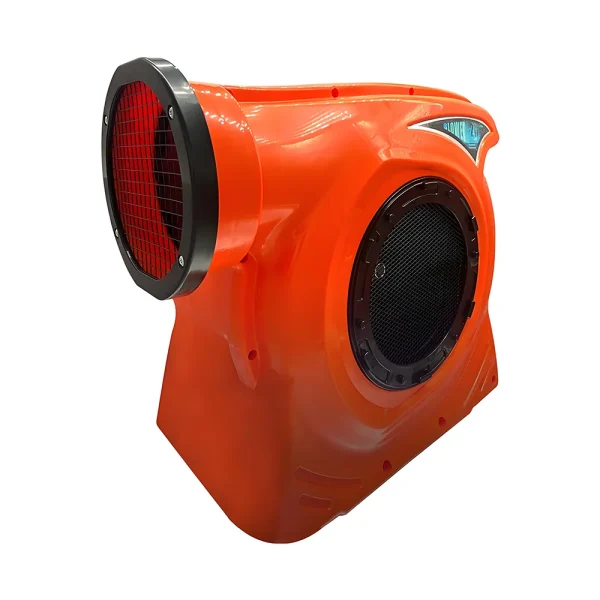

LWT-2250-02 Air Blower 49 mm

49 mm | AC | Max airflow 4,800 m³/h | Max static pressure 2,200 Pa

SKU: LWT-2250-02 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

LWT-2250-02 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 49 mm, rated 120 V AC, maximum airflow 4,800 m³/h, maximum static pressure 2,200 Pa, input power 2,250 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWT-2250-02
Motor type AC
Phase 1-phase
Rated voltage 120 V
Frequency 60 Hz
Input power 2,250 W
Max. airflow 4,800 m³/h
Max. static pressure 2,200 Pa
Frame size 49 mm
Nominal size 180mm
Dimensions 49.5×30×45.3cm
Net weight 21.4kg
Gross weight 22.4kg

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (49 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWT-2250-02 this model 4,800 m³/h2,200 Pa —2,250 W—120 V
LWT-1125-02 4,100 m³/h1,700 Pa —1,125 W—120 V View
LWT-1125-01 4,100 m³/h1,700 Pa —1,125 W—230 V View
LWT-1500-02 4,300 m³/h1,900 Pa —1,500 W—120 V View
LWT-1500-01 4,300 m³/h1,900 Pa —1,500 W—230 V View
LWT-2250-01 4,800 m³/h2,200 Pa —2,250 W—230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Adjacent sizesOne size up when airflow is short, one size down when it is too much

LWAD5010KH-02 product photoLWAD5010KH-0250 mm · 17.4 m³/h · 35 Pa · DCadjacent sizeLWAD5010LX-01 product photoLWAD5010LX-0150 mm · 20.4 m³/h · 47 Pa · DCadjacent sizeLWAD5010KD-05 product photoLWAD5010KD-0550 mm · 8.4 m³/h · 9 Pa · DCadjacent sizeLWAD5010KL-04 product photoLWAD5010KL-0450 mm · 11.4 m³/h · 15 Pa · DCadjacent sizeLWAD5010KM-03 product photoLWAD5010KM-0350 mm · 14.4 m³/h · 24 Pa · DCadjacent sizeLWAD5025KM-03 product photoLWAD5025KM-0350 mm · 29.4 m³/h · 54 Pa · DCadjacent size

Alternatives at a similar dutySimilar airflow, different construction or motor platform

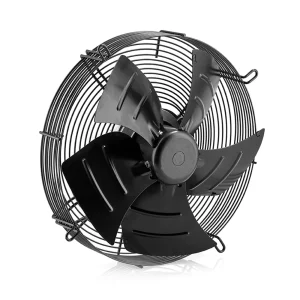

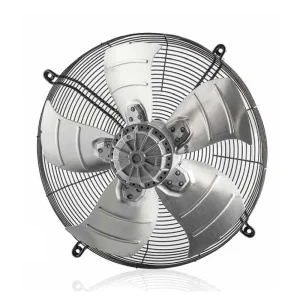

LWT-2250-01 product photoLWT-2250-0149 mm · 4,800 m³/h · 2,200 Pa · ACsimilar dutyLONGWELL product videoLWA-350S(T)M-05EØ340 mm · 4,840 m³/h · 550 Pa · ACsimilar duty变频电机冷却风机LW-G2504,860 m³/hsimilar dutyLW-G250T4,860 m³/hsimilar dutyLWAE3G400SS-5MEW-09 product photoLWAE3G400SS-5MEW-09Ø400 mm · 4,871 m³/h · 190 Pa · ECsimilar dutyLWAA4D400S-5MEB-16 product photoLWAA4D400S-5MEB-16Ø400 mm · 4,893 m³/h · ACsimilar duty
