Representative image of the series — the ratings of this model are given in the data table below.
- Max airflow300 m³/h177 CFM
- Voltage220 V
- Speed2,500 rpm
- Input power23 W
- Noise60 dB(A)
LW-G63 Motor Cooling Fan
Max airflow 300 m³/h | 60 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Technical description LW-G63
LW-G63 is a LONGWELL Motor Cooling Fan from the Motor Cooling Fans range, rated 220 V, maximum airflow 300 m³/h, noise 60 dB(A).
Technical data
| Model | LW-G63 |
|---|---|
| Phase | 1-phase |
| Rated voltage | 220 V |
| Current | 0.13 A |
| Input power | 23 W |
| Speed | 2,500 rpm |
| Max. airflow | 300 m³/h |
| Noise | 60 dB(A) |
Typical applications
- Variable-speed AC motors
- Traction and crane motors
- Motors under VFD control
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LW-G63
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

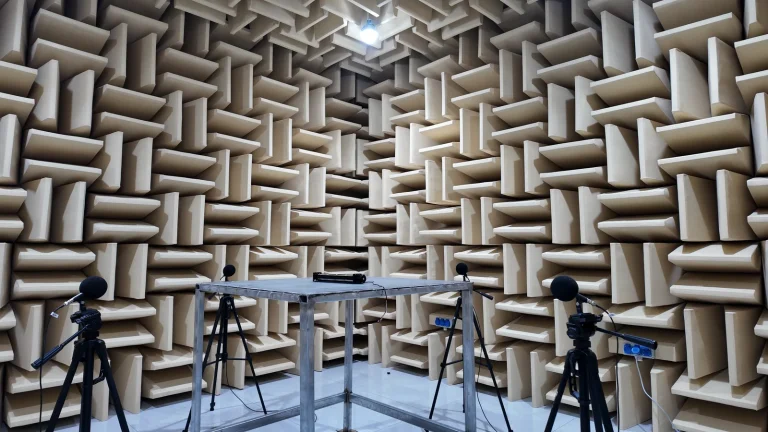

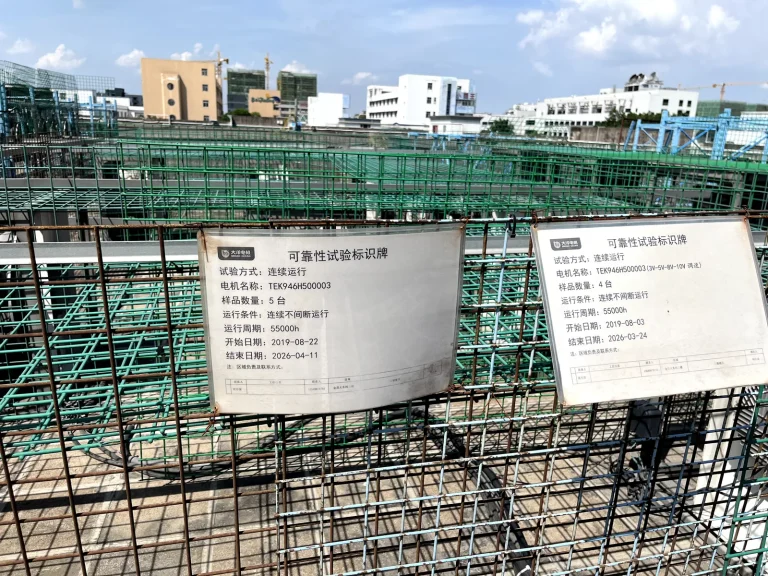

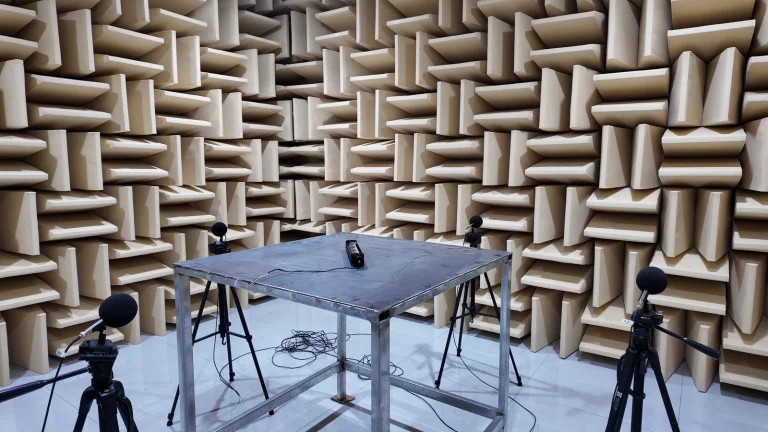

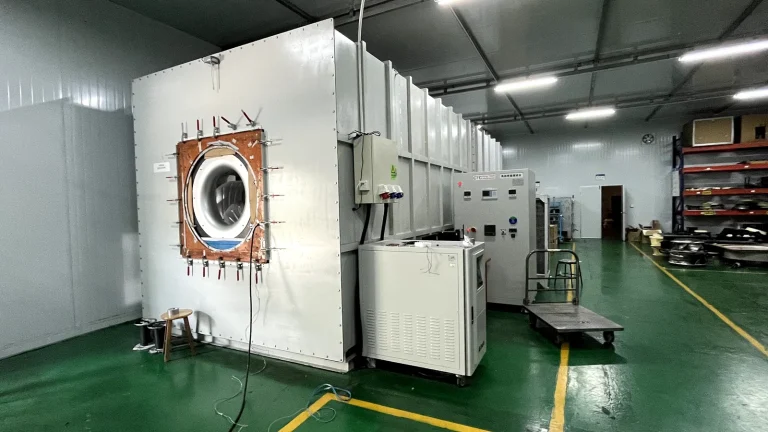

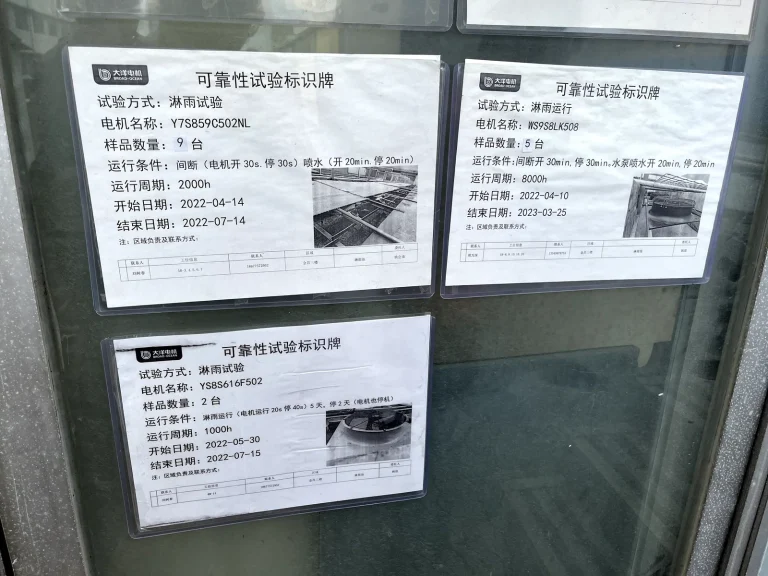

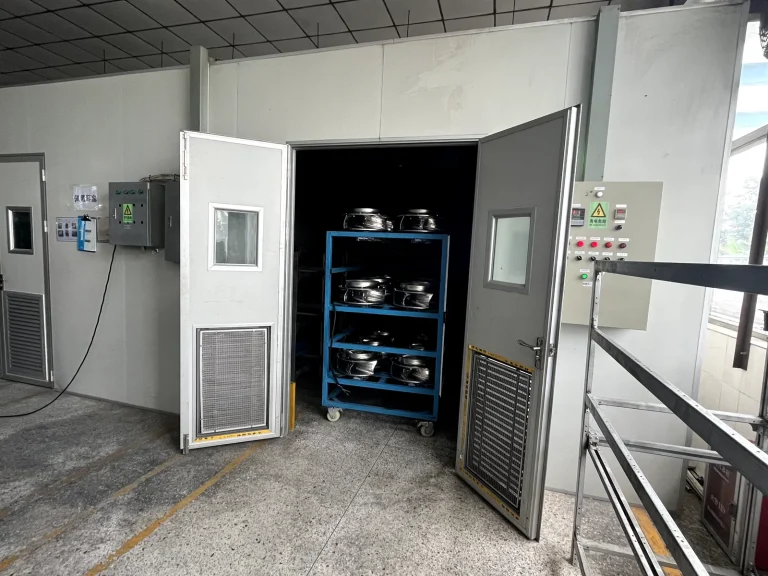

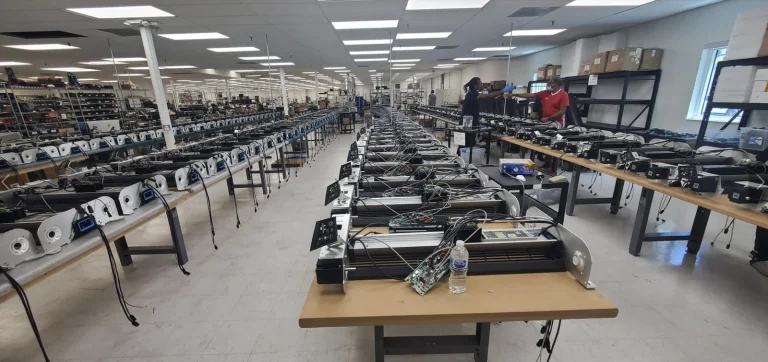

Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives at a similar dutySimilar airflow, different construction or motor platform
LW-G63T300 m³/hsimilar duty
LWFA2E120-092DS-01Ø120 mm · 299 m³/h · 278 Pa · ACsimilar duty
LWFA2E133-092SS-01Ø133 mm · 299 m³/h · 361 Pa · ACsimilar duty
LWFA2E133-092NS-01Ø133 mm · 299 m³/h · 361 Pa · ACsimilar duty
LWAD12025LX-07120 mm · 301.2 m³/h · 249 Pa · DCsimilar duty
LWAD12025MX-07120 mm · 301.2 m³/h · 249 Pa · DCsimilar dutySee all Motor Cooling Fans · select by duty point
