ImpellerØ133 mm5.2 in
Max airflow299 m³/h176 CFM
Max static pressure361 Pa1.45 in. wg
Voltage230 V
Speed1,850 rpm
Input power83 W
Noise61 dB(A)

LWFA2E133-092SS-01 AC Single Inlet Forward Centrifugal Blower Ø133 mm

Ø133 mm | AC | Max airflow 299 m³/h | Max static pressure 361 Pa | 61 dB(A)

SKU: LWFA2E133-092SS-01 Categories: Centrifugal Fans, Impeller Ø120–133 mm, Single Inlet Forward Curved Blowers

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWFA2E133-092SS-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWFA2E133-092SS-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

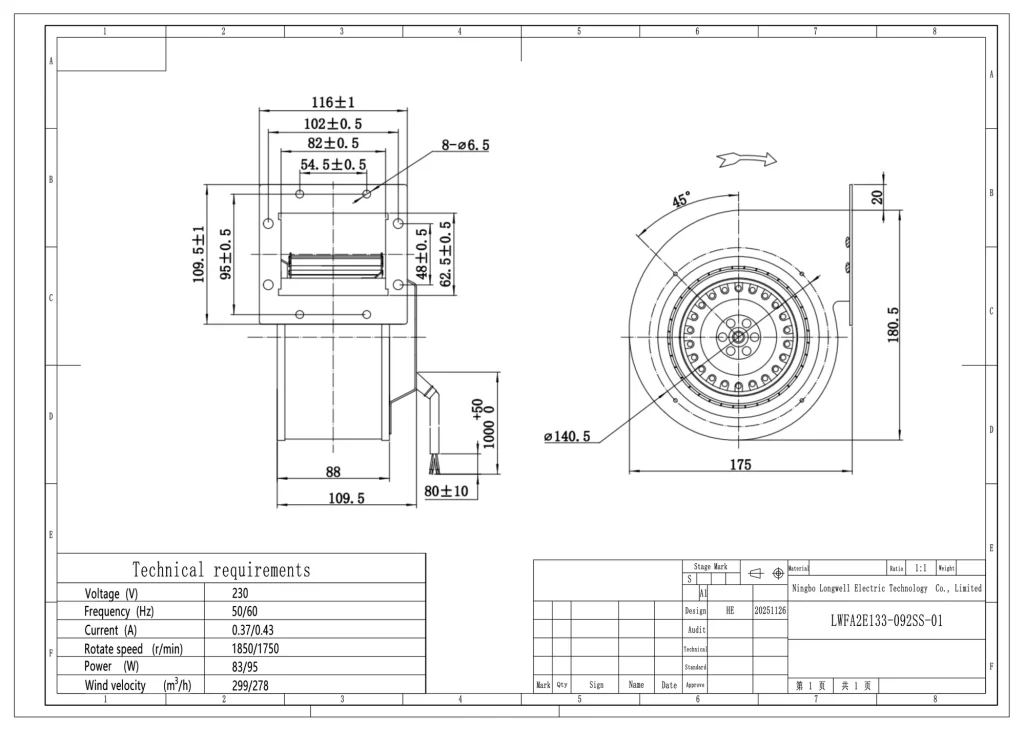

LWFA2E133-092SS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

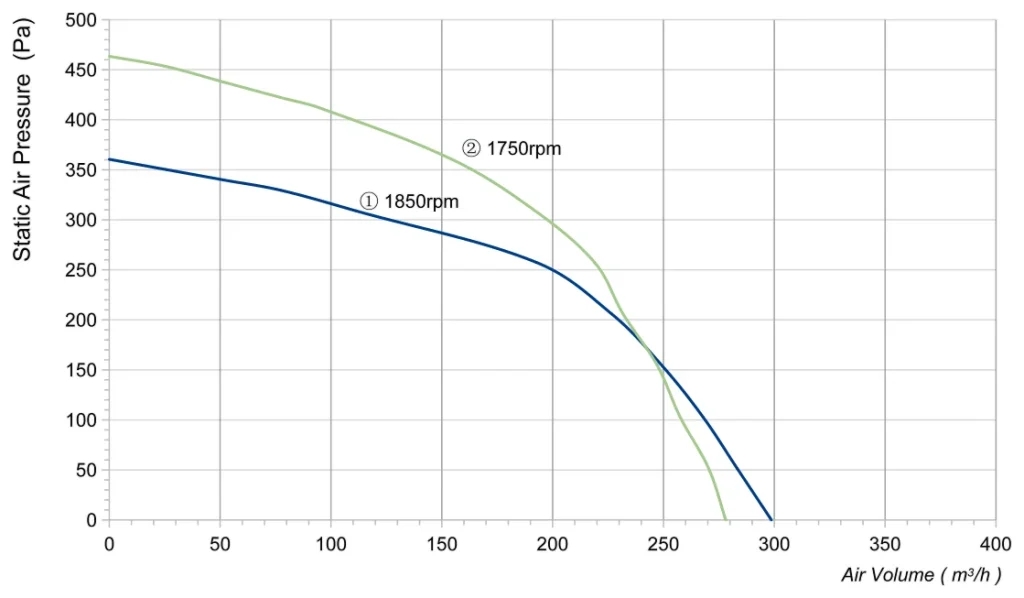

LWFA2E133-092SS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Downloads for LWFA2E133-092SS-01

PDFDatasheet PDFDrawing · 736 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA2E133-092SS-01 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V AC, maximum airflow 299 m³/h, maximum static pressure 361 Pa, noise 61 dB(A), input power 83 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA2E133-092SS-01
Series	LWFA2E133
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.37 A
Input power	83 W
Speed	1,850 rpm
Max. airflow	299 m³/h
Max. static pressure	361 Pa
Noise	61 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø133 mm
Rotor diameter	92
Impeller material	Galvanised sheet steel
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA2E133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø133 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA2E133-092SS-01 this model	299 m³/h	361 Pa	1,850 rpm	83 W	61 dB(A)	230 V
LWBA2E133-072NS-02	225 m³/h	184 Pa	2,720 rpm	27.8 W	57.9 dB(A)	230 V	View
LWBA2E133-072NS-01	245 m³/h	242 Pa	3,070 rpm	32.2 W	58.7 dB(A)	230 V	View
LWFA2E133-092NS-02	278 m³/h	464 Pa	2,350 rpm	95 W	63 dB(A)	230 V	View
LWFA2E133-092SS-02	278 m³/h	464 Pa	1,750 rpm	95 W	63 dB(A)	230 V	View
LWFA2E133-092NS-01	299 m³/h	361 Pa	2,300 rpm	83 W	61 dB(A)	230 V	View
LWFA2E133-092SS-03	319 m³/h	433 Pa	1,600 rpm	85 W	56 dB(A)	230 V	View
LWFA2E133-092DS-07	330 m³/h	309 Pa	1,450 rpm	70 W	40 dB(A)	230 V	View
LWFA4E133-092DS-09	556.2 m³/h	144.2 Pa	1,150 rpm	75 W	51 dB(A)	230 V	View
LWFA4E133-092DS-04	567 m³/h	433 Pa	1,250 rpm	190 W	69 dB(A)	230 V	View
LWFA4E133-092DS-03	649 m³/h	371 Pa	1,400 rpm	180 W	69 dB(A)	230 V	View
LWFA2E133-092DS-08	726.15 m³/h	381.1 Pa	1,500 rpm	190 W	60 dB(A)	230 V	View
LWFA2E133-092DS-10	773 m³/h	433 Pa	1,200 rpm	250 W	58 dB(A)	230 V	View
LWFA2E133-092DS-06	886 m³/h	639 Pa	1,300 rpm	265 W	69 dB(A)	230 V	View
LWFA2E133-092DS-05	927 m³/h	494 Pa	1,350 rpm	250 W	69 dB(A)	230 V	View
