ImpellerØ250 mm9.8 in
Max airflow1,627 m³/h958 CFM
Voltage220 V
Speed2,550 rpm
Input power100 W

LWAA2E250S-5MEW-22 AC Axial Fan Ø250 mm

Ø250 mm | AC | Max airflow 1,627 m³/h

SKU: LWAA2E250S-5MEW-22 Categories: AC Axial Fans, Axial Fans, Impeller Ø145–250 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAA2E250S-5MEW-22

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAA2E250S-5MEW-22drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

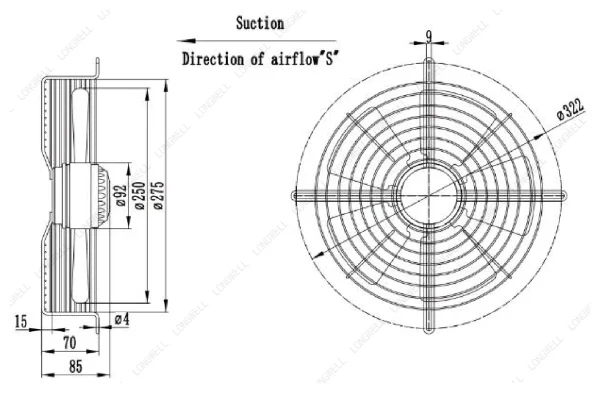

LWAA2E250S-5MEW-22 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

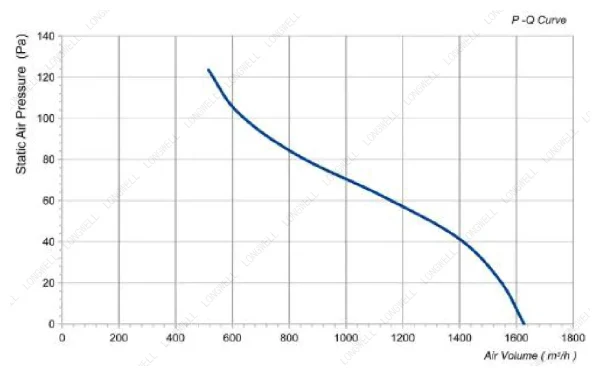

LWAA2E250S-5MEW-22 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA2E250S-5MEW-22 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAA2E250S-5MEW-22

PDFDatasheet DOCXDatasheet · 443 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

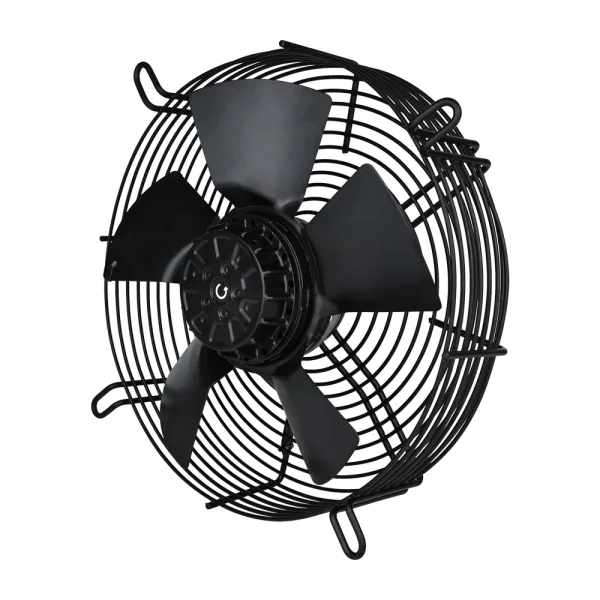

LWAA2E250S-5MEW-22 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø250 mm, rated 220 V AC, maximum airflow 1,627 m³/h, input power 100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA2E250S-5MEW-22
Series	LWAA2E250
Motor type	AC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Current	0.44 A
Input power	100 W
Speed	2,550 rpm
Max. airflow	1,627 m³/h
Ambient temperature	-40 ~ 60 °C
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA2E250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø250 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA2E250S-5MEW-22 this model	1,627 m³/h	see curve	2,550 rpm	100 W	—	220 V
LWA-250(10")U(S)M-01	28 m³/h	see curve	1,350 rpm	80 W	—	110-120 V	View
LWA-250(10")U(S)M-02	48 m³/h	see curve	2,800 rpm	230 W	—	110-120 V	View
LWAA4E250B-7MKB-18	979 m³/h	see curve	1,400 rpm	50 W	53 dB(A)	220/230 V	View
LWAA4E250S-7MKW-13	979 m³/h	see curve	1,400 rpm	50 W	53 dB(A)	220/230 V	View
LWAA4E250S-7MEB-05	979 m³/h	see curve	1,400 rpm	110 W	53 dB(A)	220/230 V	View
LWAA4D250S-7MEB-07	979 m³/h	see curve	1,400 rpm	100 W	53 dB(A)	380 V	View
LWAA4E250B-5MEW-23	989 m³/h	see curve	1,450 rpm	58 W	55 dB(A)	220 V	View
LWAA4E250B-7MKB-19	1,133 m³/h	see curve	1,650 rpm	60 W	54 dB(A)	220/230 V	View
LWAA4E250S-7MKW-14	1,133 m³/h	see curve	1,620 rpm	55 W	54 dB(A)	220/230 V	View
LWAA4E250S-7MEB-06	1,133 m³/h	see curve	1,650 rpm	110 W	54 dB(A)	220/230 V	View
LWAA4D250S-7MEB-08	1,133 m³/h	see curve	1,650 rpm	100 W	54 dB(A)	380 V	View
LWAA2E250S-7MEB-15	2,060 m³/h	see curve	2,700 rpm	130 W	67 dB(A)	220/230 V	View
LWA-250(10")U(S)M-03	2,100 m³/h	215 Pa	2,800 rpm	250 W	—	110-120 V	View
LWAA2E250S-7MEB-16	2,318 m³/h	see curve	2,900 rpm	170 W	69 dB(A)	220/230 V	View
