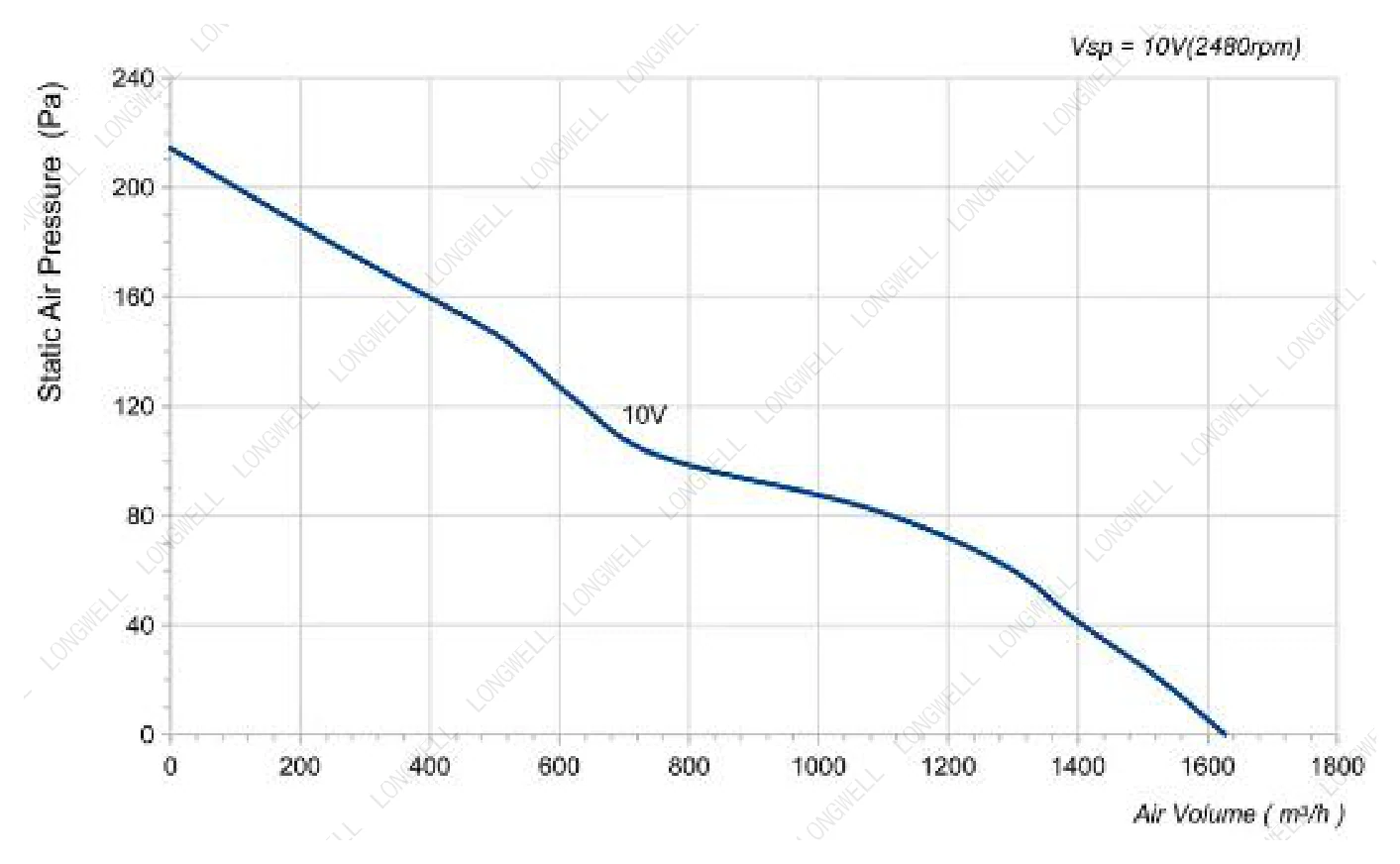

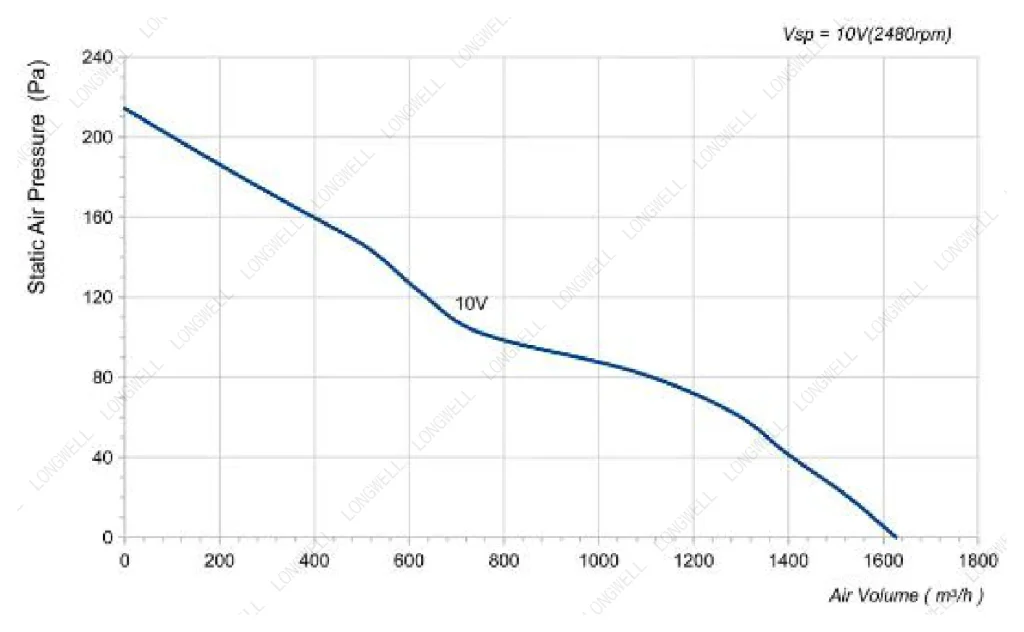

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ250 mm
- Max airflow1,627 m³/h
- Max static pressure214 Pa
- Voltage220/230 V
- Speed2,480 rpm
- Input power85 W
- Noise60 dB(A)

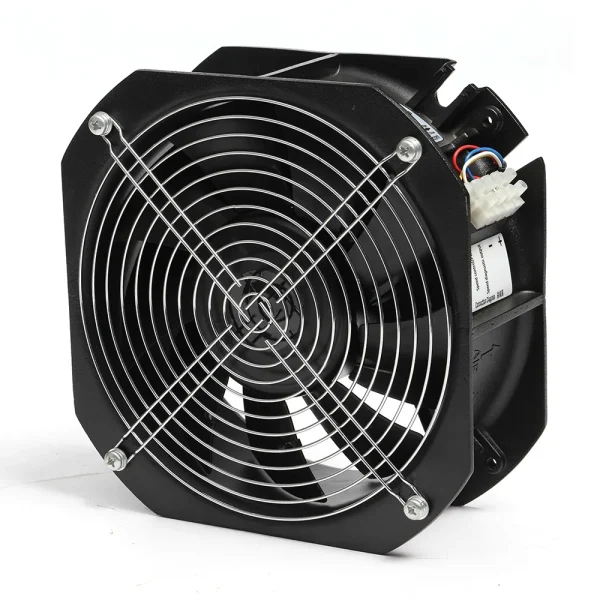

LWAE3G250SS-7PKW-08 EC Axial Fan Ø250 mm
Ø250 mm | EC | Max airflow 1,627 m³/h | Max static pressure 214 Pa | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWAE3G250SS-7PKW-08
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

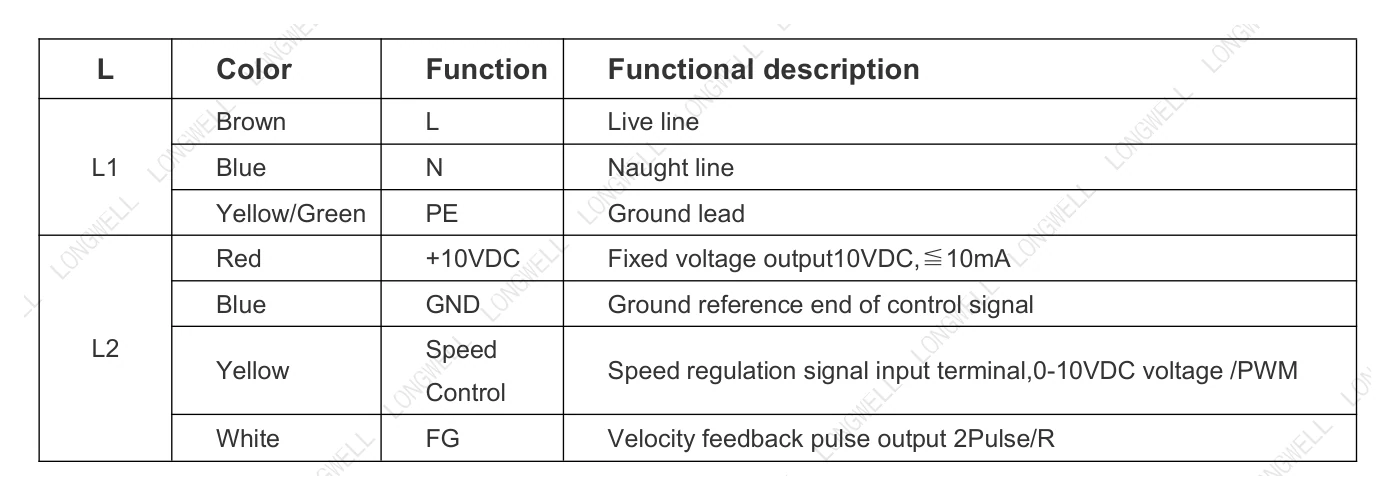

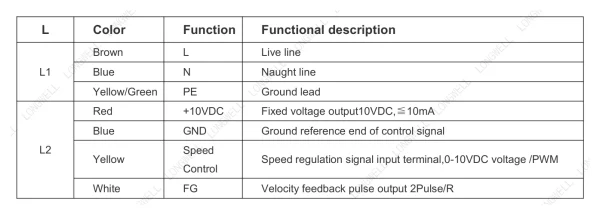

LWAE3G250SS-7PKW-08 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø250 mm, rated 220/230 V EC, maximum airflow 1,627 m³/h, maximum static pressure 214 Pa, noise 60 dB(A), input power 85 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G250SS-7PKW-08 |
|---|---|
| Series | LWAE3G250 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50 Hz |
| Current | 0.61 A |
| Input power | 85 W |
| Speed | 2,480 rpm |
| Max. airflow | 1,627 m³/h |
| Max. airflow (CFM) | 957 CFM |
| Max. static pressure | 214 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 30 ~ 95 % RH |
| Altitude | < 1000m |

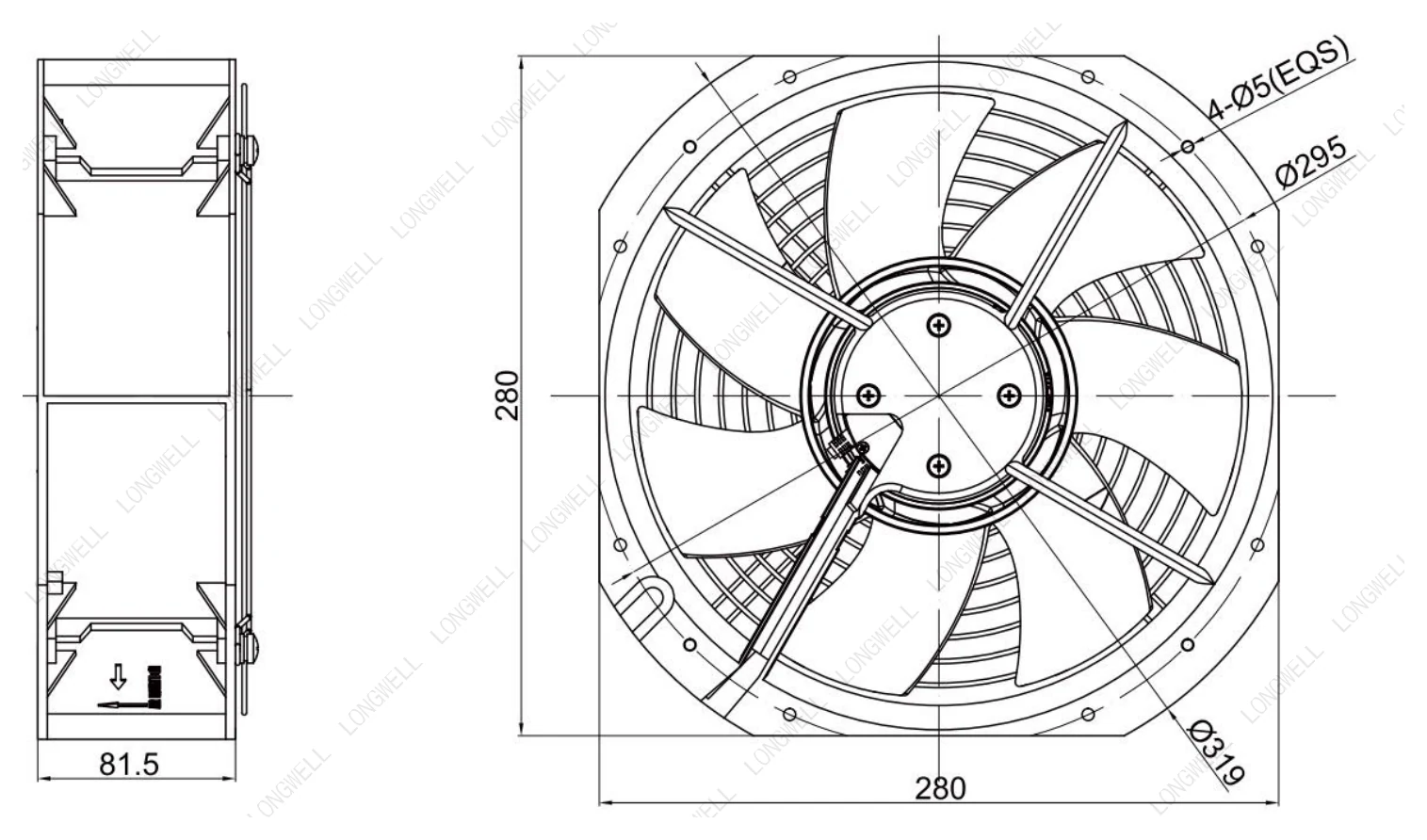

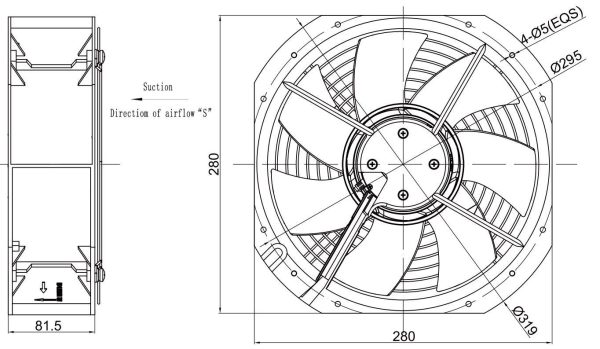

| Impeller diameter | Ø250 mm |
| Impeller material | PA66 ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø250 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G250SS-7PKW-08 this model | 1,627 m³/h | 214 Pa | 2,480 rpm | 85 W | 60 dB(A) | 220/230 V | |
| LWBE3G250-072PS-15 | 1,215 m³/h | 391 Pa | 2,150 rpm | 90 W | 68 dB(A) | 230 V | View |
| LWDE-250 (10")U-MWN-01 | 1,219 m³/h | see curve | 3,000 rpm | 195 W | 69 dB(A) | 110-120 V | View |
| LWDE-250 (10")U-MWN-03 | 1,219 m³/h | see curve | 3,000 rpm | 195 W | 62 dB(A) | 110-120 V | View |
| LWDE-250S-MBN-07 | 1,231 m³/h | 1,030 Pa | 2,700 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWBE3G250-092PS-21 | 1,421 m³/h | 556 Pa | 2,600 rpm | 170 W | 69 dB(A) | 230 V | View |
| LWBE3G250-072PS-17 | 1,421 m³/h | 639 Pa | 2,760 rpm | 140 W | 77 dB(A) | 230 V | View |
| LWBE3G250-102PS-22 | 1,524 m³/h | 773 Pa | 3,150 rpm | 240 W | 78 dB(A) | 230 V | View |
| LWBE3G250-092PS-16 | 1,531 m³/h | 785 Pa | 3,010 rpm | 140 W | 72.1 dB(A) | 230 V | View |
| LWBE3G250-102PS-24 | 1,700 m³/h | 1,082 Pa | 3,500 rpm | 370 W | 82 dB(A) | 230 V | View |
| LWBE3G250-092PS-20 | 1,730 m³/h | 525 Pa | 2,500 rpm | 145 W | 74 dB(A) | 230 V | View |
| LWBE3G250-102PS-23 | 1,751 m³/h | 824 Pa | 3,170 rpm | 270 W | 84 dB(A) | 230 V | View |
| LWDE-250 (10")S-MWN-02 | 2,075 m³/h | see curve | 3,000 rpm | 195 W | 69 dB(A) | 220-240 V | View |
| LWDE-250 (10")S-MWN-04 | 2,075 m³/h | see curve | 3,000 rpm | 195 W | 62 dB(A) | 220-240 V | View |
| LWFE3G250-102PT-08 | 3,708 m³/h | 1,751 Pa | 3,860 rpm | 1,000 W | 92 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Related products
Other models in the LWAE3G250 seriesSame impeller, different speed grade or wiring
LWAE3G250SS-7MEW-03Ø250 mm · 1,751 m³/h · 290 Pa · ECsame series
LWAE3G250SS-7MGW-05Ø250 mm · 1,751 m³/h · 290 Pa · ECsame series
LWAE3G250SS-7MNW-01Ø250 mm · 1,751 m³/h · 290 Pa · ECsame series
LWAE3G250SS-7PKW-10Ø250 mm · 1,916 m³/h · 201 Pa · ECsame series

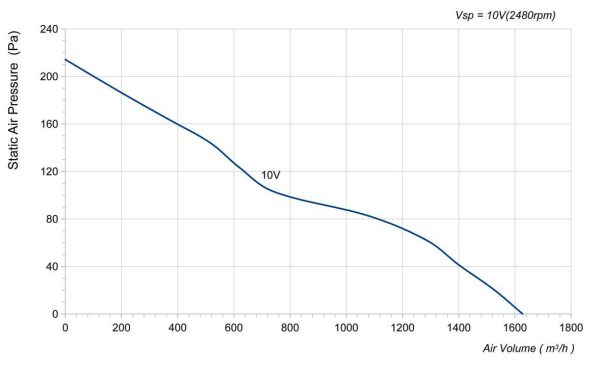

LWAE3G250SS-7PNW-07Ø250 mm · 1,627 m³/h · 214 Pa · ECsame series
