Downloads for LWAA4D420S-5MEB-04
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ420 mm
- Max airflow5,974 m³/h
- Voltage380 V
- Speed1,600 rpm
- Input power380 W
- Noise68 dB(A)
LWAA4D420S-5MEB-04 AC Axial Fan Ø420 mm
Ø420 mm | AC | Max airflow 5,974 m³/h | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

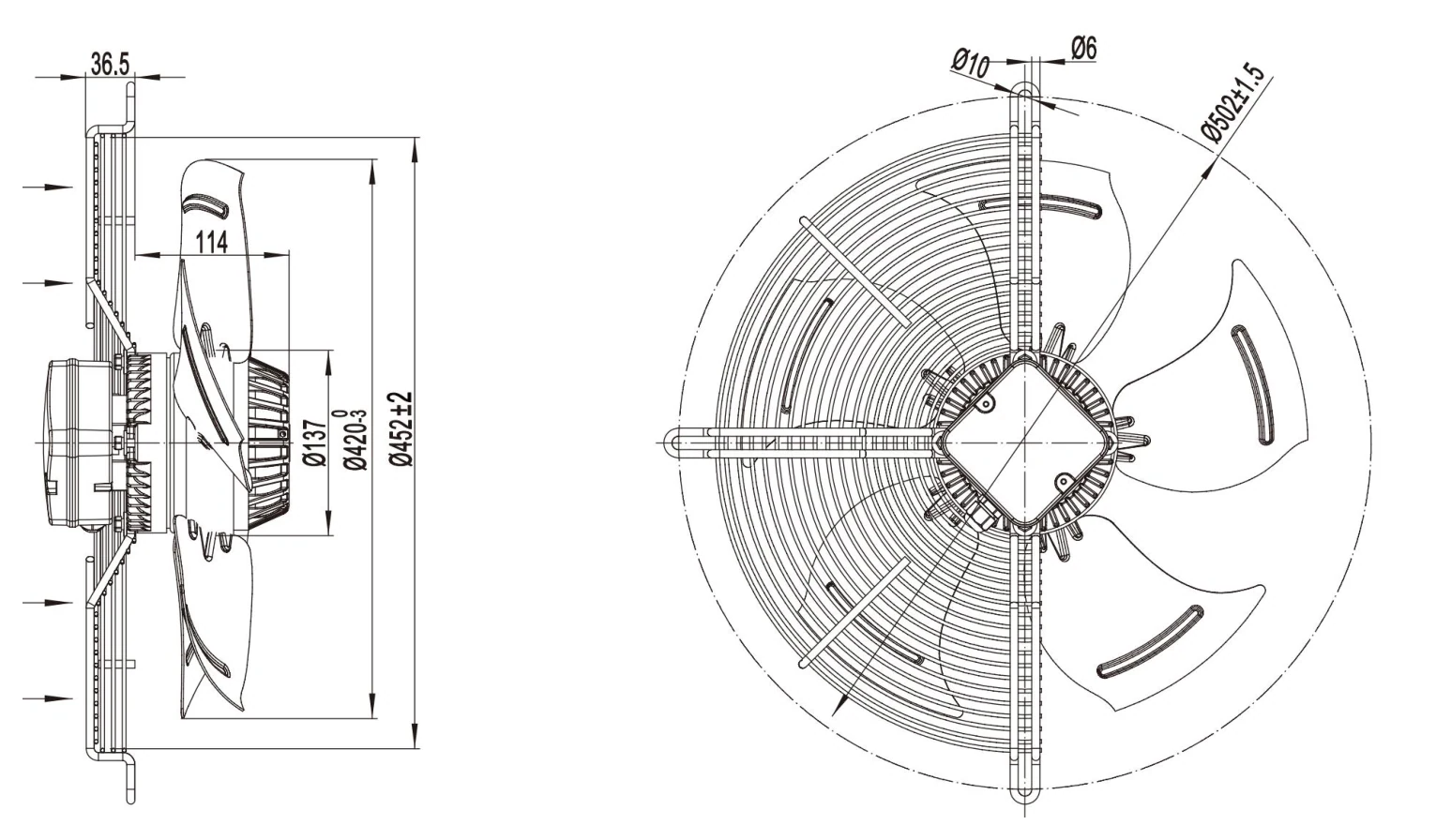

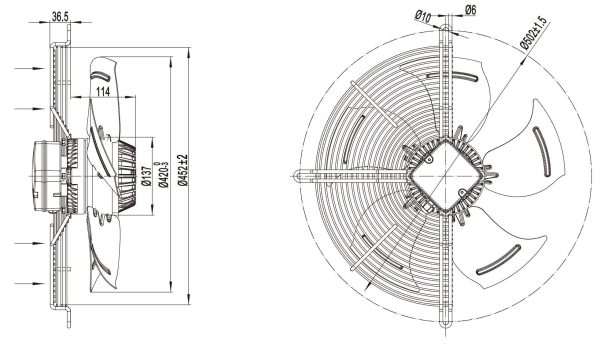

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

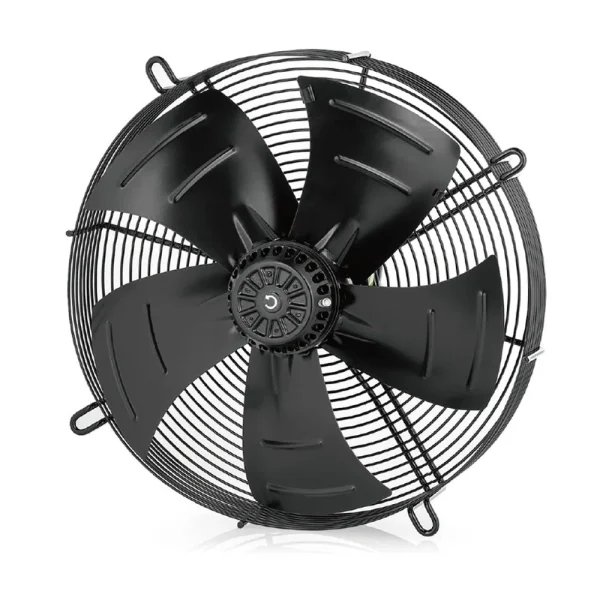

LWAA4D420S-5MEB-04 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø420 mm, rated 380 V AC, maximum airflow 5,974 m³/h, noise 68 dB(A), input power 380 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D420S-5MEB-04 |
|---|---|
| Series | LWAA4D420 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 60 Hz |
| Current | 0.9 A |
| Input power | 380 W |
| Speed | 1,600 rpm |
| Max. airflow | 5,974 m³/h |
| Noise | 68 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø420 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D420: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

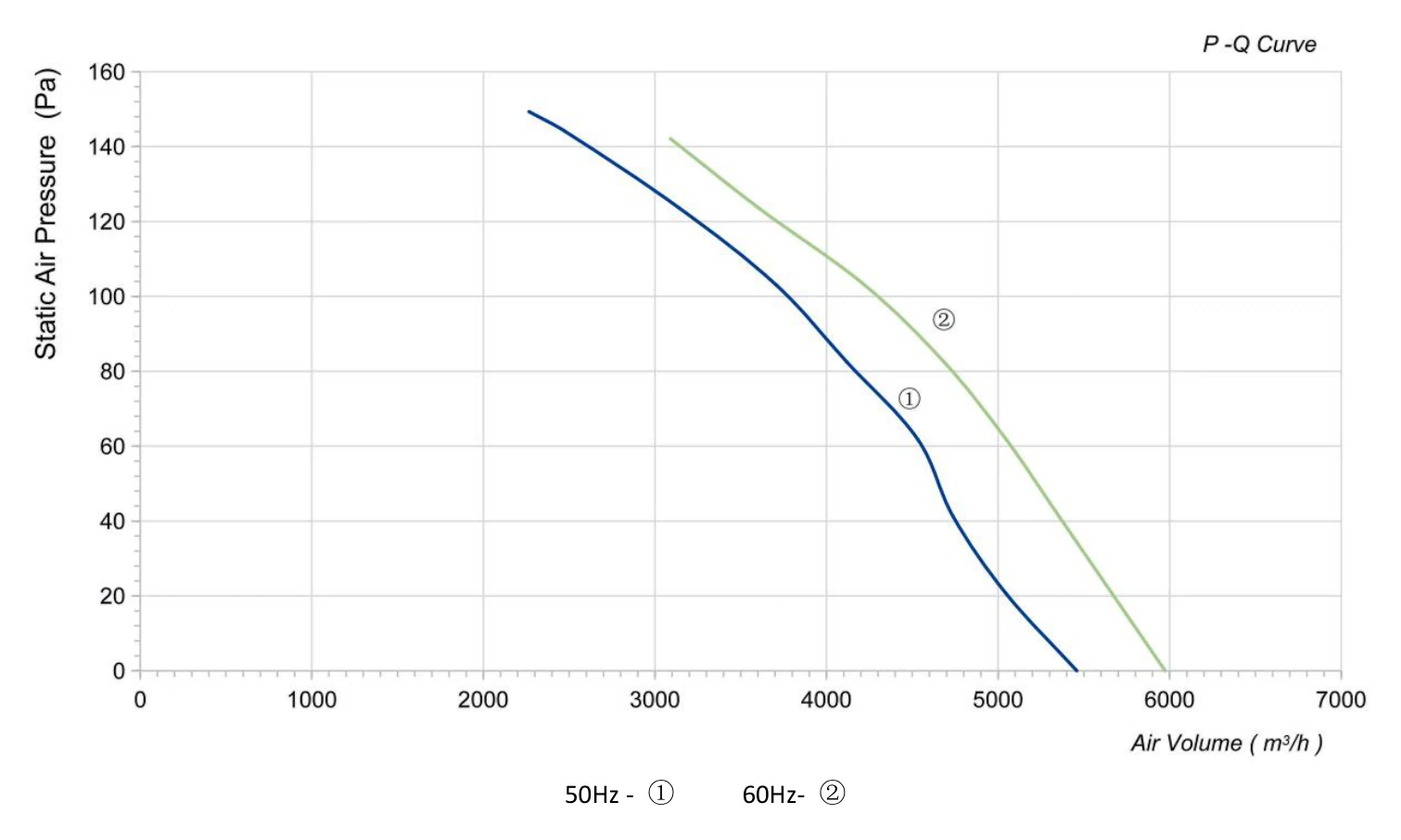

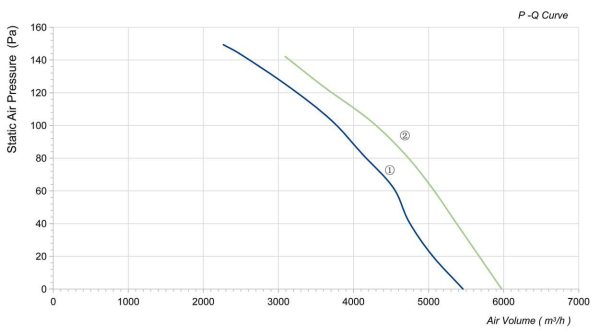

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø420 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D420S-5MEB-04 this model | 5,974 m³/h | see curve | 1,600 rpm | 380 W | 68 dB(A) | 380 V | |
| LWAA4E420S-5MEB-01 | 5,459 m³/h | see curve | 1,350 rpm | 300 W | 65 dB(A) | 220/230 V | View |
| LWAA4D420S-5MEB-03 | 5,459 m³/h | see curve | 1,370 rpm | 280 W | 65 dB(A) | 380 V | View |
| LWAA4E420S-5MEB-02 | 5,974 m³/h | see curve | 1,580 rpm | 400 W | 68 dB(A) | 220/230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
