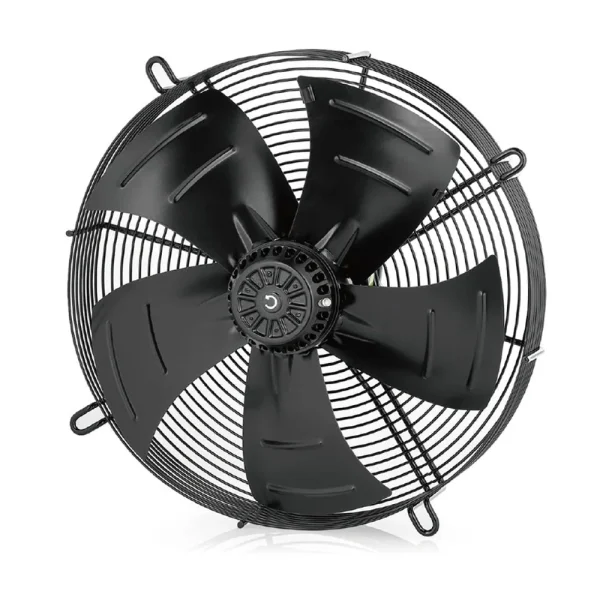

LWAA4E420S-5MEB-02 AC Axial Fan Ø420 mm
Ø420 mm | AC | Max airflow 5,974 m³/h | 68 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

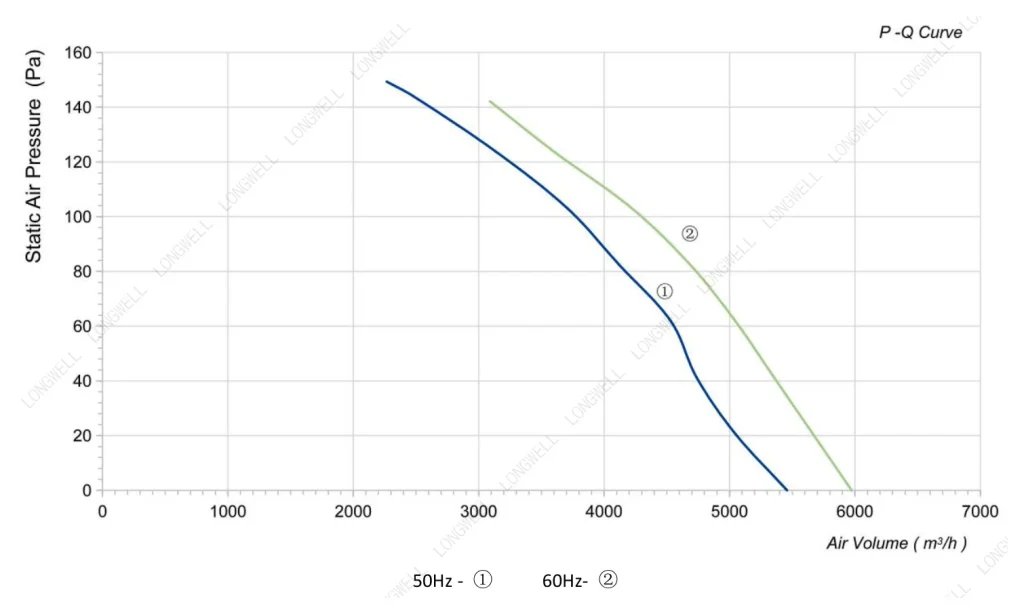

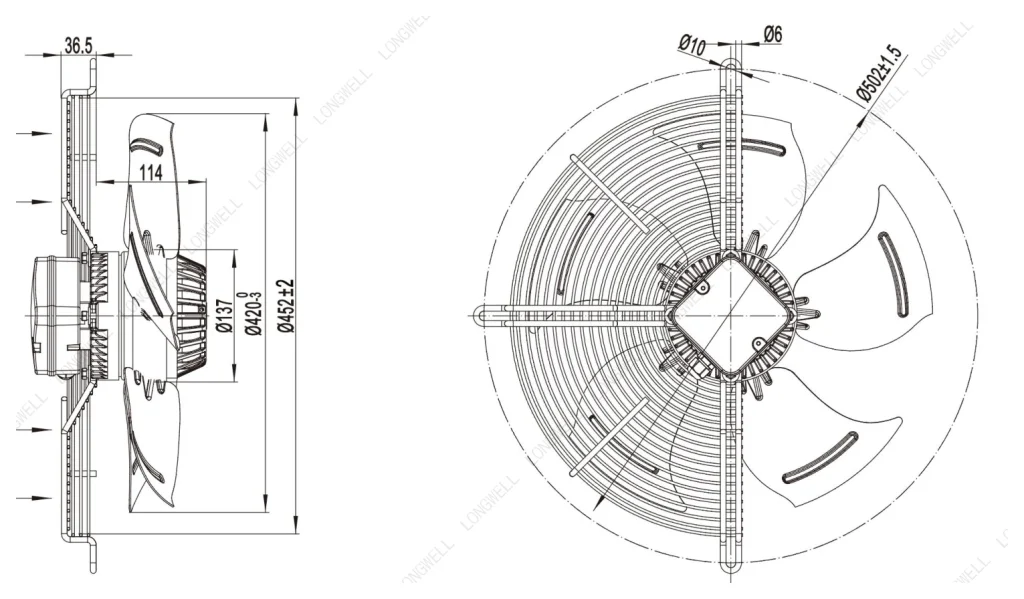

Drawing, Curve & Wiring LWAA4E420S-5MEB-02
Files for LWAA4E420S-5MEB-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAA4E420S-5MEB-02
LWAA4E420S-5MEB-02 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø420 mm, rated 220/230 V AC, maximum airflow 5,974 m³/h, noise 68 dB(A), input power 400 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4E420S-5MEB-02 |
|---|---|
| Series | LWAA4E420 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 198 ~ 242 V |
| Frequency | 60 Hz |
| Current | 1.8 A |
| Input power | 400 W |
| Speed | 1,580 rpm |
| Max. airflow | 5,974 m³/h |
| Noise | 68 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø420 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4E420: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
