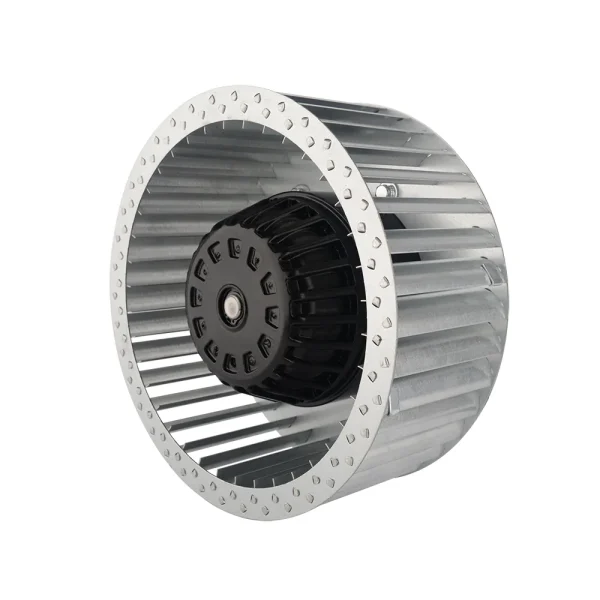

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ400 mm15.7 in
- Max airflow5,974 m³/h3,516 CFM
- Max static pressure345.05 Pa1.39 in. wg
- Voltage380 V
- Speed700 rpm
- Input power1,700 W2.28 hp
- Noise65 dB(A)
LWFA8D400-188NT-03 AC Forward Curved Centrifugal Fan Ø400 mm
Ø400 mm | AC | Max airflow 5,974 m³/h | Max static pressure 345.05 Pa | 65 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

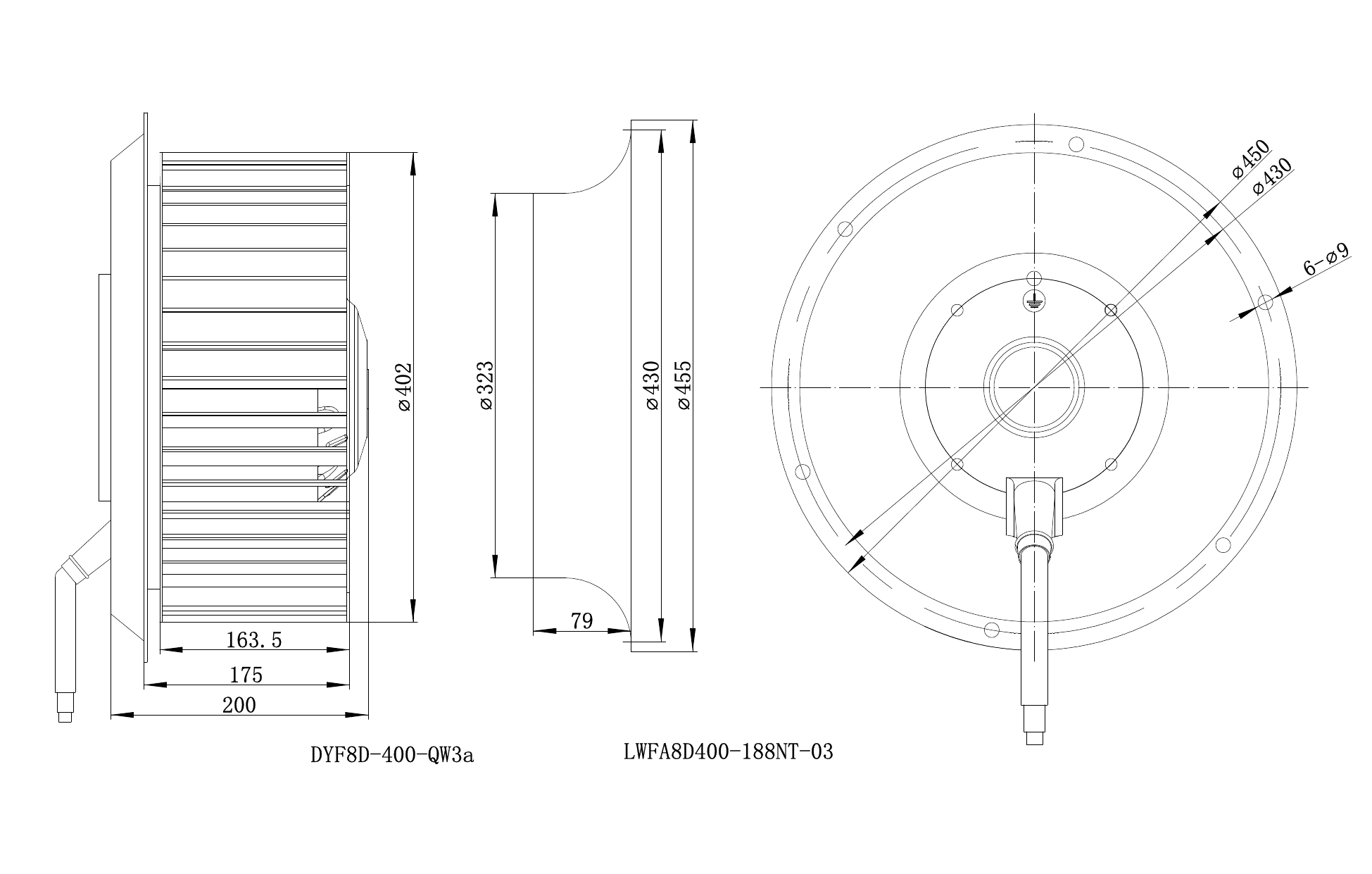

Drawing & Curve LWFA8D400-188NT-03
Files for LWFA8D400-188NT-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA8D400-188NT-03
LWFA8D400-188NT-03 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø400 mm, rated 380 V AC, maximum airflow 5,974 m³/h, maximum static pressure 345.05 Pa, noise 65 dB(A), input power 1,700 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA8D400-188NT-03 |
|---|---|
| Series | LWFA8D400 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 3.7 A |
| Input power | 1,700 W |
| Speed | 700 rpm |
| Max. airflow | 5,974 m³/h |
| Max. static pressure | 345.05 Pa |
| Noise | 65 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Impeller diameter | Ø400 mm |
| Rotor diameter | 188 mm |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA8D400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
