Downloads for LWAA6E600S-5MEB-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ600 mm23.6 in
- Max airflow9,785 m³/h5,759 CFM
- Voltage220/230 V
- Speed910 rpm
- Input power500 W
- Noise67 dB(A)

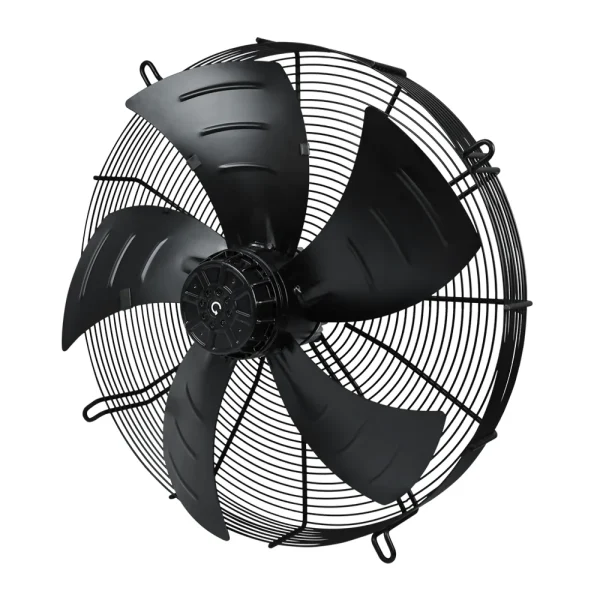

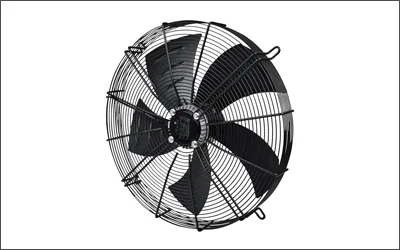

LWAA6E600S-5MEB-02 AC Axial Fan Ø600 mm
Ø600 mm | AC | Max airflow 9,785 m³/h | 67 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWAA6E600S-5MEB-02 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø600 mm, rated 220/230 V AC, maximum airflow 9,785 m³/h, noise 67 dB(A), input power 500 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA6E600S-5MEB-02 |
|---|---|
| Series | LWAA6E600 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 198 ~ 242 V |
| Frequency | 50 Hz |
| Current | 2.4 A |
| Input power | 500 W |
| Speed | 910 rpm |
| Max. airflow | 9,785 m³/h |
| Noise | 67 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø600 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA6E600: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

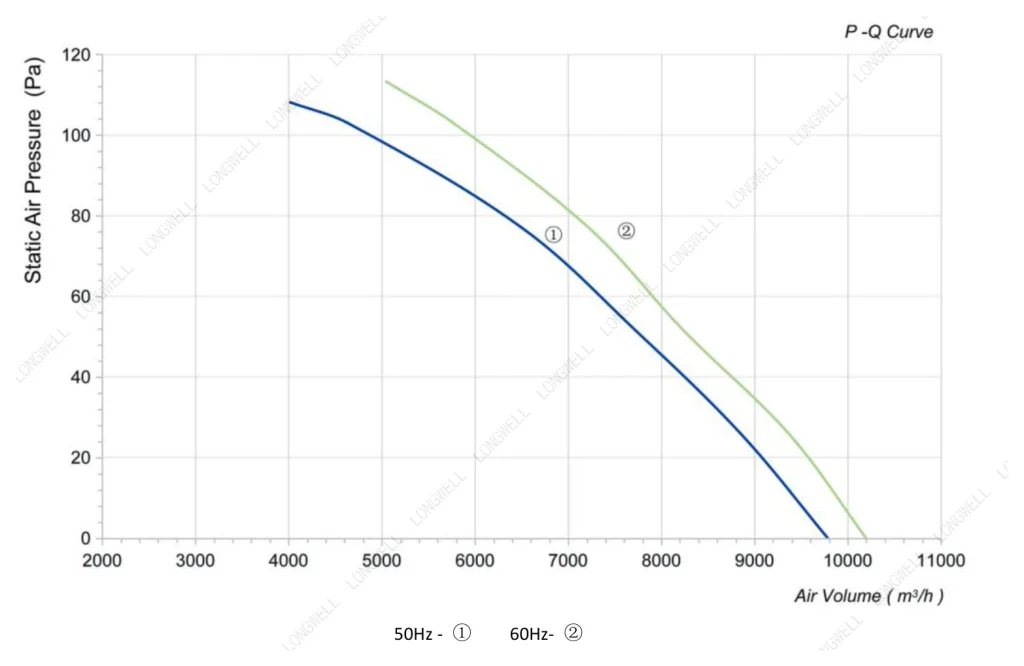

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø600 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA6E600S-5MEB-02 this model | 9,785 m³/h | see curve | 910 rpm | 500 W | 67 dB(A) | 220/230 V | |
| LWA-600(24")U(S)M-01 | 205 m³/h | see curve | 1,350 rpm | 500 W | — | 110-120 V | View |
| LWA-600(24")U(S)M-03 | 210 m³/h | see curve | 1,100 rpm | 260 W | 64 dB(A) | 110-120 V | View |
| LWA-600(24")TM-02 | 310 m³/h | see curve | 1,350 rpm | 800 W | — | 380 V | View |
| LWEA600S(T)M-070E | 8,700 m³/h | see curve | 1,450 rpm | 750 W | — | 220 V | View |
| LWEAF600-01 | 8,700 m³/h | see curve | 1,450 rpm | 750 W | — | 220 V | View |
| LWAA6E600B-5MKB-07 | 9,785 m³/h | see curve | 910 rpm | 500 W | 67 dB(A) | 220/230 V | View |
| LWAA6D600S-5MEB-04 | 9,785 m³/h | see curve | 920 rpm | 500 W | 67 dB(A) | 380 V | View |
| LWAA6E600B-5MKB-08 | 10,197 m³/h | see curve | 1,080 rpm | 640 W | 69 dB(A) | 220/230 V | View |
| LWAA6E600S-5MEB-03 | 10,197 m³/h | see curve | 1,080 rpm | 640 W | 69 dB(A) | 220/230 V | View |
| LWAA6D600S-5MEB-05 | 10,197 m³/h | see curve | 1,070 rpm | 650 W | 69 dB(A) | 380 V | View |
| LWAA4D600S-5MEB-01 | 10,506 m³/h | see curve | 1,350 rpm | 800 W | 69 dB(A) | 380 V | View |
| LWAA4D600B-5MEW-10 | 11,794 m³/h | 185 Pa | 1,350 rpm | 950 W | — | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
