- ImpellerØ600 mm
- Max airflow8,700 m³/h
- Voltage220 V
- Speed1,450 rpm
- Input power750 W

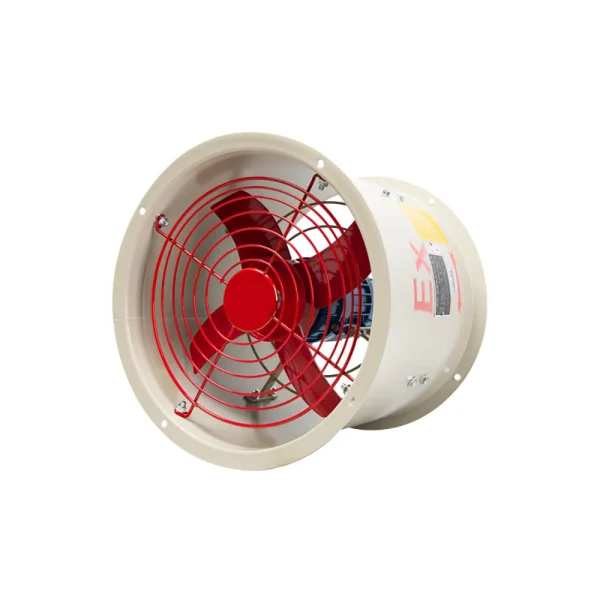

LWEAF600-01 Tube Axial Fan Ø600 mm
Ø600 mm | AC | Max airflow 8,700 m³/h
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWEAF600-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø600 mm, rated 220 V AC, maximum airflow 8,700 m³/h, input power 750 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWEAF600-01 |
|---|---|
| Series | LWEAF600 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 750 W |
| Speed | 1,450 rpm |
| Max. airflow | 8,700 m³/h |
| Impeller diameter | Ø600 mm |
| Blade diameter | 600mm |
| Protection class | IP55 |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEAF600: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø600 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEAF600-01 this model | 8,700 m³/h | see curve | 1,450 rpm | 750 W | — | 220 V | |
| LWA-600(24")U(S)M-01 | 205 m³/h | see curve | 1,350 rpm | 500 W | — | 110-120 V | View |
| LWA-600(24")U(S)M-03 | 210 m³/h | see curve | 1,100 rpm | 260 W | 64 dB(A) | 110-120 V | View |
| LWA-600(24")TM-02 | 310 m³/h | see curve | 1,350 rpm | 800 W | — | 380 V | View |
| LWEA600S(T)M-070E | 8,700 m³/h | see curve | 1,450 rpm | 750 W | — | 220 V | View |
| LWAA6E600B-5MKB-07 | 9,785 m³/h | see curve | 910 rpm | 500 W | 67 dB(A) | 220/230 V | View |
| LWAA6E600S-5MEB-02 | 9,785 m³/h | see curve | 910 rpm | 500 W | 67 dB(A) | 220/230 V | View |
| LWAA6D600S-5MEB-04 | 9,785 m³/h | see curve | 920 rpm | 500 W | 67 dB(A) | 380 V | View |
| LWAA6E600B-5MKB-08 | 10,197 m³/h | see curve | 1,080 rpm | 640 W | 69 dB(A) | 220/230 V | View |
| LWAA6E600S-5MEB-03 | 10,197 m³/h | see curve | 1,080 rpm | 640 W | 69 dB(A) | 220/230 V | View |
| LWAA6D600S-5MEB-05 | 10,197 m³/h | see curve | 1,070 rpm | 650 W | 69 dB(A) | 380 V | View |
| LWAA4D600S-5MEB-01 | 10,506 m³/h | see curve | 1,350 rpm | 800 W | 69 dB(A) | 380 V | View |
| LWAA4D600B-5MEW-10 | 11,794 m³/h | 185 Pa | 1,350 rpm | 950 W | — | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
