ImpellerØ600 mm23.6 in
Max airflow205 m³/h121 CFM
Voltage110-120 V
Speed1,350 rpm
Input power500 W

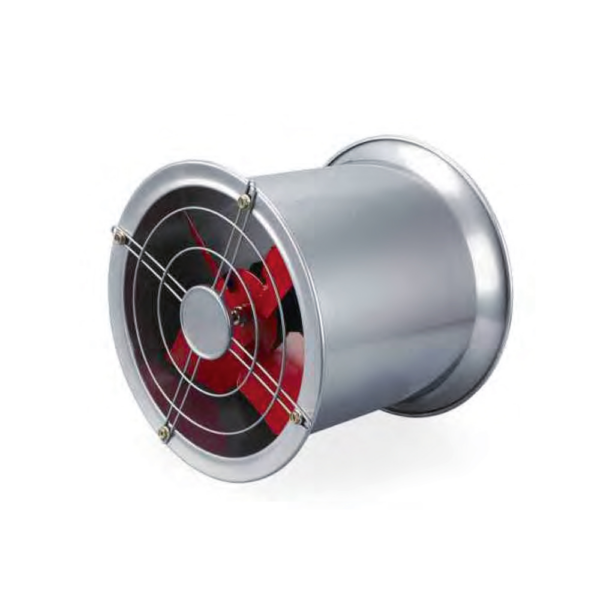

LWA-600(24″)U(S)M-01 Tube Axial Fan Ø600 mm

Ø600 mm | AC | Max airflow 205 m³/h

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWA-600(24")U(S)M-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWA-600(24")U(S)M-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWA-600(24")U(S)M-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-600(24")U(S)M-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø600 mm, rated 110-120 V AC, maximum airflow 205 m³/h, input power 500 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWA-600(24")U(S)M-01
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	500 W
Speed	1,350 rpm
Max. airflow	205 m³/h
Impeller diameter	Ø600 mm
Blade diameter	600mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø600 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-600(24")U(S)M-01 this model	205 m³/h	see curve	1,350 rpm	500 W	—	110-120 V
LWA-600(24")U(S)M-03	210 m³/h	see curve	1,100 rpm	260 W	64 dB(A)	110-120 V	View
LWA-600(24")TM-02	310 m³/h	see curve	1,350 rpm	800 W	—	380 V	View
LWEA600S(T)M-070E	8,700 m³/h	see curve	1,450 rpm	750 W	—	220 V	View
LWEAF600-01	8,700 m³/h	see curve	1,450 rpm	750 W	—	220 V	View
LWAA6E600B-5MKB-07	9,785 m³/h	see curve	910 rpm	500 W	67 dB(A)	220/230 V	View
LWAA6E600S-5MEB-02	9,785 m³/h	see curve	910 rpm	500 W	67 dB(A)	220/230 V	View
LWAA6D600S-5MEB-04	9,785 m³/h	see curve	920 rpm	500 W	67 dB(A)	380 V	View
LWAA6E600B-5MKB-08	10,197 m³/h	see curve	1,080 rpm	640 W	69 dB(A)	220/230 V	View
LWAA6E600S-5MEB-03	10,197 m³/h	see curve	1,080 rpm	640 W	69 dB(A)	220/230 V	View
LWAA6D600S-5MEB-05	10,197 m³/h	see curve	1,070 rpm	650 W	69 dB(A)	380 V	View
LWAA4D600S-5MEB-01	10,506 m³/h	see curve	1,350 rpm	800 W	69 dB(A)	380 V	View
LWAA4D600B-5MEW-10	11,794 m³/h	185 Pa	1,350 rpm	950 W	—	380 V	View
