DC Axial Cooling Fan performance curve (shared by several models)

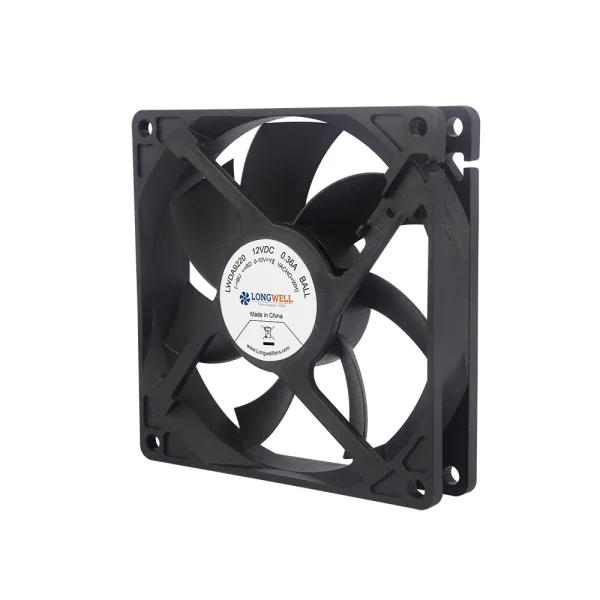

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size92 mm3.6 in
Max airflow65.4 m³/h38 CFM
Max static pressure16 Pa0.06 in. wg
Voltage12 V
Speed2,000 rpm
Input power2.4 W
Noise27.8 dB(A)

LWAD9220LM-03 DC Axial Cooling Fan 92 mm

92 mm | DC | Max airflow 65.4 m³/h | Max static pressure 16 Pa | 27.8 dB(A)

SKU: LWAD9220LM-03 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 80–92 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAD9220LM-032 files · direct download

WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Drive & control cabinets Access control Automation cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAD9220LM-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD9220LM-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing & Curve LWAD9220LM-03

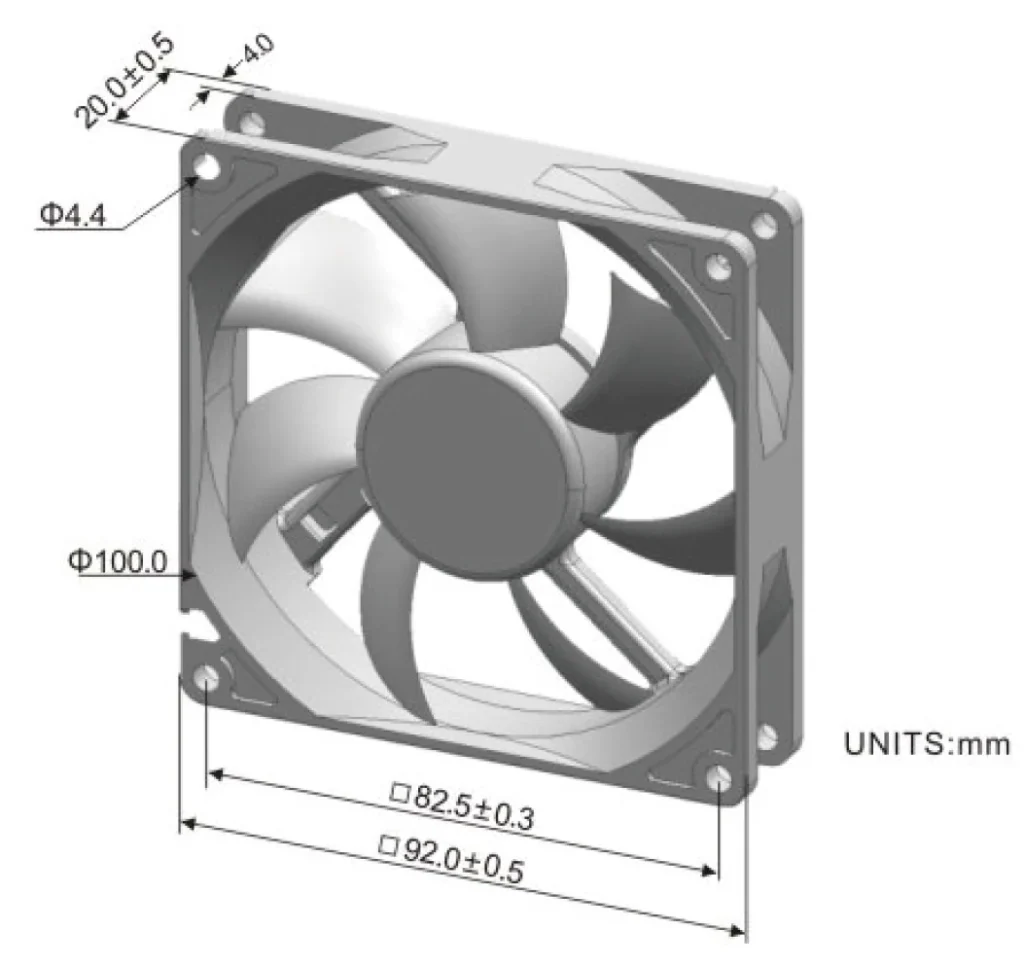

LWAD9220LM-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD9220LM-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAD9220LM-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD9220LM-03

LWAD9220LM-03 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 92 mm, rated 12 V DC, maximum airflow 65.4 m³/h, maximum static pressure 16 Pa, noise 27.8 dB(A), input power 2.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD9220LM-03
Series	LWAD9220
Motor type	DC
Rated voltage	12 V
Current	0.2 A
Input power	2.4 W
Speed	2,000 rpm
Max. airflow	65.4 m³/h
Max. static pressure	16 Pa
Noise	27.8 dB(A)
Frame size	92 mm
Dimensions	92x20mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD9220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAD9220LM-03

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same frame size (92 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD9220LM-03 this model	65.4 m³/h	16 Pa	2,000 rpm	2.4 W	27.8 dB(A)	12 V
LWAD9238HD-09	186.6 m³/h	197 Pa	7,000 rpm	19.2 W	58.2 dB(A)	48 V	View
LWAD9238MD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	24 V	View
LWAD9238LD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	12 V	View
LWAD9238HL-08	213.6 m³/h	257 Pa	8,000 rpm	28.8 W	61.1 dB(A)	48 V	View
LWAD9238ML-08	213.6 m³/h	257 Pa	8,000 rpm	19.2 W	61.1 dB(A)	24 V	View
LWAD9238LL-08	213.6 m³/h	257 Pa	8,000 rpm	18 W	61.1 dB(A)	12 V	View
LWAD9238HM-07	240 m³/h	325 Pa	9,000 rpm	38.4 W	63.6 dB(A)	48 V	View
LWAD9238MM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	24 V	View
LWAD9238LM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	12 V	View
LWAD9238HH-06	267 m³/h	401 Pa	10,000 rpm	48 W	65.9 dB(A)	48 V	View
LWAD9238MH-06	267 m³/h	401 Pa	10,000 rpm	36 W	65.9 dB(A)	24 V	View
LWAD9238LH-06	267 m³/h	401 Pa	10,000 rpm	36 W	65.9 dB(A)	12 V	View
LWAD9238HX-05	293.4 m³/h	486 Pa	11,000 rpm	57.6 W	68 dB(A)	48 V	View
LWAD9238MX-05	293.4 m³/h	486 Pa	11,000 rpm	48 W	68 dB(A)	24 V	View
