ImpellerØ300 mm11.8 in
Max airflow65 m³/h38 CFM
Voltage110-120 V
Speed2,800 rpm
Input power370 W

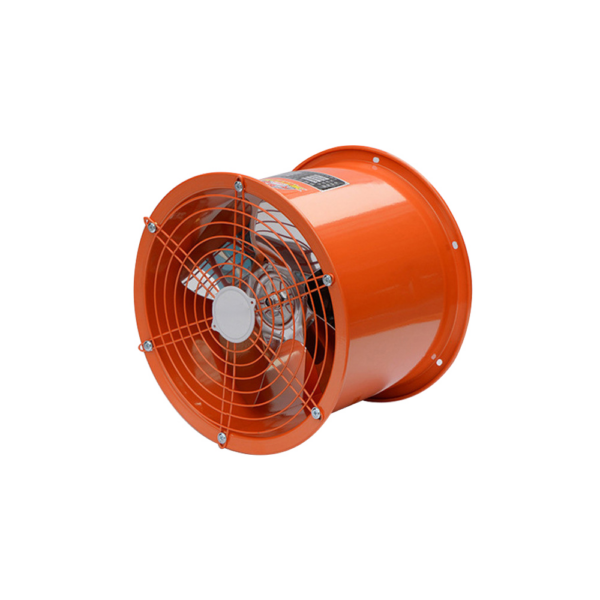

LWA-300(12″)U(S)M-03 Tube Axial Fan Ø300 mm

Ø300 mm | AC | Max airflow 65 m³/h

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWA-300(12")U(S)M-03

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWA-300(12")U(S)M-03drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWA-300(12")U(S)M-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWA-300(12")U(S)M-03

PDFDrawing · 258 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-300(12")U(S)M-03 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø300 mm, rated 110-120 V AC, maximum airflow 65 m³/h, input power 370 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWA-300(12")U(S)M-03
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	370 W
Speed	2,800 rpm
Max. airflow	65 m³/h
Impeller diameter	Ø300 mm
Blade diameter	300mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø300 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-300(12")U(S)M-03 this model	65 m³/h	see curve	2,800 rpm	370 W	—	110-120 V
LWA-300(12")U(S)M-01	35 m³/h	see curve	1,350 rpm	100 W	—	110-120 V	View
LWA-300(12")U(S)M-02	46 m³/h	see curve	1,350 rpm	120 W	—	110-120 V	View
LWFA6E300-138DS-01	1,596 m³/h	368 Pa	480 rpm	386 W	—	230 V	View
LWDA-300 (12")U-MWN-01	1,900 m³/h	see curve	3,450 rpm	489 W	78 dB(A)	110-120 V	View
LWDA-300 (12")U-MWN-03	1,900 m³/h	see curve	3,450 rpm	489 W	71 dB(A)	110-120 V	View
LWEA300S(T)M-067E	2,280 m³/h	see curve	1,450 rpm	180 W	—	220 V	View
LWEAF300-01	2,280 m³/h	see curve	1,450 rpm	180 W	—	220 V	View
LWFA-E-300-02	2,900 m³/h	408 Pa	—	—	65 dB(A)	—	View
LWA-300(12")U(S)M-04	3,000 m³/h	230 Pa	2,800 rpm	370 W	—	110-120 V	View
LWDA-300(12")S-MWN-05	3,000 m³/h	230 Pa	2,800 rpm	120 W	68 dB(A)	220 V	View
LWFA-E-300-03	3,100 m³/h	422 Pa	—	—	66 dB(A)	—	View
LWDA-300 (12")S-MWN-02	3,150 m³/h	see curve	2,900 rpm	320 W	72 dB(A)	220-240 V	View
LWDA-300 (12")S-MWN-04	3,150 m³/h	see curve	2,900 rpm	320 W	65 dB(A)	220-240 V	View
LWFA-E-300-01	4,300 m³/h	720 Pa	—	—	72 dB(A)	—	View
