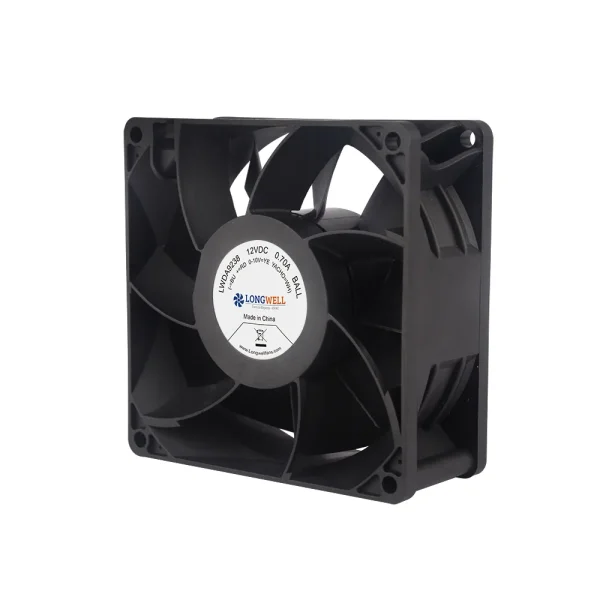

LWAD9238LH-06 product photo
LWAD12025HX-02 product photo
  • Frame size92 mm
  • Max airflow267 m³/h
  • Max static pressure401 Pa
  • Voltage12 V
  • Speed10,000 rpm
  • Input power36 W
  • Noise65.9 dB(A)

LWAD9238LH-06 DC Axial Cooling Fan 92 mm

92 mm | DC | Max airflow 267 m³/h | Max static pressure 401 Pa | 65.9 dB(A)

SKU: LWAD9238LH-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

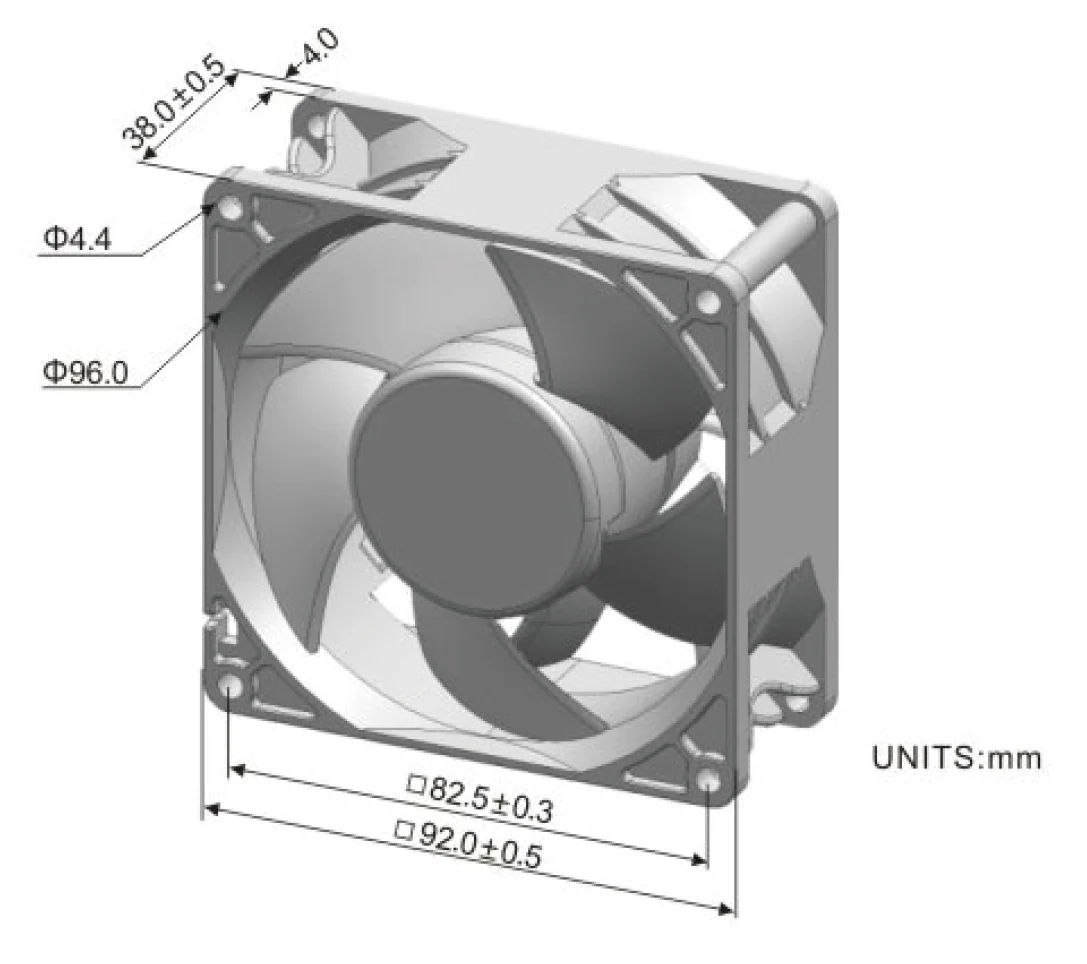

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAD9238LH-06 Dimensional drawing
Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAD9238LH-06 Performance curve (P-Q)

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD9238LH-06 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 92 mm, rated 12 V DC, maximum airflow 267 m³/h, maximum static pressure 401 Pa, noise 65.9 dB(A), input power 36 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWAD9238LH-06
Series LWAD9238
Motor type DC
Rated voltage 12 V
Current 3 A
Input power 36 W
Speed 10,000 rpm
Max. airflow 267 m³/h
Max. static pressure 401 Pa
Noise 65.9 dB(A)
Frame size 92 mm
Dimensions 92x38mm
Impeller material Plastic(UL94-VO)

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAD9238: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (92 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAD9238LH-06 this model 267 m³/h401 Pa 10,000 rpm36 W65.9 dB(A)12 V
LWAD9238HD-09 186.6 m³/h197 Pa 7,000 rpm19.2 W58.2 dB(A)48 V View
LWAD9238MD-09 186.6 m³/h197 Pa 7,000 rpm14.4 W58.2 dB(A)24 V View
LWAD9238LD-09 186.6 m³/h197 Pa 7,000 rpm14.4 W58.2 dB(A)12 V View
LWAD9238HL-08 213.6 m³/h257 Pa 8,000 rpm28.8 W61.1 dB(A)48 V View
LWAD9238ML-08 213.6 m³/h257 Pa 8,000 rpm19.2 W61.1 dB(A)24 V View
LWAD9238LL-08 213.6 m³/h257 Pa 8,000 rpm18 W61.1 dB(A)12 V View
LWAD9238HM-07 240 m³/h325 Pa 9,000 rpm38.4 W63.6 dB(A)48 V View
LWAD9238MM-07 240 m³/h325 Pa 9,000 rpm24 W63.6 dB(A)24 V View
LWAD9238LM-07 240 m³/h325 Pa 9,000 rpm24 W63.6 dB(A)12 V View
LWAD9238HH-06 267 m³/h401 Pa 10,000 rpm48 W65.9 dB(A)48 V View
LWAD9238MH-06 267 m³/h401 Pa 10,000 rpm36 W65.9 dB(A)24 V View
LWAD9238HX-05 293.4 m³/h486 Pa 11,000 rpm57.6 W68 dB(A)48 V View
LWAD9238MX-05 293.4 m³/h486 Pa 11,000 rpm48 W68 dB(A)24 V View
LWAD9238LX-05 293.4 m³/h486 Pa 11,000 rpm48 W68 dB(A)12 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
