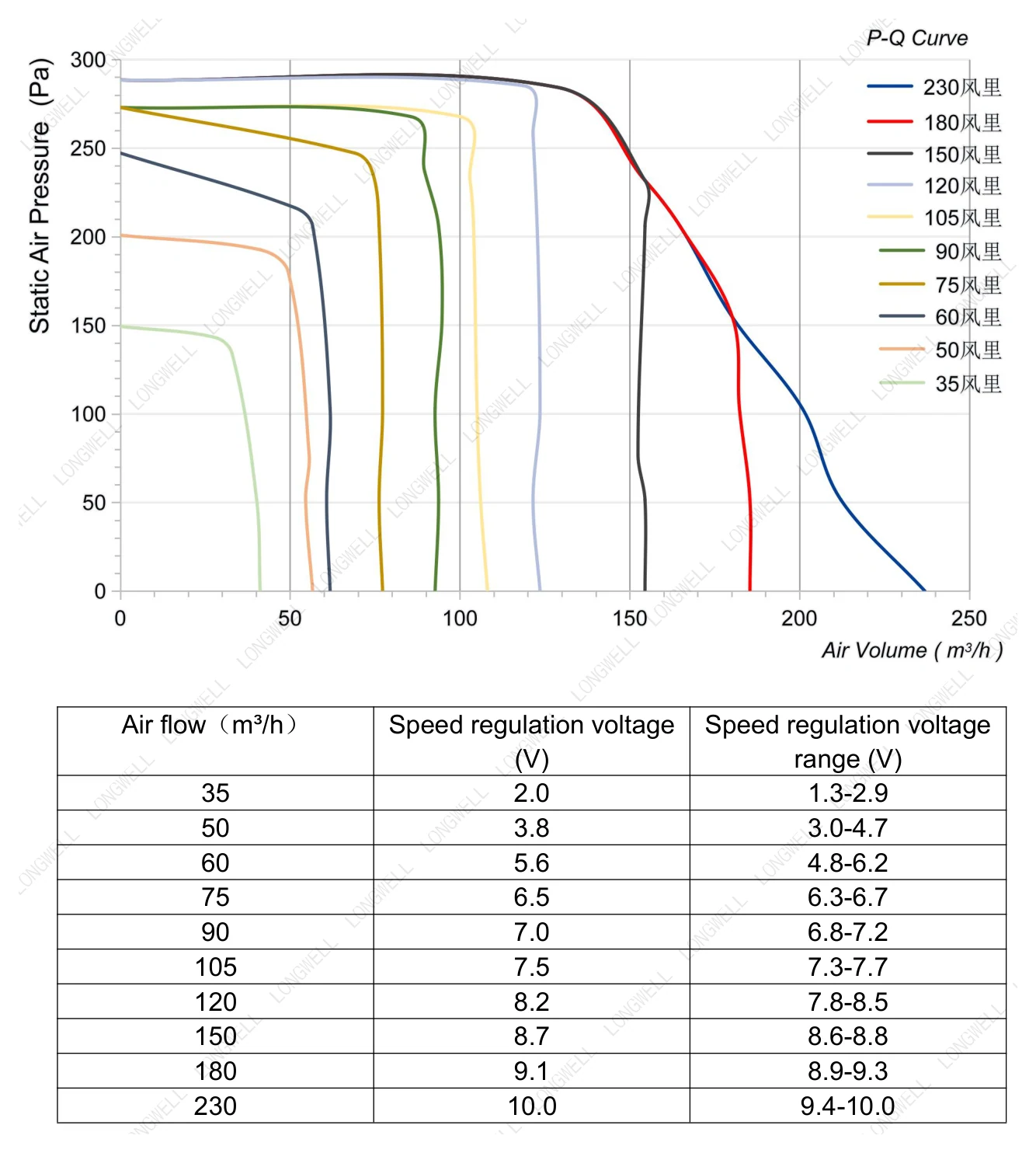

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ120 mm4.7 in
- Max airflow268 m³/h158 CFM
- Max static pressure443 Pa1.78 in. wg
- Voltage230 V
- Speed2,200 rpm
- Input power42 W
- Noise60 dB(A)
LWFE3G120-072SS-01 EC Single Inlet Forward Centrifugal Blower Ø120 mm
Ø120 mm | EC | Max airflow 268 m³/h | Max static pressure 443 Pa | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.

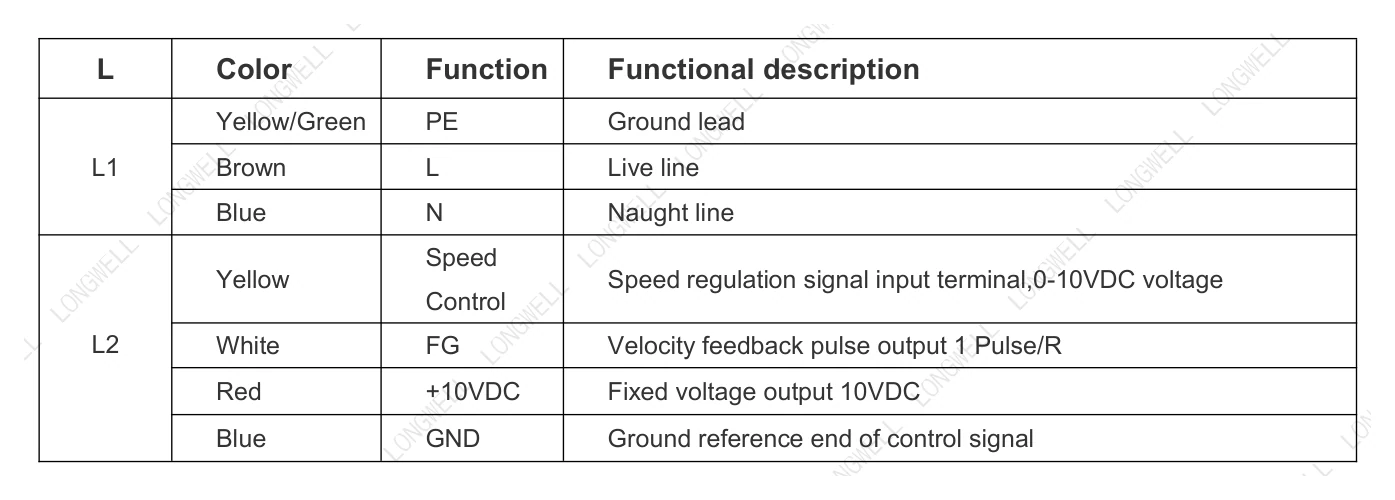

LWFE3G120-072SS-01 is a LONGWELL EC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø120 mm, rated 230 V EC, maximum airflow 268 m³/h, maximum static pressure 443 Pa, noise 60 dB(A), input power 42 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G120-072SS-01 |
|---|---|
| Series | LWFE3G120 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.3 A |
| Input power | 42 W |
| Speed | 2,200 rpm |
| Max. airflow | 268 m³/h |
| Max. airflow (CFM) | 139 CFM |
| Max. static pressure | 443 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -30 ~ 65℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |

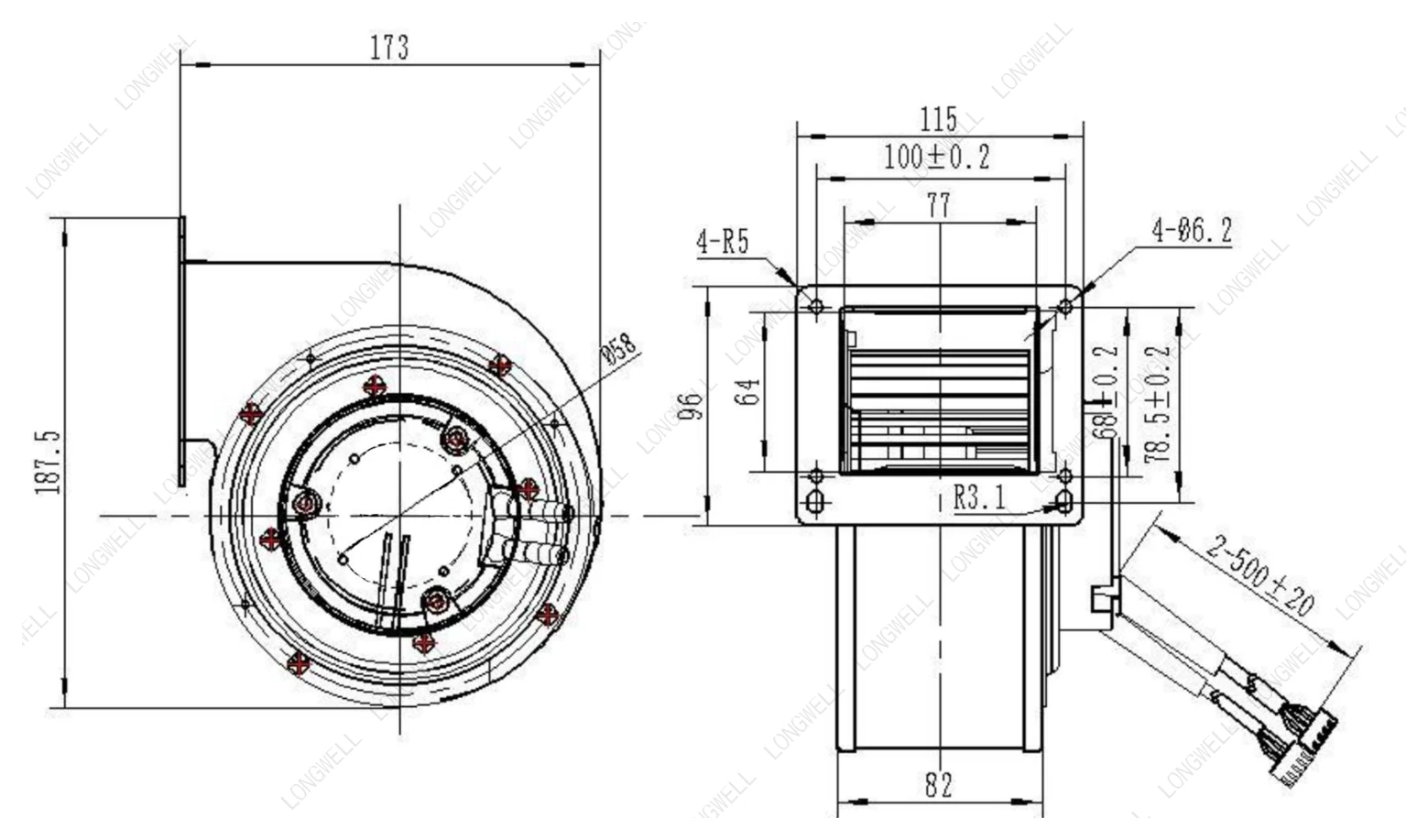

| Impeller diameter | Ø120 mm |
| Rotor diameter | 72 |
| Impeller material | Galvanized sheet( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø120 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G120-072SS-01 this model | 268 m³/h | 443 Pa | 2,200 rpm | 42 W | 60 dB(A) | 230 V | |
| LWAE12038SL-03 | 77 m³/h | 54.33 Pa | 2,500 rpm | — | 40 dB(A) | 100-240 V | View |
| LWAE12038SM-02 | 91.03 m³/h | 73.74 Pa | 3,000 rpm | — | 43 dB(A) | 100-240 V | View |
| LWAE12038SL-06 | 94.72 m³/h | 59.07 Pa | 2,500 rpm | — | 40 dB(A) | 100-240 V | View |
| LWAE12038SH-01 | 108.21 m³/h | 90.98 Pa | 3,500 rpm | — | 47 dB(A) | 100-240 V | View |
| LWAE12038SM-05 | 115.01 m³/h | 80.53 Pa | 3,000 rpm | — | 43 dB(A) | 100-240 V | View |
| LWAE12038SH-04 | 139.1 m³/h | 111.47 Pa | 3,500 rpm | — | 47 dB(A) | 100-240 V | View |
| LWFE3G120-072NS-01 | 350 m³/h | 412 Pa | 3,230 rpm | 90 W | 67 dB(A) | 230 V | View |
| LWFE3G120-072SS-02 | 361 m³/h | 649 Pa | 3,650 rpm | 75 W | 61 dB(A) | 230 V | View |
| LWFE3G120-072DS-01 | 433 m³/h | 263 Pa | 1,900 rpm | 70 W | 59 dB(A) | 230 V | View |
| LWCE-120380SN-06 | 900 m³/h | 68 Pa | 1,350 rpm | 53 W | 63 dB(A) | 230 V | View |
| LWCE-120560SN-06 | 1,350 m³/h | 102 Pa | 1,350 rpm | 70 W | 65 dB(A) | 230 V | View |
| LWCE-120680SN-06 | 1,600 m³/h | 123 Pa | 1,350 rpm | 80 W | 67 dB(A) | 230 V | View |
| LWCE-120780SN-06 | 1,900 m³/h | 141 Pa | 1,350 rpm | 92 W | 71 dB(A) | 230 V | View |
| LWCE-120900SN-06 | 2,100 m³/h | 161 Pa | 1,350 rpm | 105 W | 72 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
