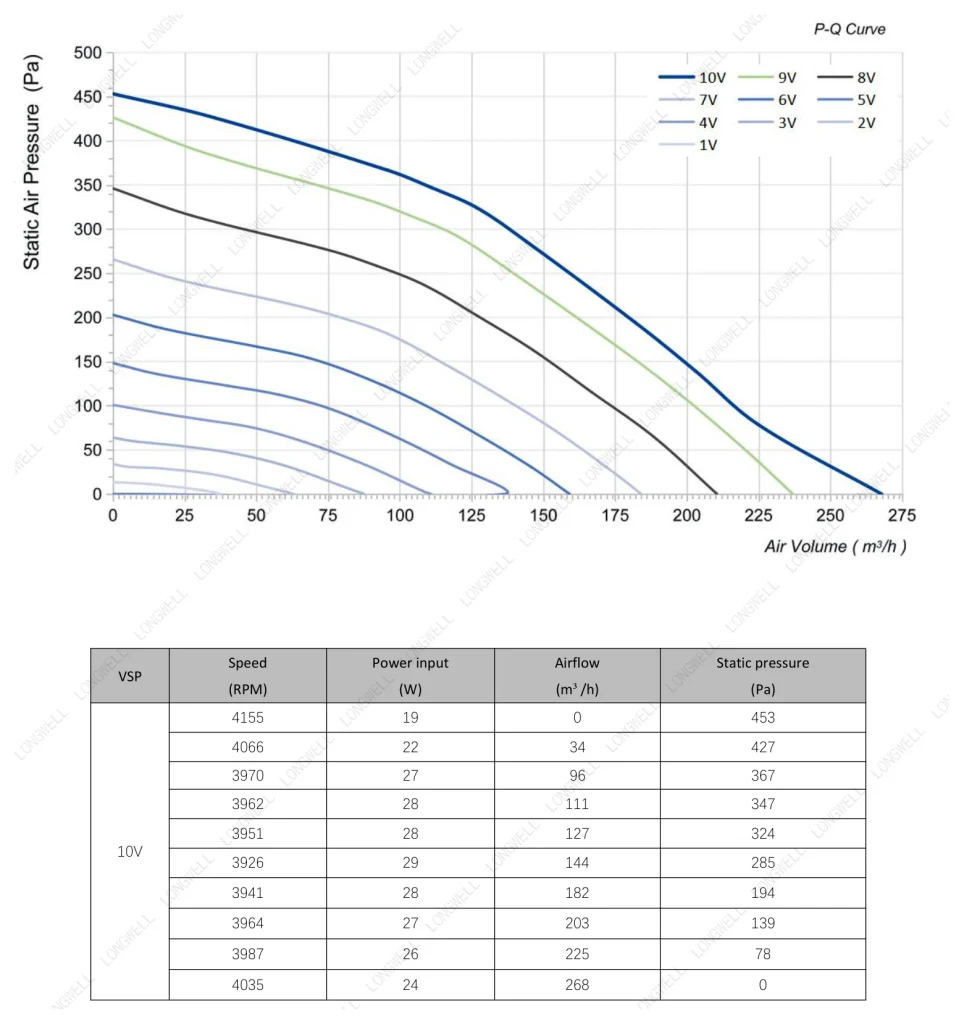

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ133 mm5.2 in
- Max airflow267.8 m³/h158 CFM
- Max static pressure453.2 Pa1.82 in. wg
- Voltage115 V
- Speed3,800 rpm
- Input power30 W
- Noise63 dB(A)

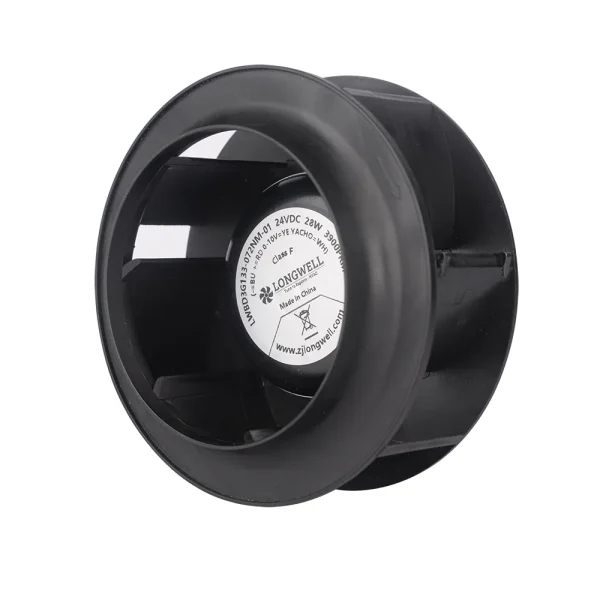

LWBE3G133-072NU-09 EC Backward Curved Centrifugal Fan Ø133 mm
Ø133 mm | EC | Max airflow 267.8 m³/h | Max static pressure 453.2 Pa | 63 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBE3G133-072NU-09
PDFCatalog · 768 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G133-072NU-09 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø133 mm, rated 115 V EC, maximum airflow 267.8 m³/h, maximum static pressure 453.2 Pa, noise 63 dB(A), input power 30 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G133-072NU-09 |
|---|---|
| Series | LWBE3G133 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 115 V |
| Frequency | 50 Hz |
| Current | 0.46 A |
| Input power | 30 W |
| Speed | 3,800 rpm |
| Max. airflow | 267.8 m³/h |
| Max. static pressure | 453.2 Pa |
| Noise | 63 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 72 |
| Impeller material | PA6+GF30% ( Impeller ) |
| Protection class | IP55 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø133 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G133-072NU-09 this model | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 115 V | |
| LWFE3G133-072PS-02 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 230 V | View |
| LWBE3G133-072NS-07 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 230 V | View |
| LWFE3G133-072SS-01 | 319 m³/h | 191 Pa | 2,050 rpm | 65 W | 68 dB(A) | 230 V | View |
| LWFE3G133-072PS-03 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 230 V | View |
| LWBE3G133-072NU-10 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 115 V | View |
| LWBE3G133-072NS-08 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 230 V | View |
| LWFE3G133-072NS-01 | 433 m³/h | 288 Pa | 2,290 rpm | 85 W | 63 dB(A) | 230 V | View |
| LWBE3G133-072PS-06 | 473 m³/h | 609 Pa | 5,200 rpm | 72 W | 68 dB(A) | 230 V | View |
| LWBE3G133-072NS-06 | 473 m³/h | 609 Pa | 5,220 rpm | 72 W | 68 dB(A) | 230 V | View |
| LWFE3G133-092DS-03 | 690 m³/h | 330 Pa | 1,550 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWFE3G133-072DS-01 | 773 m³/h | 288 Pa | 1,750 rpm | 105 W | 69 dB(A) | 230 V | View |
| LWFE3G133-072DS-02 | 979 m³/h | 484 Pa | 1,450 rpm | 120 W | 70 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
