- ImpellerØ40 mm
- Max airflow104 m³/h
- Max static pressure24 Pa
- Voltage12 V
- Speed2,400 rpm
- Input power2.4 W
- Noise35 dB(A)

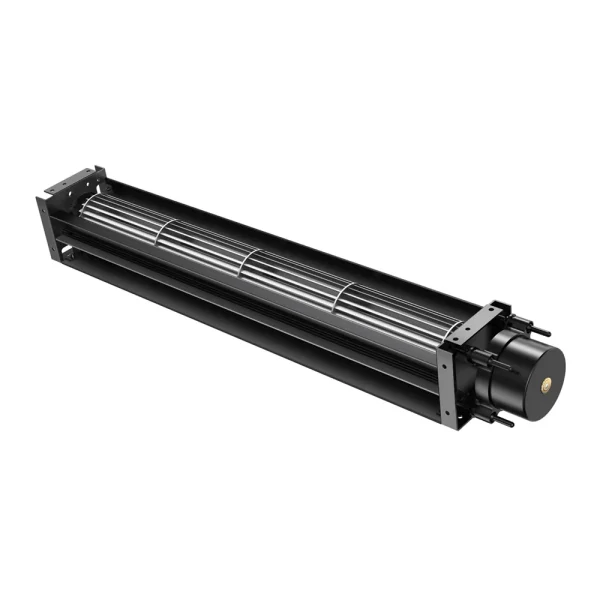

LWCD-40290LN-06 DC Cross Flow Fan Ø40 mm
Ø40 mm | DC | Max airflow 104 m³/h | Max static pressure 24 Pa | 35 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

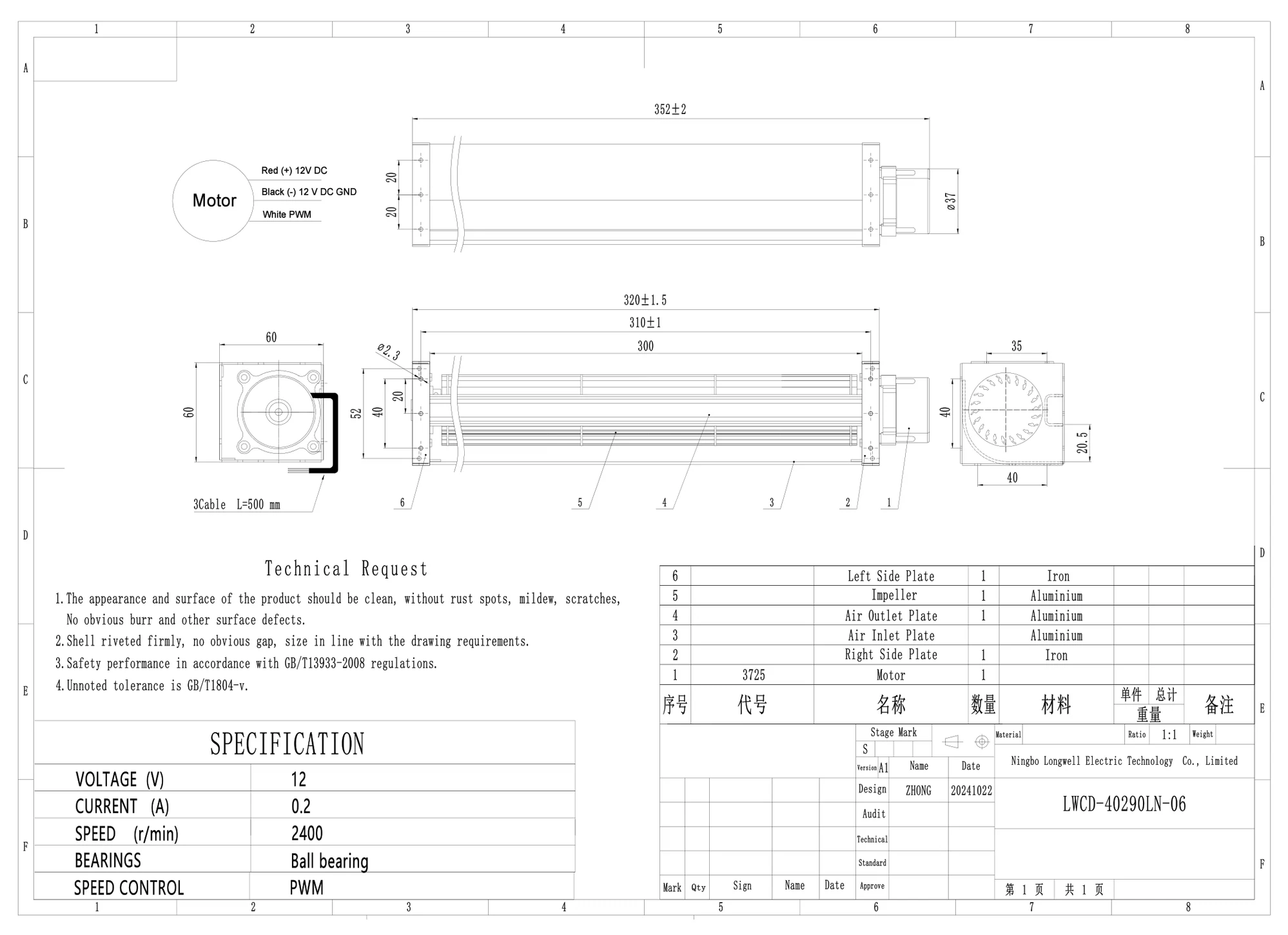

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCD-40290LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø40 mm, rated 12 V DC, maximum airflow 104 m³/h, maximum static pressure 24 Pa, noise 35 dB(A), input power 2.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-40290LN-06 |
|---|---|
| Series | LWCD40290 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 12 V |
| Current | 0.2 A |
| Input power | 2.4 W |
| Speed | 2,400 rpm |
| Max. airflow | 104 m³/h |
| Max. static pressure | 24 Pa |
| Noise | 35 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø40 mm |
| Outlet length | 300mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy 40,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment Operating temperature: -20~50 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -25~60 °C |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T8689 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD40290: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø40 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-40290LN-06 this model | 104 m³/h | 24 Pa | 2,400 rpm | 2.4 W | 35 dB(A) | 12 V | |
| LWCD-40190MN-07 | 69 m³/h | 22 Pa | 2,400 rpm | 2.16 W | 34 dB(A) | 24 V | View |
| LWCD-40250MN-07 | 87 m³/h | 23 Pa | 2,400 rpm | 2.64 W | 35 dB(A) | 24 V | View |
| LWCD-40290MN-07 | 104 m³/h | 24 Pa | 2,400 rpm | 3.12 W | 35 dB(A) | 24 V | View |
| LWCD-40350MN-07 | 121 m³/h | 24 Pa | 2,400 rpm | 3.6 W | 36 dB(A) | 24 V | View |
| LWCD-40350LN-06 | 121 m³/h | 24 Pa | 2,400 rpm | 2.88 W | 36 dB(A) | 12 V | View |
| LWCD-40420MN-07 | 146 m³/h | 25 Pa | 2,400 rpm | 4.08 W | 37 dB(A) | 24 V | View |
| LWCD-40420LN-06 | 146 m³/h | 25 Pa | 2,400 rpm | 3.48 W | 37 dB(A) | 12 V | View |
| LWCD-40530MN-06 | 176 m³/h | 25 Pa | 2,400 rpm | 4.56 W | 37 dB(A) | 24 V | View |
| LWCD-40610MN-06 | 203 m³/h | 26 Pa | 2,400 rpm | 5.04 W | 37 dB(A) | 24 V | View |
| LWCD-40700MN-06 | 232 m³/h | 26 Pa | 2,400 rpm | 5.52 W | 38 dB(A) | 24 V | View |
| LWCD-40800MN-06 | 236 m³/h | 25 Pa | 2,000 rpm | 6 W | 35 dB(A) | 24 V | View |
| LWCD-40854MN-06 | 252 m³/h | 26 Pa | 2,000 rpm | 6.72 W | 35 dB(A) | 24 V | View |
| LWCD-40920MN-06 | 272 m³/h | 26 Pa | 2,000 rpm | 7.44 W | 36 dB(A) | 24 V | View |
| LWCD-401055MN-06 | 311 m³/h | 27 Pa | 2,000 rpm | 8.4 W | 36 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
