- Frame size254 mm
- Max airflow890 m³/h
- Max static pressure251.58 Pa
- Voltage220 V
- Speed2,600 rpm
- Noise68 dB(A)
LWAE25489SH-01 EC Cooling Fan 254 mm
254 mm | EC | Max airflow 890 m³/h | Max static pressure 251.58 Pa | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAE25489SH-01 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 254 mm, rated 220 V EC, maximum airflow 890 m³/h, maximum static pressure 251.58 Pa, noise 68 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE25489SH-01 |
|---|---|
| Series | LWAE25489 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Current | 0.61 A |
| Speed | 2,600 rpm |
| Max. airflow | 890 m³/h |
| Max. static pressure | 251.58 Pa |
| Noise | 68 dB(A) |
| Frame size | 254 mm |

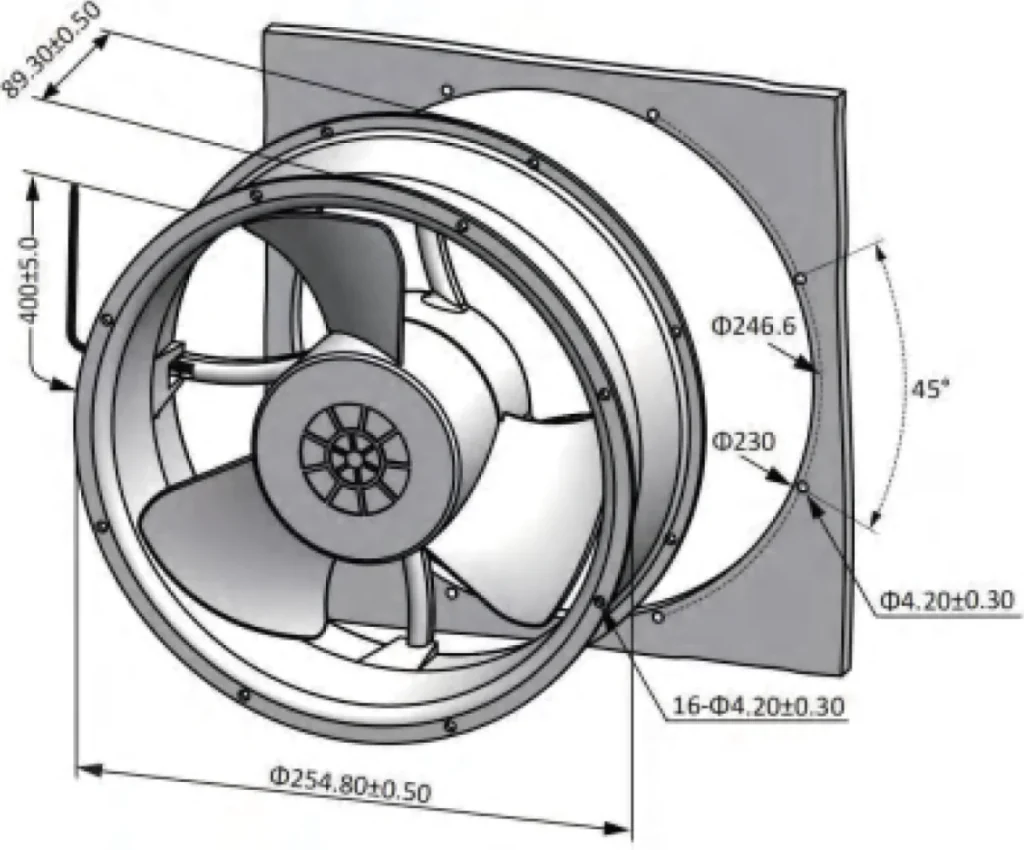

| Dimensions | 254x89mm |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAE25489: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (254 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE25489SH-01 this model | 890 m³/h | 251.58 Pa | 2,600 rpm | — | 68 dB(A) | 220 V | |
| LWAE25489SL-03 | 547.69 m³/h | 154.44 Pa | 1,600 rpm | — | 42 dB(A) | 220 V | View |
| LWAE25489SM-02 | 718.85 m³/h | 204.25 Pa | 2,100 rpm | — | 55 dB(A) | 220 V | View |
| LWDD10-8-EC | 785 m³/h | 528 Pa | 1,440 rpm | — | — | 220 V | View |
| LWDD10-10-EC | 2,923 m³/h | 608 Pa | 1,440 rpm | — | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
