Frame size200 mm7.9 in
Max airflow951.6 m³/h560 CFM
Max static pressure168 Pa0.67 in. wg
Voltage24 V
Speed2,500 rpm
Input power48 W
Noise62 dB(A)

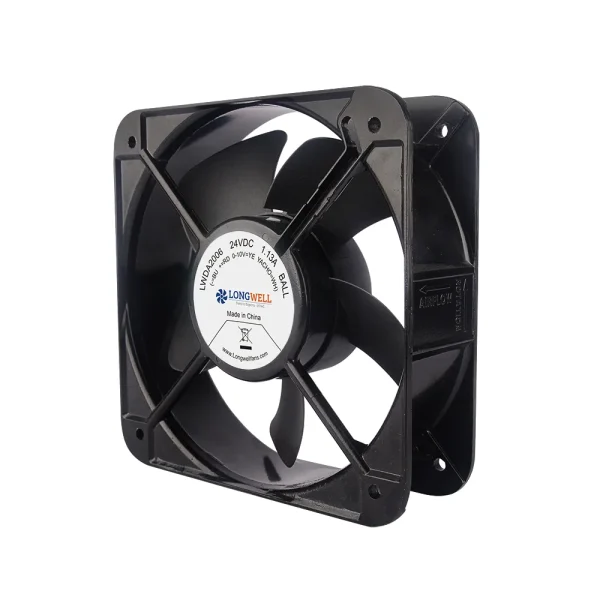

LWAD20060MM-02 DC Axial Cooling Fan 200 mm

200 mm | DC | Max airflow 951.6 m³/h | Max static pressure 168 Pa | 62 dB(A)

SKU: LWAD20060MM-02 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD20060MM-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAD20060MM-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

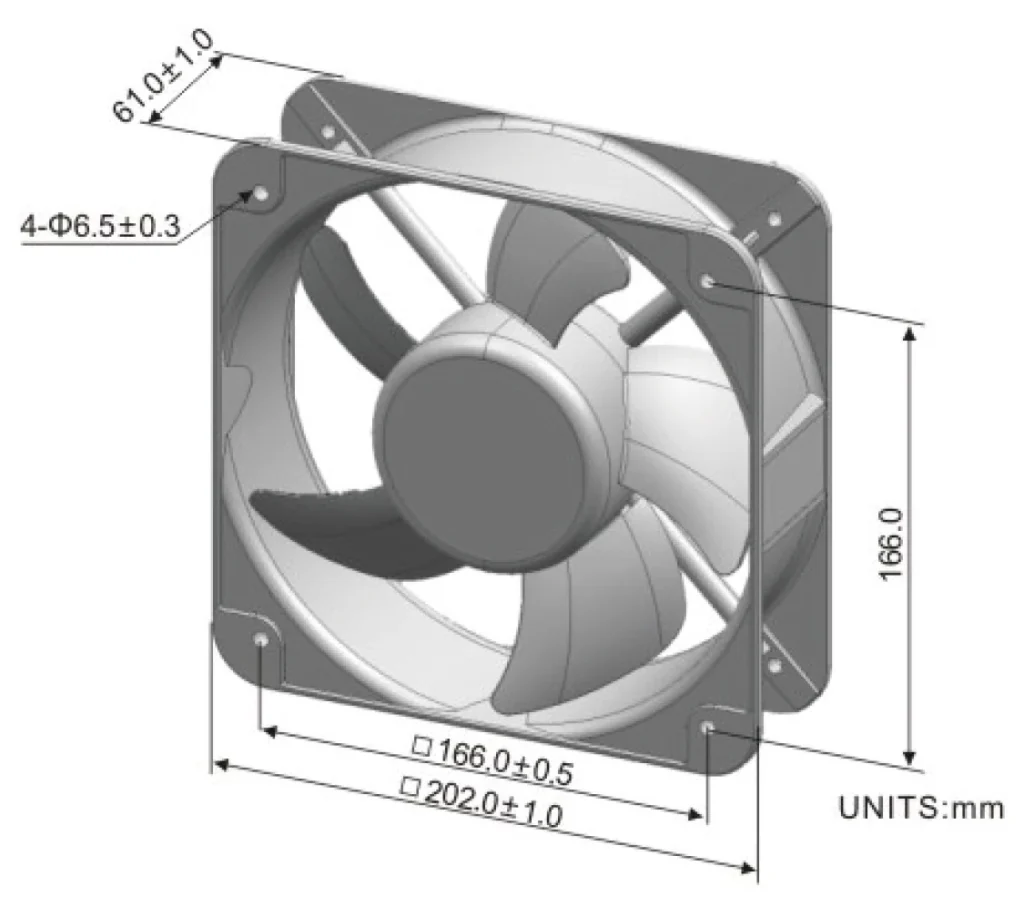

LWAD20060MM-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWAD20060MM-02

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD20060MM-02 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 200 mm, rated 24 V DC, maximum airflow 951.6 m³/h, maximum static pressure 168 Pa, noise 62 dB(A), input power 48 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD20060MM-02
Series	LWAD20060
Motor type	DC
Rated voltage	24 V
Current	2 A
Input power	48 W
Speed	2,500 rpm
Max. airflow	951.6 m³/h
Max. static pressure	168 Pa
Noise	62 dB(A)
Humidity	5 % RH ~ 65% RH
Frame size	200 mm
Dimensions	200x60mm
Impeller material	Plastic(UL94-VO)
Bearing	Type : Two Ball Bearings

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD20060: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (200 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD20060MM-02 this model	951.6 m³/h	168 Pa	2,500 rpm	48 W	62 dB(A)	24 V
LWDD-200H-MBN-12	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	48 V	View
LWDD-200M-MBN-11	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	24 V	View
LWDD-200L-MBN-10	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	12 V	View
LWAD20060HL-02	761.4 m³/h	107 Pa	2,000 rpm	28.8 W	57.2 dB(A)	48 V	View
LWAD20060ML-03	761.4 m³/h	107 Pa	2,000 rpm	36 W	57.2 dB(A)	24 V	View
LWAD20060HM-01	951.6 m³/h	168 Pa	2,500 rpm	72 W	62 dB(A)	48 V	View
LWAD3G200ZB-7MGW-08	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MGW-07	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZB-7MEW-06	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MEW-05	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZB-7MNW-04	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MNW-03	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200HS-7MKB-02	1,236 m³/h	278 Pa	3,000 rpm	60 W	62 dB(A)	48 V	View
LWAD3G200MS-7MKB-01	1,236 m³/h	278 Pa	3,000 rpm	60 W	62 dB(A)	24 V	View
