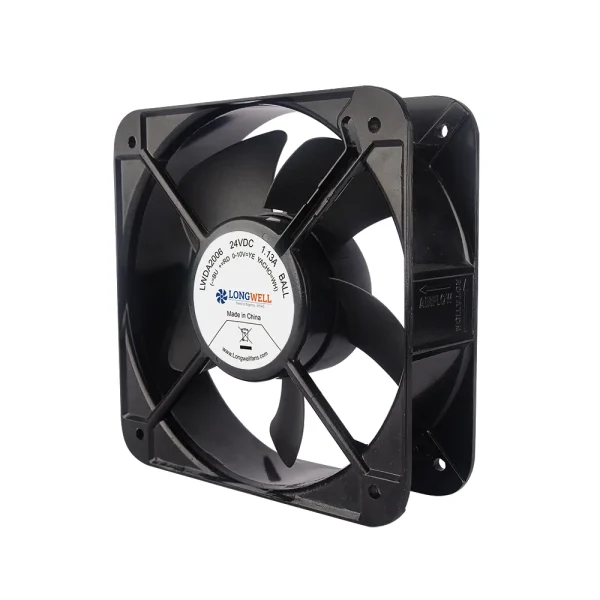

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size200 mm7.9 in
Max airflow951.6 m³/h560 CFM
Max static pressure168 Pa0.67 in. wg
Voltage48 V
Speed2,500 rpm
Input power72 W
Noise62 dB(A)

LWAD20060HM-01 DC Axial Cooling Fan 200 mm

200 mm | DC | Max airflow 951.6 m³/h | Max static pressure 168 Pa | 62 dB(A)

SKU: LWAD20060HM-01 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWAD20060HM-012 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Drive & control cabinets Access control Automation cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAD20060HM-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD20060HM-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWAD20060HM-01

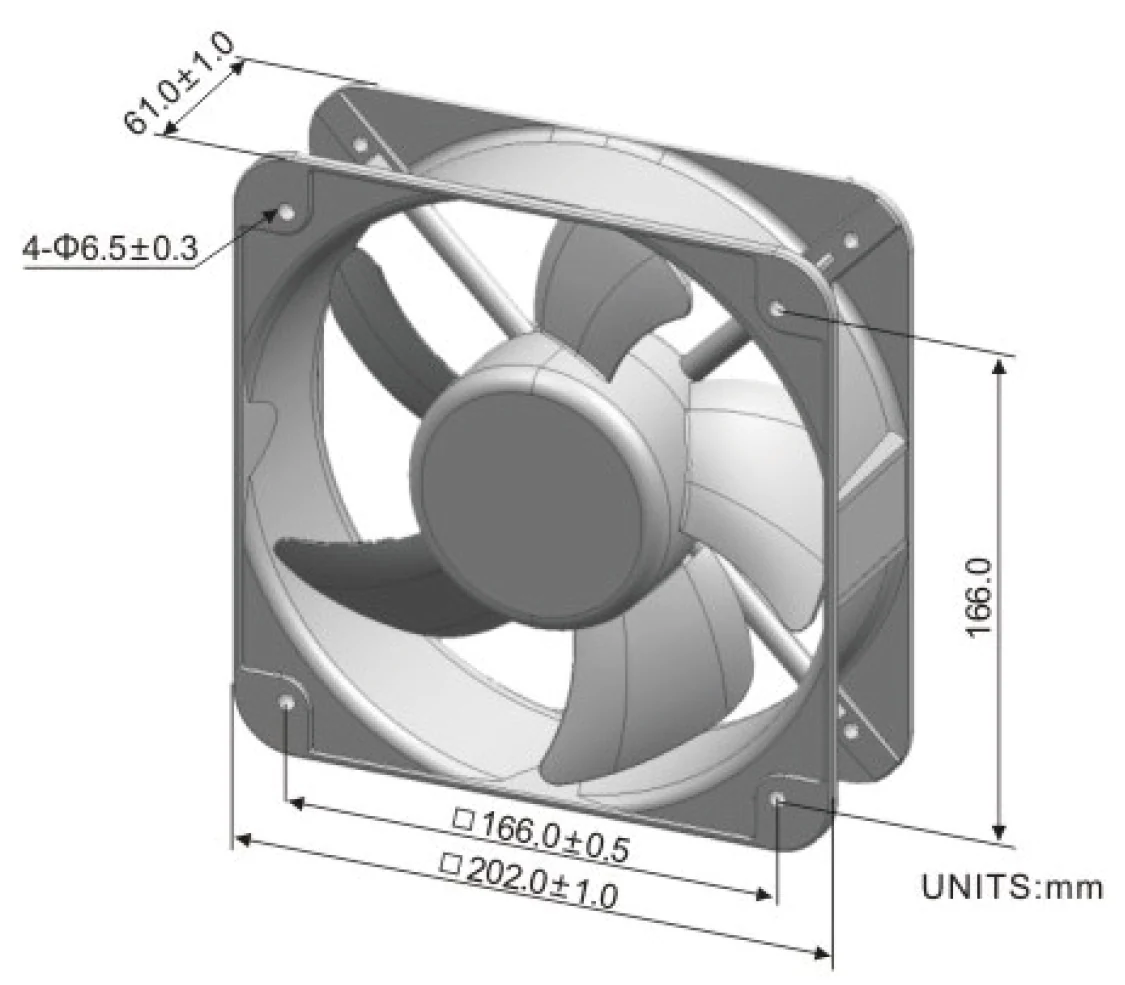

LWAD20060HM-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWAD20060HM-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD20060HM-01

LWAD20060HM-01 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 200 mm, rated 48 V DC, maximum airflow 951.6 m³/h, maximum static pressure 168 Pa, noise 62 dB(A), input power 72 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD20060HM-01
Series	LWAD20060
Motor type	DC
Rated voltage	48 V
Current	1.5 A
Input power	72 W
Speed	2,500 rpm
Max. airflow	951.6 m³/h
Max. static pressure	168 Pa
Noise	62 dB(A)
Humidity	5 % RH ~ 90% RH
Frame size	200 mm
Dimensions	200x60mm
Impeller material	Plastic(UL94-VO)
Bearing	Type : Two Ball Bearings

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD20060: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
