- ImpellerØ250 mm9.8 in
- Max airflow1,916 m³/h1,127 CFM
- Max static pressure201 Pa0.81 in. wg
- Voltage220/230 V
- Speed2,950 rpm
- Input power115 W
- Noise68 dB(A)

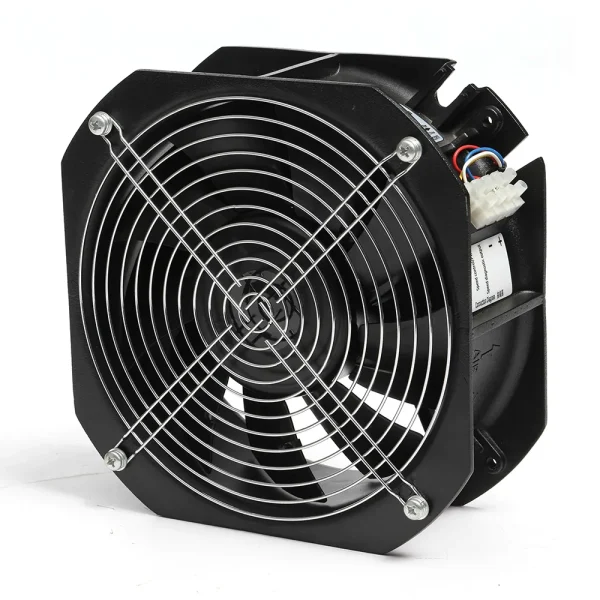

LWAE3G250SS-7PKW-10 EC Axial Fan Ø250 mm
Ø250 mm | EC | Max airflow 1,916 m³/h | Max static pressure 201 Pa | 68 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Cross-reference: same impeller size class as ebm-papst W3G250 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

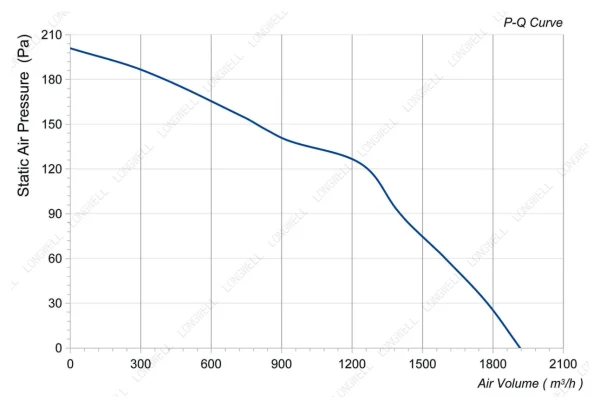

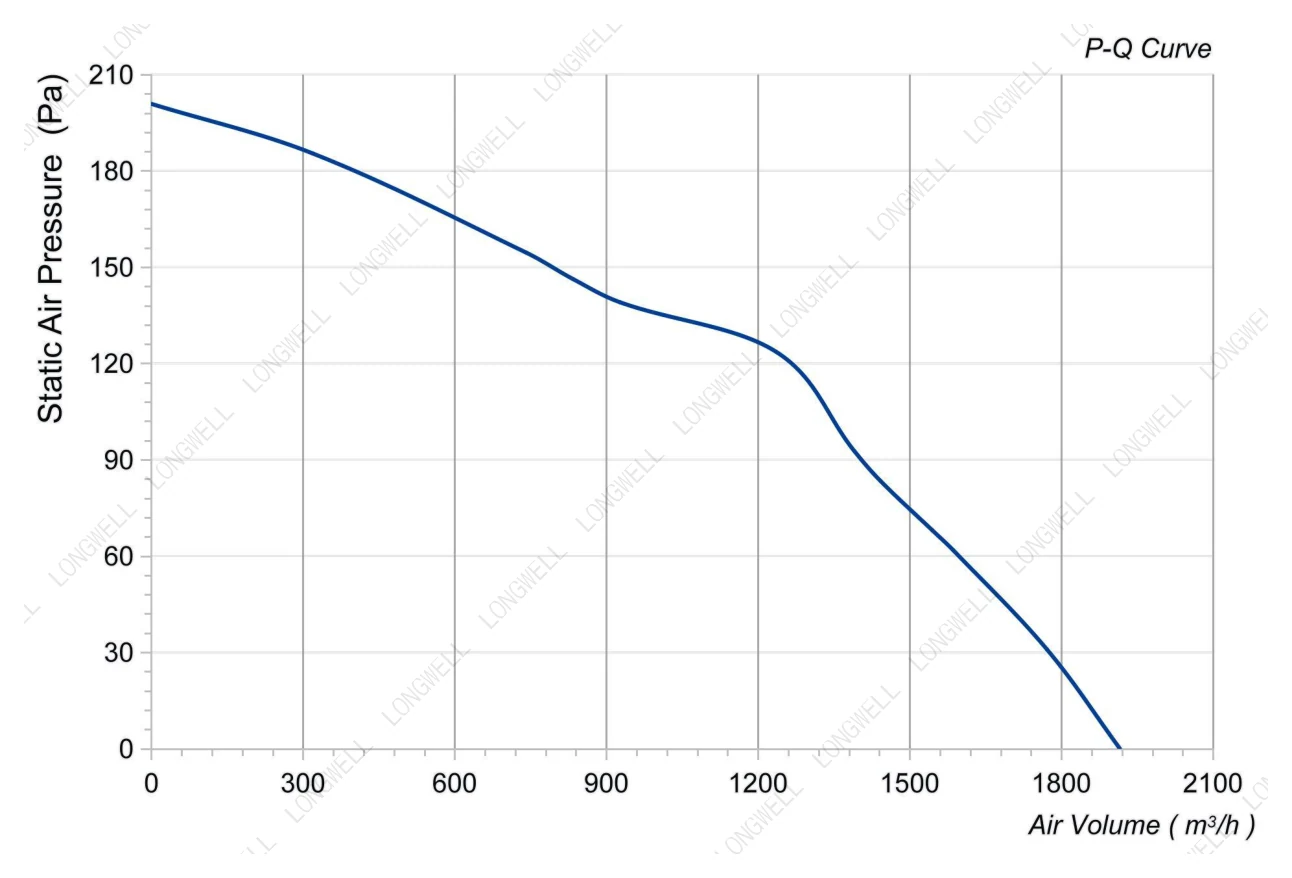

Performance curve (P-Q) LWAE3G250SS-7PKW-10
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220/230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWAE3G250SS-7PKW-10
Longwell EC Axial Fan – Energy-Efficient, Embrace a Fresh Future | LWAE3G250SS-7MKW-11 · open in video library
LWAE3G250 Series Axial Fan: Efficient DC Ventilation Solution | LWAE3G250SS-7MKW-11 · open in video library

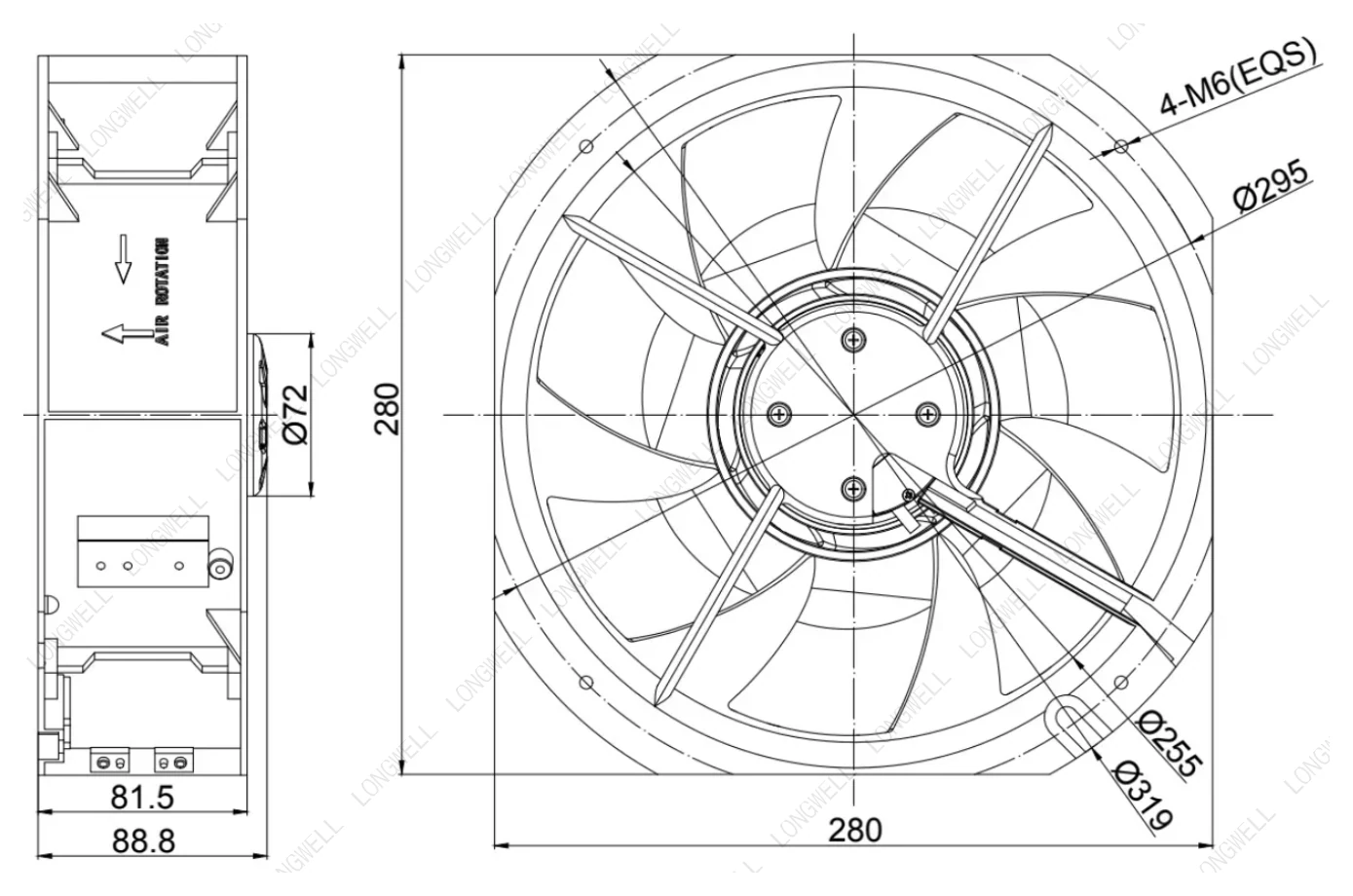

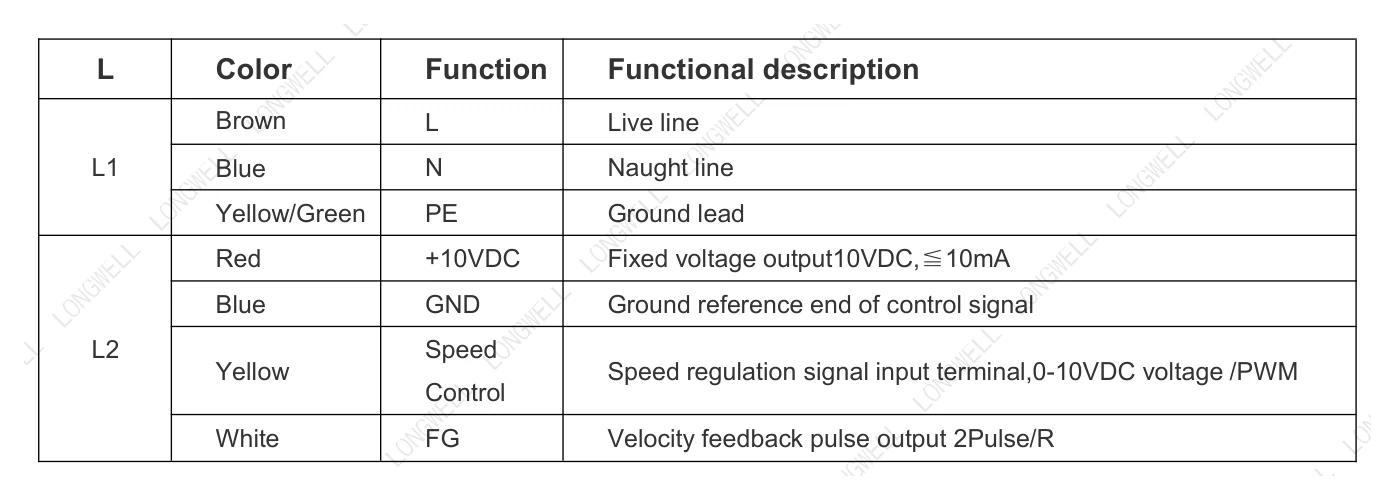

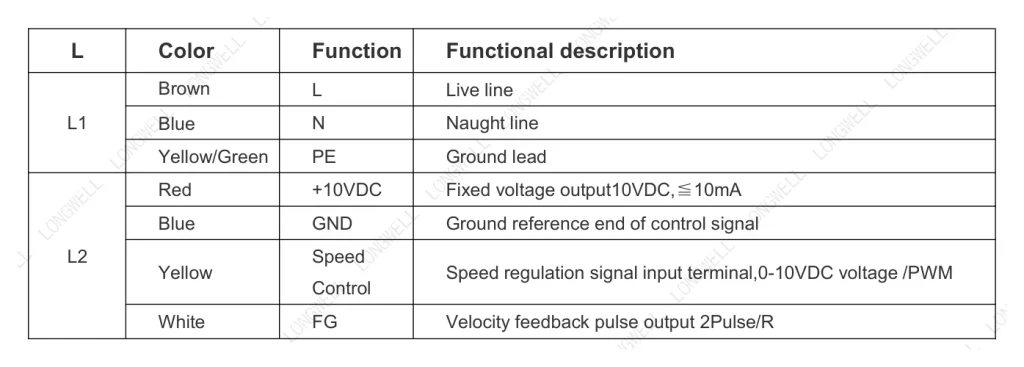

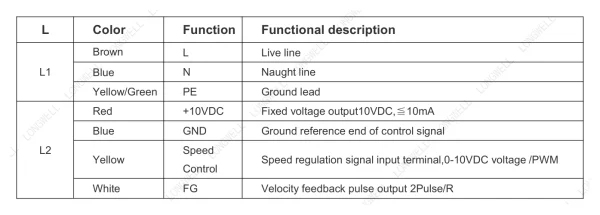

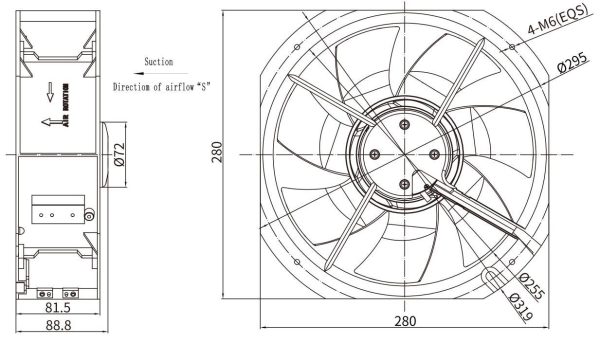

Drawing, Curve & Wiring LWAE3G250SS-7PKW-10
Files for LWAE3G250SS-7PKW-10: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAE3G250SS-7PKW-10
LWAE3G250SS-7PKW-10 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø250 mm, rated 220/230 V EC, maximum airflow 1,916 m³/h, maximum static pressure 201 Pa, noise 68 dB(A), input power 115 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G250SS-7PKW-10 |
|---|---|
| Series | LWAE3G250 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50 Hz |
| Current | 0.85 A |
| Input power | 115 W |
| Speed | 2,950 rpm |
| Max. airflow | 1,916 m³/h |
| Max. airflow (CFM) | 1,127 CFM |
| Max. static pressure | 201 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 5~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø250 mm |
| Impeller material | Plastic ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
