EC Axial Fan — series representative image for LWAE3G250SS-7MEW-03

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ250 mm9.8 in
Max airflow1,751 m³/h1,124 CFM
Max static pressure290 Pa1.16 in. wg
Voltage220/230 V
Speed3,150 rpm
Input power170 W
Noise69 dB(A)

LWAE3G250SS-7MEW-03 EC Axial Fan Ø250 mm

Ø250 mm | EC | Max airflow 1,751 m³/h | Max static pressure 290 Pa | 69 dB(A)

SKU: LWAE3G250SS-7MEW-03 Categories: Axial Fans, EC Axial Fans, Impeller Ø200–250 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC EC Axial fans · SKU on PDF p. 13

All files for LWAE3G250SS-7MEW-036 files · direct download

PDFFull product catalogue · model on PDF p. 13 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as ebm-papst W3G250 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Heat pumps Hybrid heat-pump systems Adiabatic cooling Process cooling All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAE3G250SS-7MEW-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE3G250SS-7MEW-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWAE3G250SS-7MEW-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 220/230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWAE3G250SS-7MEW-03

Longwell EC Axial Fan – Energy-Efficient, Embrace a Fresh Future | LWAE3G250SS-7MKW-11 · open in video library

LWAE3G250 Series Axial Fan: Efficient DC Ventilation Solution | LWAE3G250SS-7MKW-11 · open in video library

Drawing, Curve & Wiring LWAE3G250SS-7MEW-03

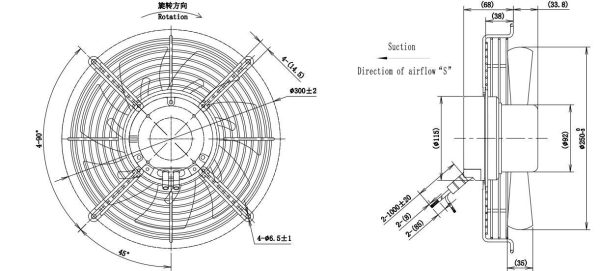

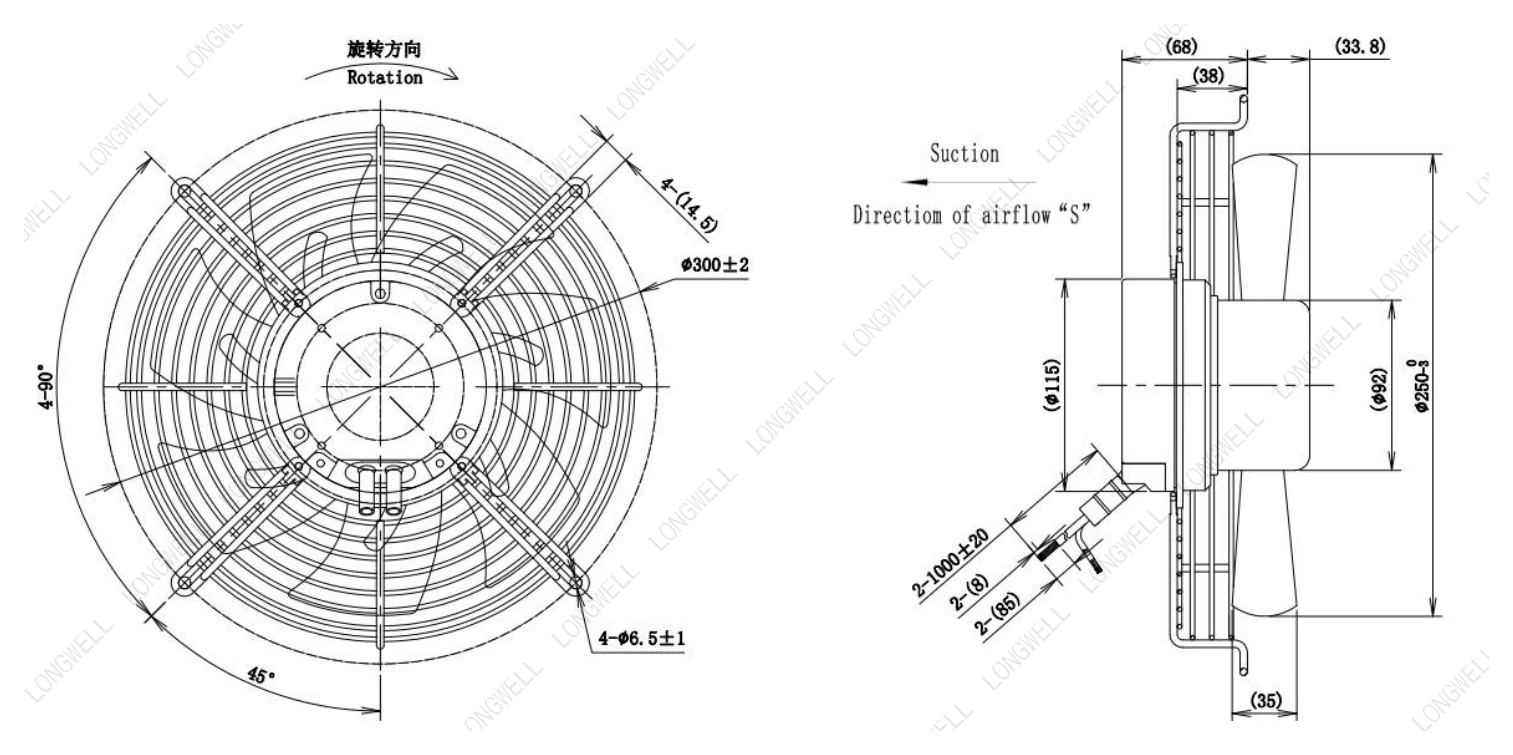

LWAE3G250SS-7MEW-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

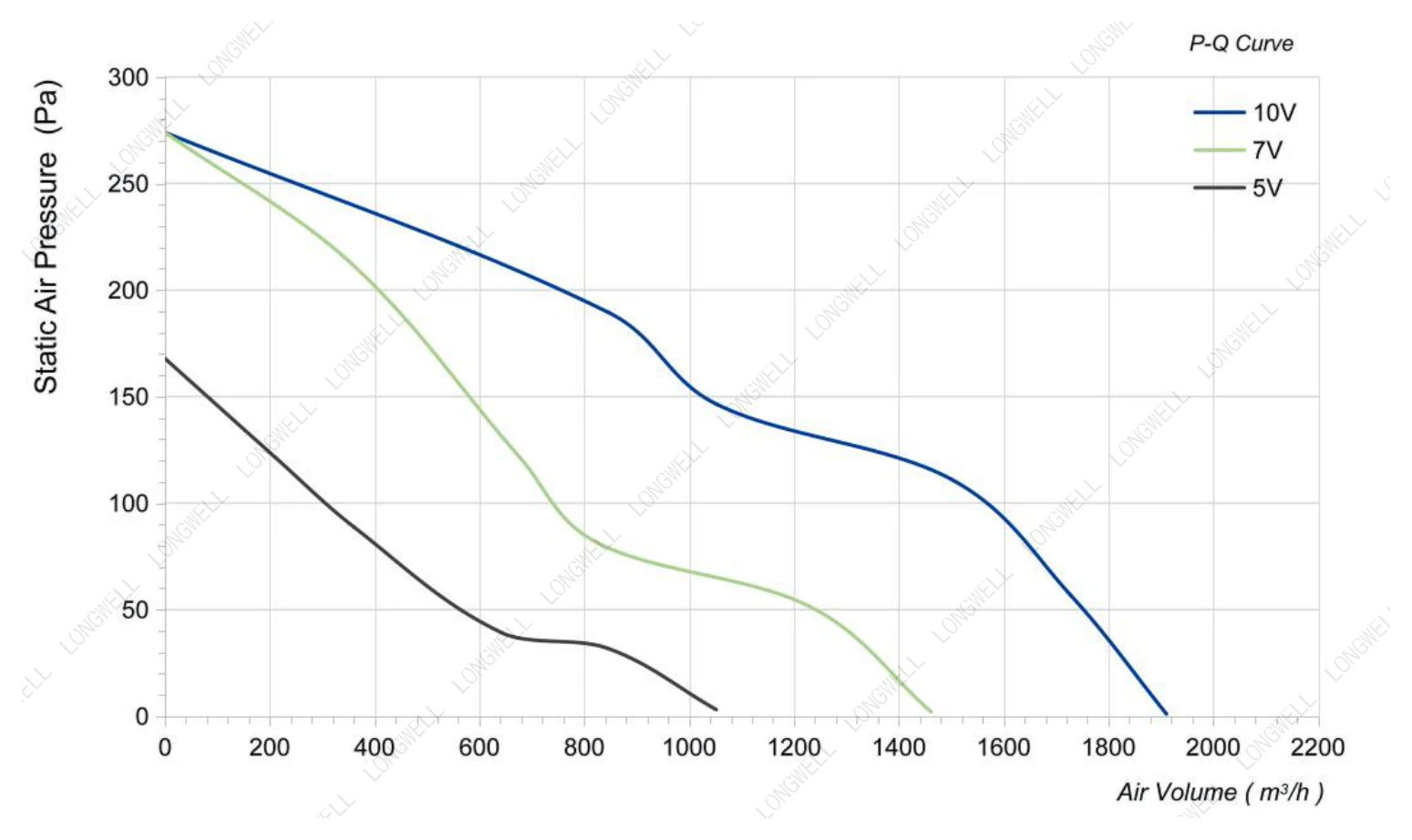

LWAE3G250SS-7MEW-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

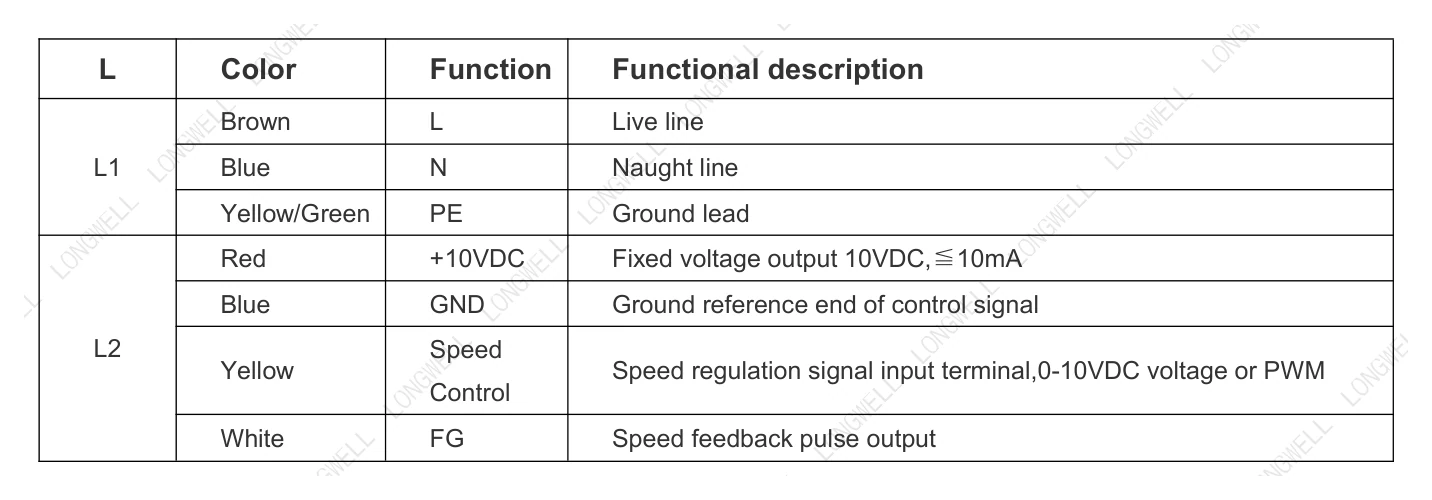

LWAE3G250SS-7MEW-03 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAE3G250SS-7MEW-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE3G250SS-7MEW-03

LWAE3G250SS-7MEW-03 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø250 mm, rated 220/230 V EC, maximum airflow 1,751 m³/h, maximum static pressure 290 Pa, noise 69 dB(A), input power 170 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G250SS-7MEW-03
Series	LWAE3G250
Motor type	EC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	176 ~ 264 V
Frequency	50/60 Hz
Current	0.9 A
Input power	170 W
Speed	3,150 rpm
Max. airflow	1,751 m³/h
Max. airflow (CFM)	1,124 CFM
Max. static pressure	290 Pa
Noise	69 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Impeller material	Sheet steel ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Net weight	2.8
Speed control	Control input 0~10VDC or PWM
Control signal	Control signal VSP voltage range1VDC~9.5VDC(During normal operation, when the VSP voltage is below 1.0VDC, the motor switches from operating mode to standby mode)
PWM input	PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% .
Speed feedback	Tach output: 1 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Over-temperature protection, Over-current protection, Locked-rotor protection’
Soft start	Delay time <20 seconds to full speed

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
