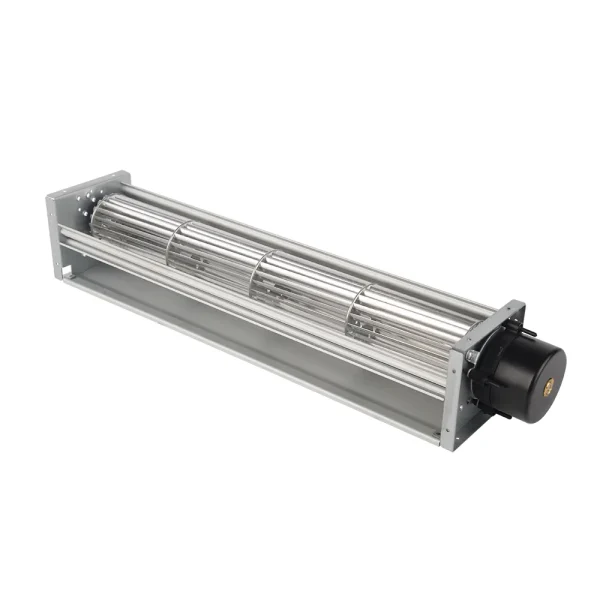

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ45 mm1.8 in
Max airflow83 m³/h49 CFM
Max static pressure22 Pa0.09 in. wg
Voltage24 V
Speed2,000 rpm
Input power5.04 W
Noise37 dB(A)

LWCD-45150MN-06 DC Cross Flow Fan Ø45 mm

Ø45 mm | DC | Max airflow 83 m³/h | Max static pressure 22 Pa | 37 dB(A)

SKU: LWCD-45150MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 12

All files for LWCD-45150MN-063 files · direct download

PDFFull product catalogue · model on PDF p. 12 WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Electric heaters Display cases Air curtains Air purifiers All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Get a quote · LWCD-45150MN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCD-45150MN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

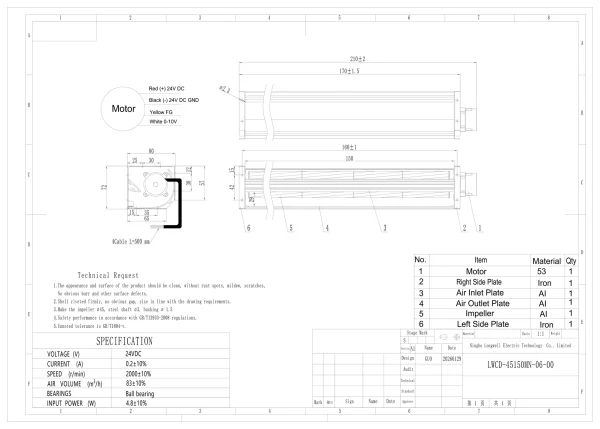

Dimensional drawing LWCD-45150MN-06

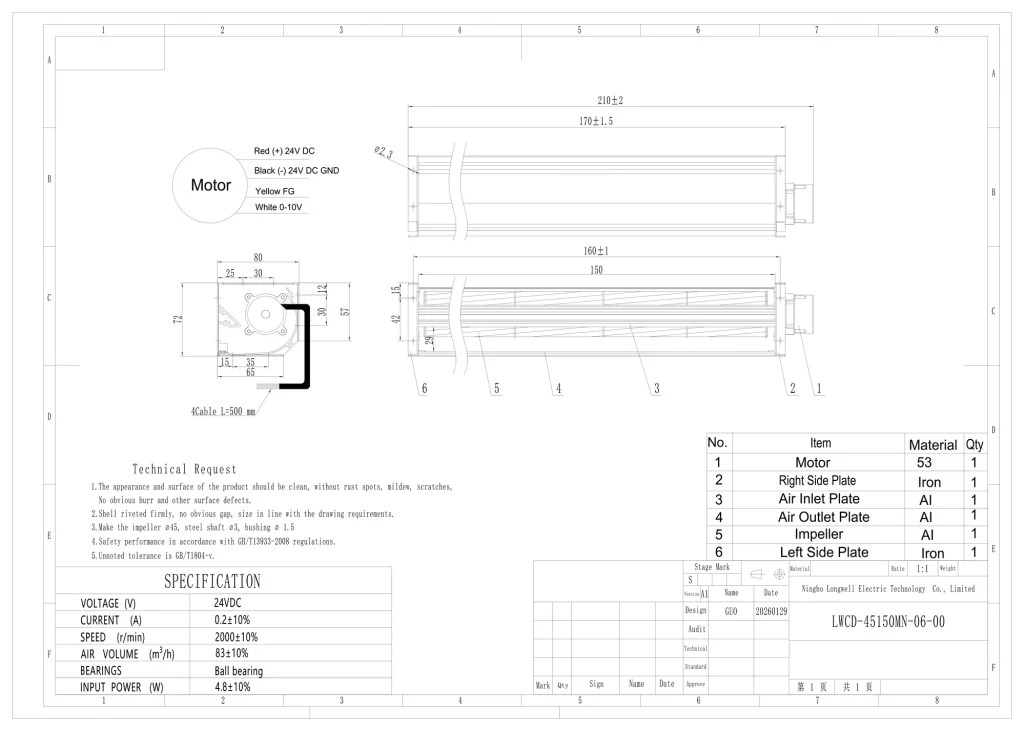

LWCD-45150MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWCD-45150MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCD-45150MN-06

LWCD-45150MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø45 mm, rated 24 V DC, maximum airflow 83 m³/h, maximum static pressure 22 Pa, noise 37 dB(A), input power 5.04 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-45150MN-06
Series	LWCD45150
Motor type	DC
Inlet	Single inlet
Rated voltage	24 V
Current	0.21 A
Input power	5.04 W
Speed	2,000 rpm
Max. airflow	83 m³/h
Max. static pressure	22 Pa
Noise	37 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø45 mm
Outlet length	150mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD45150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Product-line certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO management-system certificate and the certificates whose model list covers this model. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

ETLIntertek Authorization to Mark, control no. 5022563; the covered model ranges are stated on the document.

ETL Authorization to Mark · report 220400509HAN-001 · LWCD DC cross-flow fans — LONGWELL certificate

PDFETL Authorization to Mark · report 220400509HAN-001 · LWCD DC cross-flow fans

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWCD-45150MN-06

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø45 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-45150MN-06 this model	83 m³/h	22 Pa	2,000 rpm	5.04 W	37 dB(A)	24 V
LWCD-4590MN-06	50 m³/h	21 Pa	2,000 rpm	4.08 W	37 dB(A)	24 V	View
LWCD-45190MN-06	105 m³/h	22 Pa	2,000 rpm	6.48 W	37 dB(A)	24 V	View
LWCD-45250MN-06	138 m³/h	23 Pa	2,000 rpm	7.2 W	38 dB(A)	24 V	View
LWCD-45310MN-06	172 m³/h	24 Pa	2,000 rpm	8.4 W	41 dB(A)	24 V	View
LWCD-45350MN-06	194 m³/h	24 Pa	2,000 rpm	9.12 W	42 dB(A)	24 V	View
LWCD-45530MN-06	277 m³/h	28 Pa	2,000 rpm	11.76 W	44 dB(A)	24 V	View
LWCD-45630MN-06	329 m³/h	28 Pa	2,000 rpm	16.8 W	45 dB(A)	24 V	View
LWCD-45700MN-06	365 m³/h	28 Pa	2,000 rpm	20.4 W	46 dB(A)	24 V	View
LWCD-45750MN-06	392 m³/h	28 Pa	2,000 rpm	22.56 W	46 dB(A)	24 V	View
LWCD-45870MN-06	454 m³/h	26 Pa	2,000 rpm	19.2 W	47 dB(A)	24 V	View
