Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ180 mm7.1 in
Max airflow787.5 m³/h464 CFM
Max static pressure315 Pa1.26 in. wg
Voltage230 V
Speed1,335 rpm
Input power137 W
Noise63 dB(A)

LWFA4E180-092SS-01 AC Single Inlet Forward Centrifugal Blower Ø180 mm

Ø180 mm | AC | Max airflow 787.5 m³/h | Max static pressure 315 Pa | 63 dB(A)

SKU: LWFA4E180-092SS-01 Categories: Centrifugal Fans, Impeller Ø160–315 mm, Single Inlet Forward Curved Blowers

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Single Inlet Forward Centrifugal Blower · SKU on PDF p. 12

All files for LWFA4E180-092SS-015 files · direct download

PDFFull product catalogue · model on PDF p. 12 WEBPDimensional drawing WEBPPerformance curve PDFSeries catalogue

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Solid-fuel heating Commercial dishwashers Commercial dryers Fan burners All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFA4E180-092SS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA4E180-092SS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

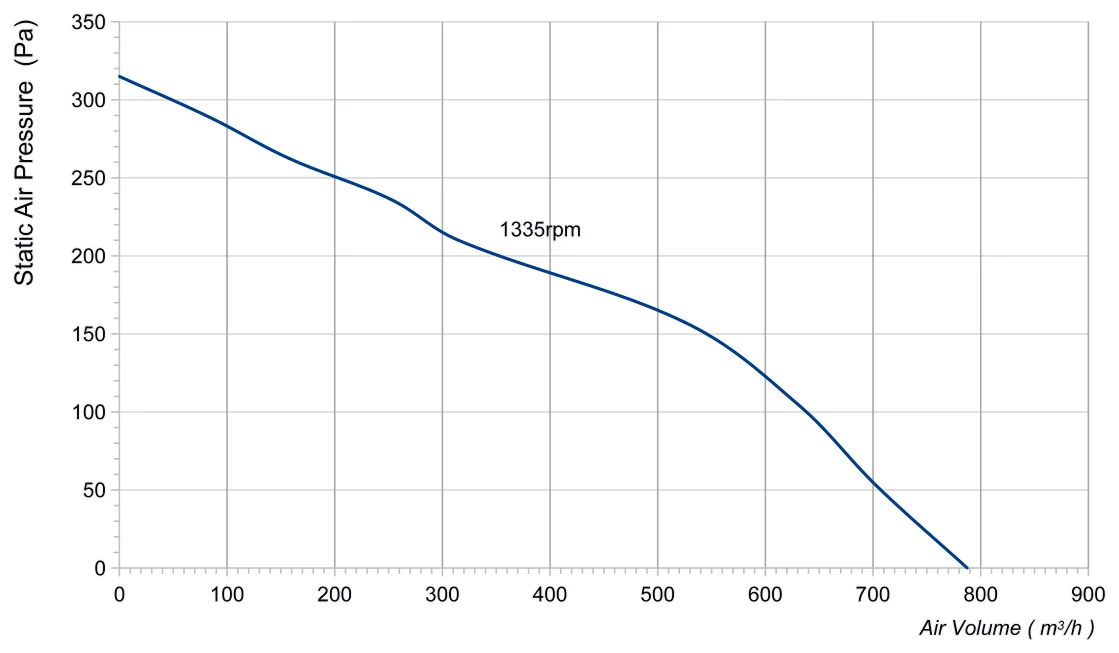

Performance curve (P-Q) LWFA4E180-092SS-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWFA4E180-092SS-01

LWFA4E180-092SS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

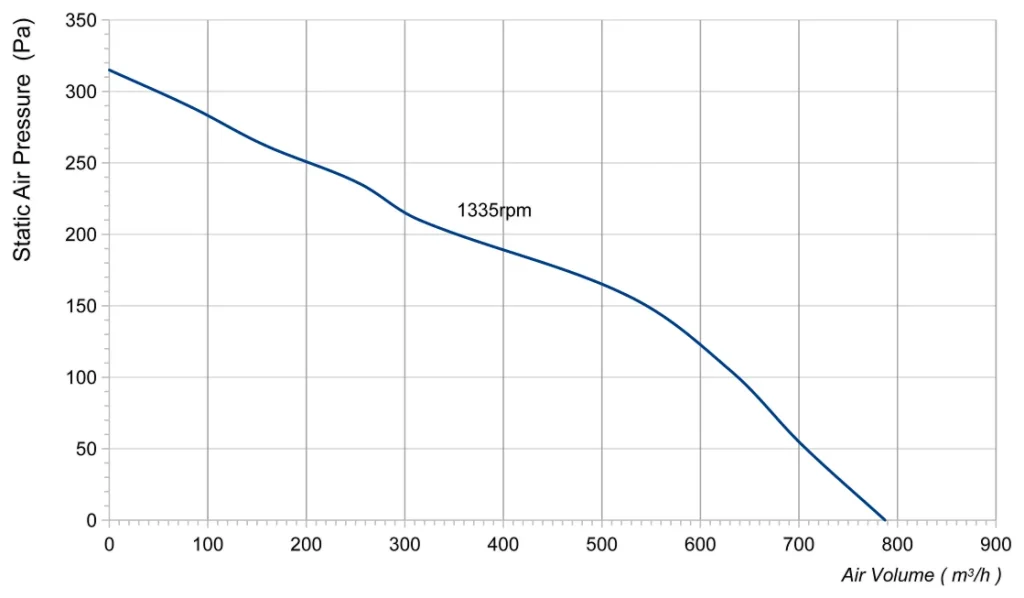

LWFA4E180-092SS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFA4E180-092SS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA4E180-092SS-01

LWFA4E180-092SS-01 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø180 mm, rated 230 V AC, maximum airflow 787.5 m³/h, maximum static pressure 315 Pa, noise 63 dB(A), input power 137 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4E180-092SS-01
Series	LWFA4E180
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.59 A
Input power	137 W
Speed	1,335 rpm
Max. airflow	787.5 m³/h
Max. static pressure	315 Pa
Noise	63 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø180 mm
Rotor diameter	92 mm
Impeller material	Galvanised sheet steel
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4E180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWFA4E180-092SS-01

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø180 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA4E180-092SS-01 this model	787.5 m³/h	315 Pa	1,335 rpm	137 W	63 dB(A)	230 V
LWBA2E180-092NS-03	443 m³/h	335 Pa	2,560 rpm	52 W	63 dB(A)	230 V	View
LWBA2E180-092NS-01	443 m³/h	335 Pa	2,550 rpm	52 W	63 dB(A)	230 V	View
LWBA2E180-092NS-02	494 m³/h	371 Pa	2,850 rpm	66 W	66 dB(A)	230 V	View
LWFA2E180-092SS-03	742 m³/h	670 Pa	2,000 rpm	300 W	73 dB(A)	230 V	View
LWFA4E180-092SS-02	772.5 m³/h	200.85 Pa	1,330 rpm	135 W	63 dB(A)	230 V	View
LWFA4E180-092NS-01	773 m³/h	195.7 Pa	1,450 rpm	85 W	69 dB(A)	230 V	View
LWFA4E180-092DS-01	1,205.1 m³/h	247.2 Pa	1,250 rpm	200 W	63 dB(A)	230 V	View
