ImpellerØ450 mm17.7 in
Max airflow3,899 m³/h2,295 CFM
Voltage220/230 V
Speed920 rpm
Input power138 W
Noise55 dB(A)

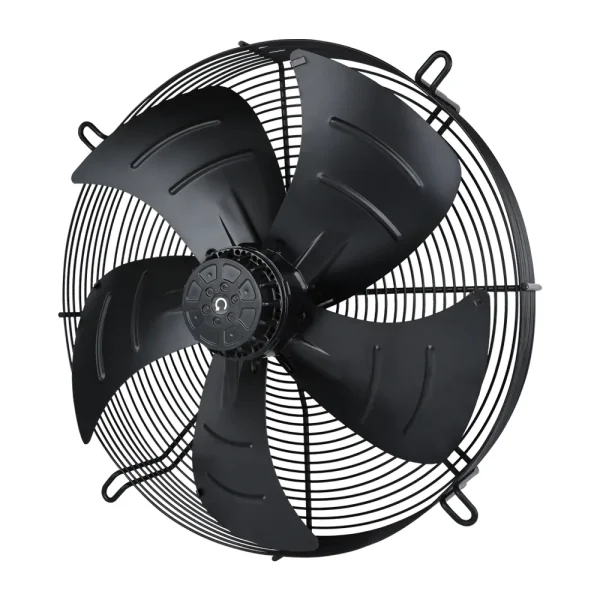

LWAA6E450S-5MEB-06 AC Axial Fan Ø450 mm

Ø450 mm | AC | Max airflow 3,899 m³/h | 55 dB(A)

SKU: LWAA6E450S-5MEB-06 Categories: AC Axial Fans, Axial Fans, Impeller Ø295–450 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC ( ) Axial fans( Standard Version) · SKU on PDF p. 17

All files for LWAA6E450S-5MEB-066 files · direct download

PDFFull product catalogue · model on PDF p. 17 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Heat exchangers & condensers Refrigeration Condensing units Refrigeration condensers All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWAA6E450S-5MEB-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAA6E450S-5MEB-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAA6E450S-5MEB-06

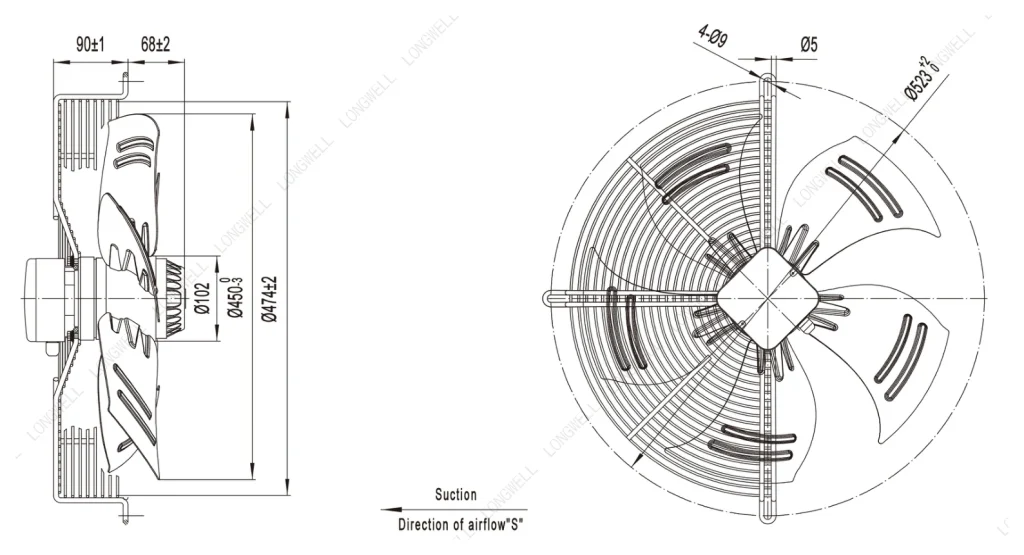

LWAA6E450S-5MEB-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

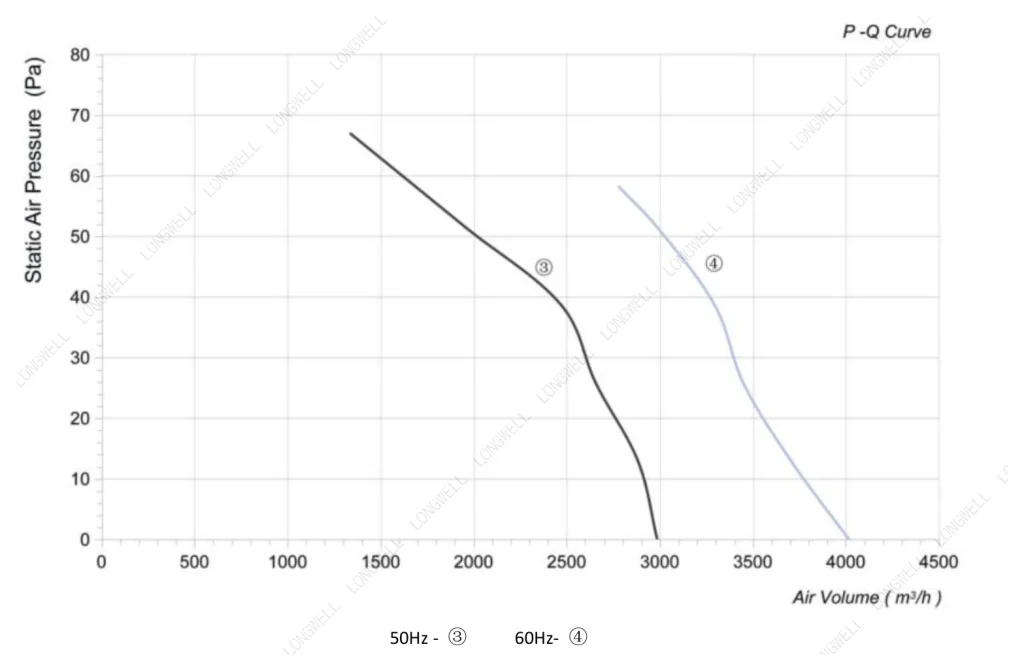

LWAA6E450S-5MEB-06 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA6E450S-5MEB-06 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAA6E450S-5MEB-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAA6E450S-5MEB-06

LWAA6E450S-5MEB-06 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø450 mm, rated 220/230 V AC, maximum airflow 3,899 m³/h, noise 55 dB(A), input power 138 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA6E450S-5MEB-06
Series	LWAA6E450
Motor type	AC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	198 ~ 242 V
Frequency	50 Hz
Current	0.75 A
Input power	138 W
Speed	920 rpm
Max. airflow	3,899 m³/h
Noise	55 dB(A)
Ambient temperature	-30 ~ +60 ℃
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 95 % RH
Altitude	< 1000m
Impeller diameter	Ø450 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA6E450: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAA6E450S-5MEB-06

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø450 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA6E450S-5MEB-06 this model	3,899 m³/h	see curve	920 rpm	138 W	55 dB(A)	220/230 V
LWAA6E450S-5MEB-05	2,987 m³/h	see curve	920 rpm	135 W	56 dB(A)	220/230 V	View
LWAA6D450S-5MEB-07	2,987 m³/h	see curve	910 rpm	135 W	56 dB(A)	380 V	View
LWAA6D450S-5MEB-08	3,502 m³/h	see curve	1,030 rpm	140 W	58 dB(A)	380 V	View
LWAA4E450B-5MKB-22	4,635 m³/h	see curve	1,350 rpm	250 W	62 dB(A)	220/230 V	View
LWAA4E450S-5MEB-14	5,150 m³/h	see curve	1,350 rpm	270 W	58 dB(A)	220/230 V	View
LWAA4E450S-5MKB-18	5,459 m³/h	see curve	1,350 rpm	270 W	58 dB(A)	220/230 V	View
LWAA4D450S-5MEW-23	5,562 m³/h	see curve	1,390 rpm	280 W	—	380 V	View
LWAA4E450S-5MEW-22	5,562 m³/h	see curve	1,350 rpm	280 W	—	220 V	View
LWAA4E450S-5MKB-19	5,665 m³/h	see curve	1,400 rpm	330 W	60 dB(A)	220/230 V	View
LWAA4E450S-5MEB-15	5,665 m³/h	see curve	1,400 rpm	330 W	60 dB(A)	220/230 V	View
LWAA4E450S-5MEB-11	5,768 m³/h	see curve	1,350 rpm	380 W	64 dB(A)	220/230 V	View
LWEA450S(T)M-163E	6,658 m³/h	150 Pa	1,450 rpm	550 W	—	220 V	View
LWAA4E450S-5MEB-13	7,025 m³/h	see curve	1,420 rpm	400 W	72 dB(A)	230 V	View
LWA-450(18")U(S)M-01	12,500 m³/h	580 Pa	2,800 rpm	1,500 W	—	110-120 V	View
