ImpellerØ630 mm24.8 in
Max airflow21,742 m³/h12,797 CFM
Max static pressure1,677 Pa6.73 in. wg
Voltage400 V
Speed1,780 rpm
Input power5,600 W7.51 hp

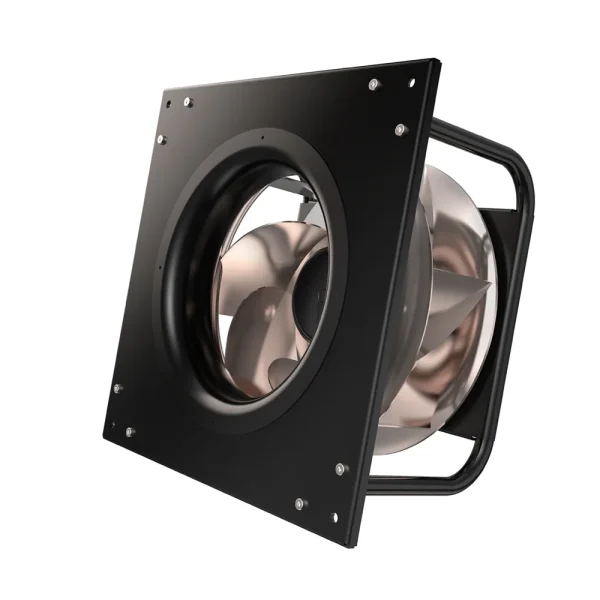

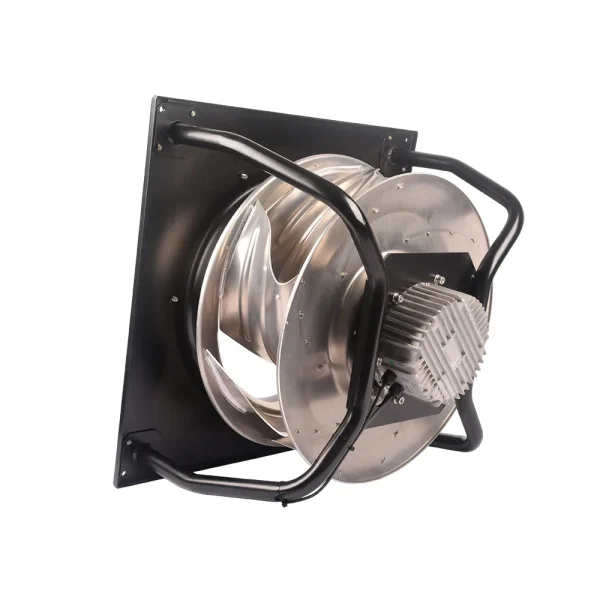

LWBE3G630-188PT-04 EC Plug Fan Ø630 mm

Ø630 mm | EC | Max airflow 21,742 m³/h | Max static pressure 1,677 Pa

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G630-188PT-04

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWBE3G630-188PT-04drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

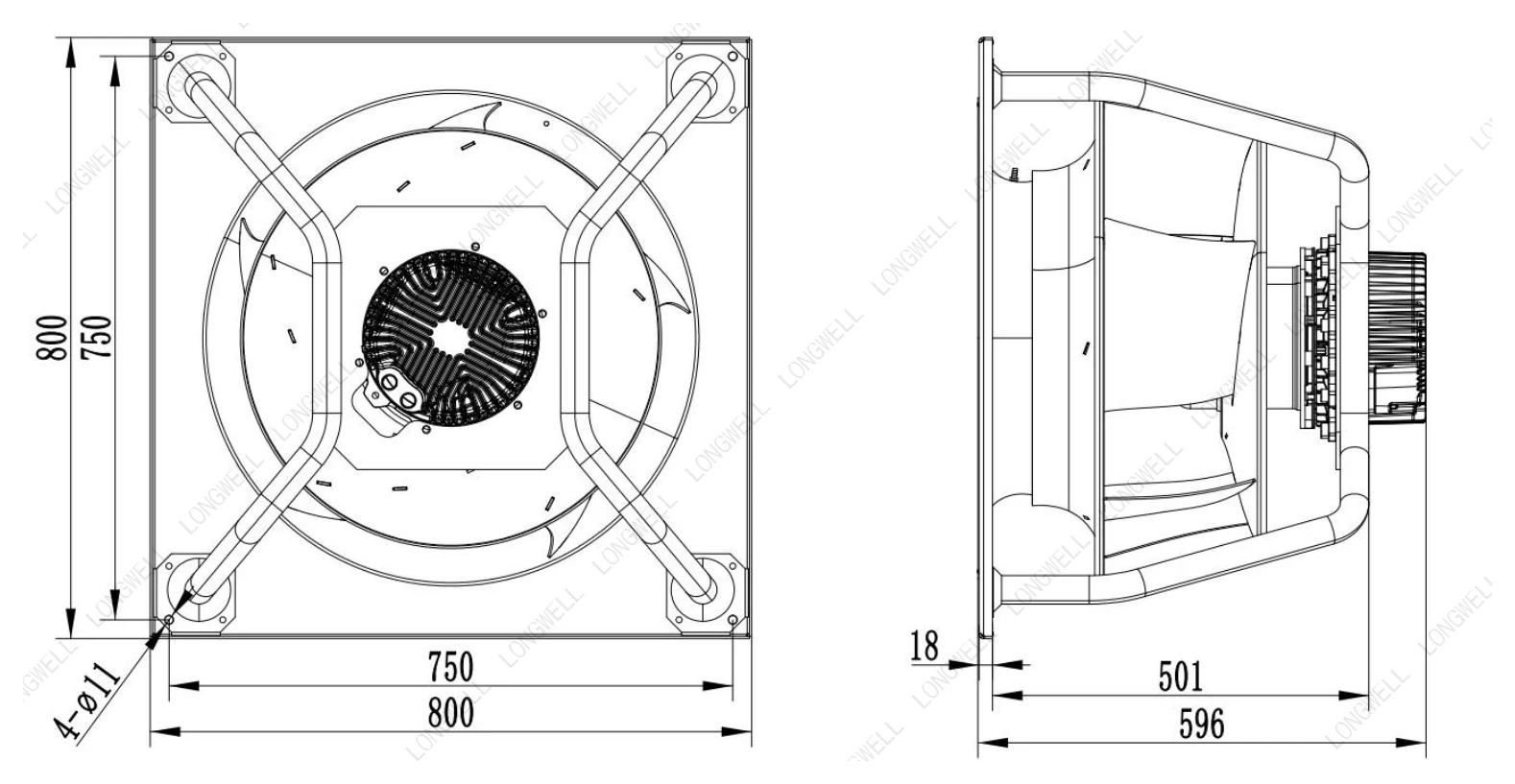

LWBE3G630-188PT-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

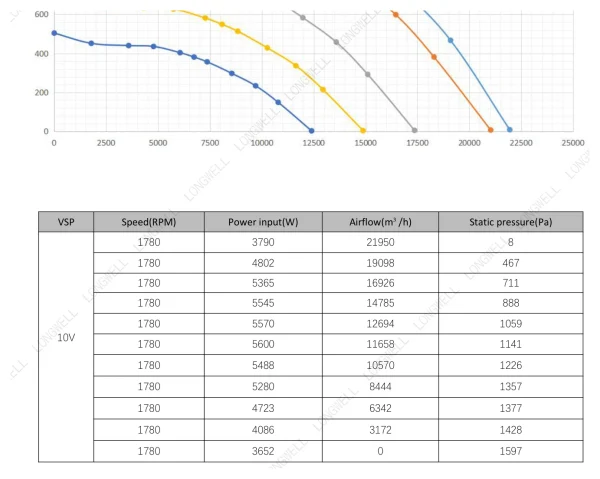

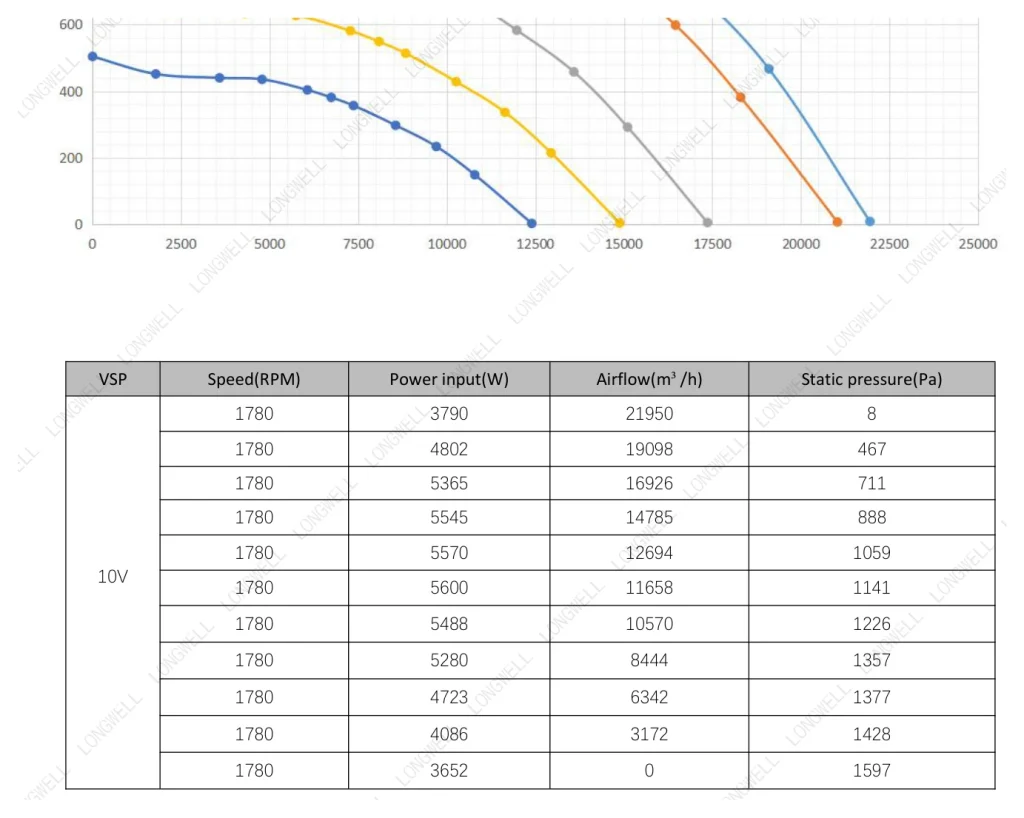

LWBE3G630-188PT-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

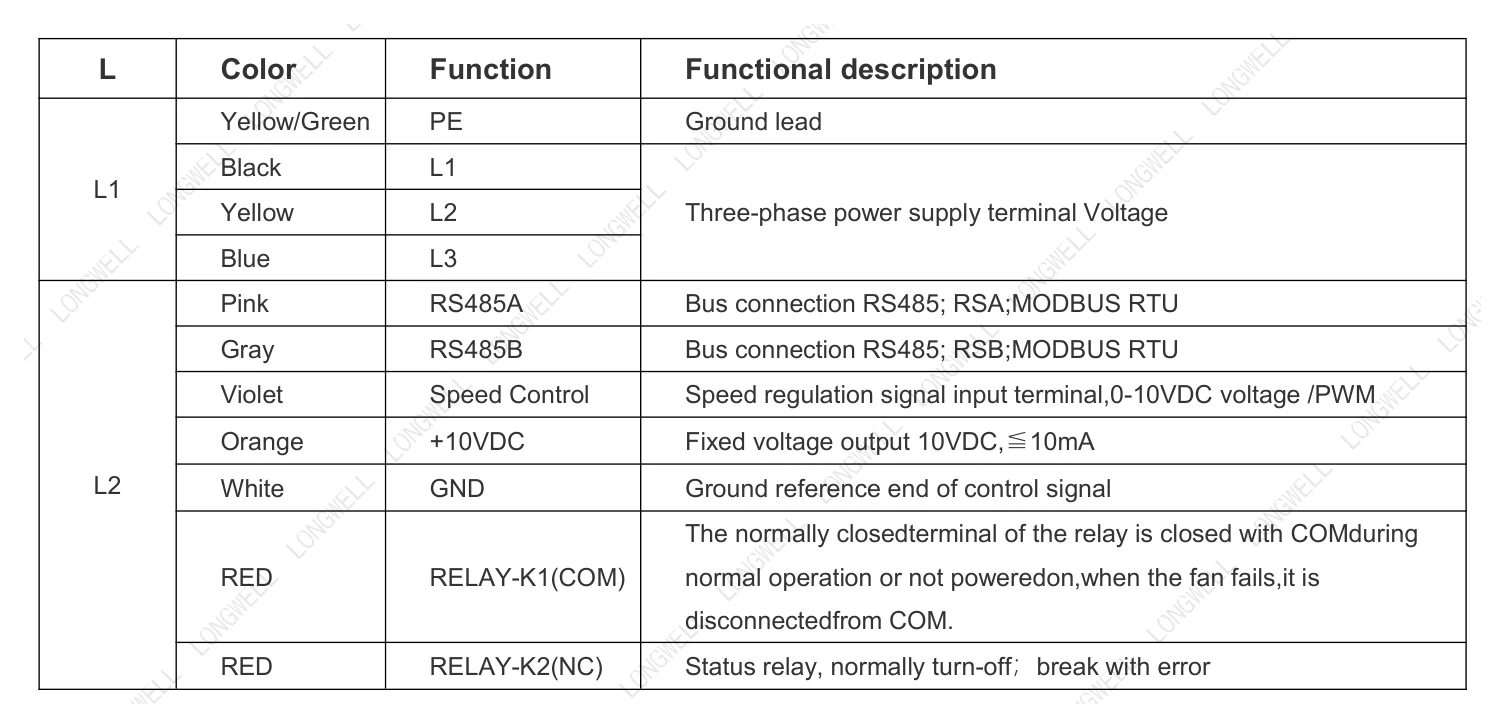

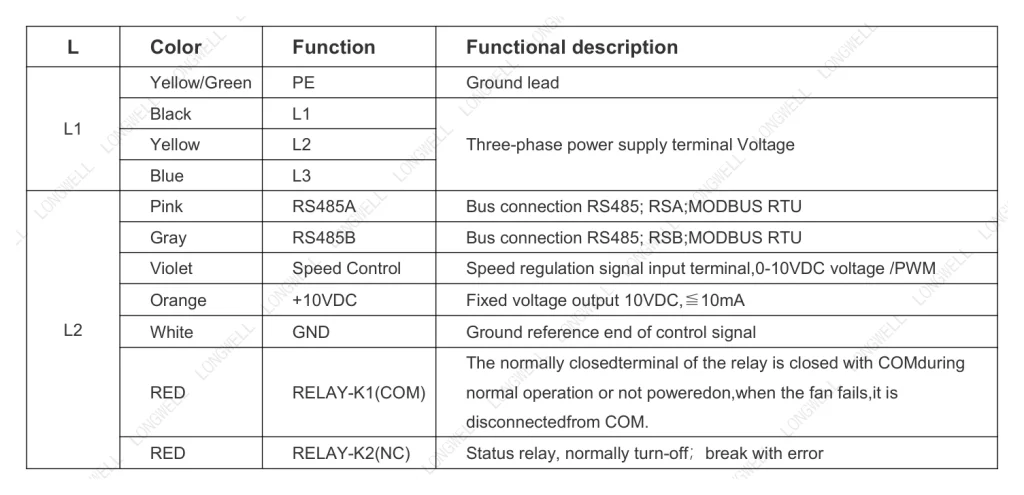

LWBE3G630-188PT-04 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWBE3G630-188PT-04

PDFDatasheet DOCXDatasheet · 608 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBE3G630-188PT-04 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø630 mm, rated 400 V EC, maximum airflow 21,742 m³/h, maximum static pressure 1,677 Pa, input power 5,600 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G630-188PT-04
Series	LWBE3G630
Motor type	EC
Phase	3-phase
Rated voltage	400 V
Frequency	50 Hz
Current	8.1 A
Input power	5,600 W
Speed	1,780 rpm
Max. airflow	21,742 m³/h
Max. airflow (CFM)	12,912 CFM
Max. static pressure	1,677 Pa
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø630 mm
Rotor diameter	188
Impeller material	Aluminum Alloy ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Speed control	0–10 VDC / PWM / RS485
Control signal	1.5–9.5 VDC; below 0.9 VDC standby
PWM input	1–10 kHz, amplitude 10–12 V, duty cycle 0%–100%
Speed feedback	15 pulses/rev, open-collector output
Auxiliary output	datasheet: 10 VDC / ≤22 mA; wiring diagram: 10 VDC / ≤10 mA
Communication	LWRS485-03; RS485 / Modbus RTU
Protection functions	current limiting, over-temperature, over-current, locked-rotor, input phase-loss protection
Soft start	full-speed start delay <35 s
Fault relay	fault status relay: COM / NC

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G630: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø630 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWBE3G630-188PT-04 this model	21,742 m³/h	1,677 Pa	1,780 rpm	5,600 W	—	400 V
LWAE3G630TS-5MKW-09	12,566 m³/h	258 Pa	930 rpm	580 W	75 dB(A)	3 V	View
LWAE3G630TS-5PEW-11	13,670 m³/h	224 Pa	1,200 rpm	887 W	74 dB(A)	380/400 V	View
LWAE3G630TS-5MKW-08	13,905 m³/h	256 Pa	1,020 rpm	780 W	74 dB(A)	3 V	View
LWAE3G630TT-5MNW-02	14,935 m³/h	238 Pa	1,150 rpm	800 W	69 dB(A)	380 V	View
LWAE3G630TT-5MKW-06	14,935 m³/h	238 Pa	1,250 rpm	800 W	69 dB(A)	380 V	View
LWAE3G630TT-5MEW-04	14,935 m³/h	238 Pa	1,150 rpm	800 W	69 dB(A)	380 V	View
LWAE3G630TS-5MNW-01	14,935 m³/h	238 Pa	1,150 rpm	800 W	69 dB(A)	380 V	View
LWAE3G630TS-5MKW-05	14,935 m³/h	238 Pa	1,150 rpm	800 W	69 dB(A)	380 V	View
LWBE3G630-188PT-05	19,158 m³/h	968 Pa	1,250 rpm	3,600 W	85 dB(A)	400 V	View
LWBE3G630-188PT-01	19,247 m³/h	887 Pa	1,300 rpm	2,195 W	—	400 V	View
LWBE3G630-188NT-06	19,247 m³/h	887 Pa	1,300 rpm	2,195 W	66 dB(A)	400 V	View
LWBE3G630-188PT-02	21,100 m³/h	1,071 Pa	1,380 rpm	2,955 W	—	400 V	View
LWBE3G630-188NT-07	21,100 m³/h	1,071 Pa	1,380 rpm	2,955 W	85 dB(A)	400 V	View
LWBE3G630-188NT-09	21,742 m³/h	1,677 Pa	1,780 rpm	5,600 W	75 dB(A)	400 V	View
