Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ560 mm22.0 in
Max airflow13,287 m³/h7,909 CFM
Max static pressure948 Pa3.81 in. wg
Voltage380 V
Speed1,340 rpm
Input power2,500 W3.35 hp
Noise85 dB(A)

LWBA4D560-188NT-01 AC Backward Curved Centrifugal Fan Ø560 mm

Ø560 mm | AC | Max airflow 13,287 m³/h | Max static pressure 948 Pa | 85 dB(A)

SKU: LWBA4D560-188NT-01 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø400–560 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Backward centrifugal fans · SKU on PDF p. 38

All files for LWBA4D560-188NT-015 files · direct download

PDFFull product catalogue · model on PDF p. 38 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWBA4D560-188NT-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBA4D560-188NT-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBA4D560-188NT-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWBA4D560-188NT-01

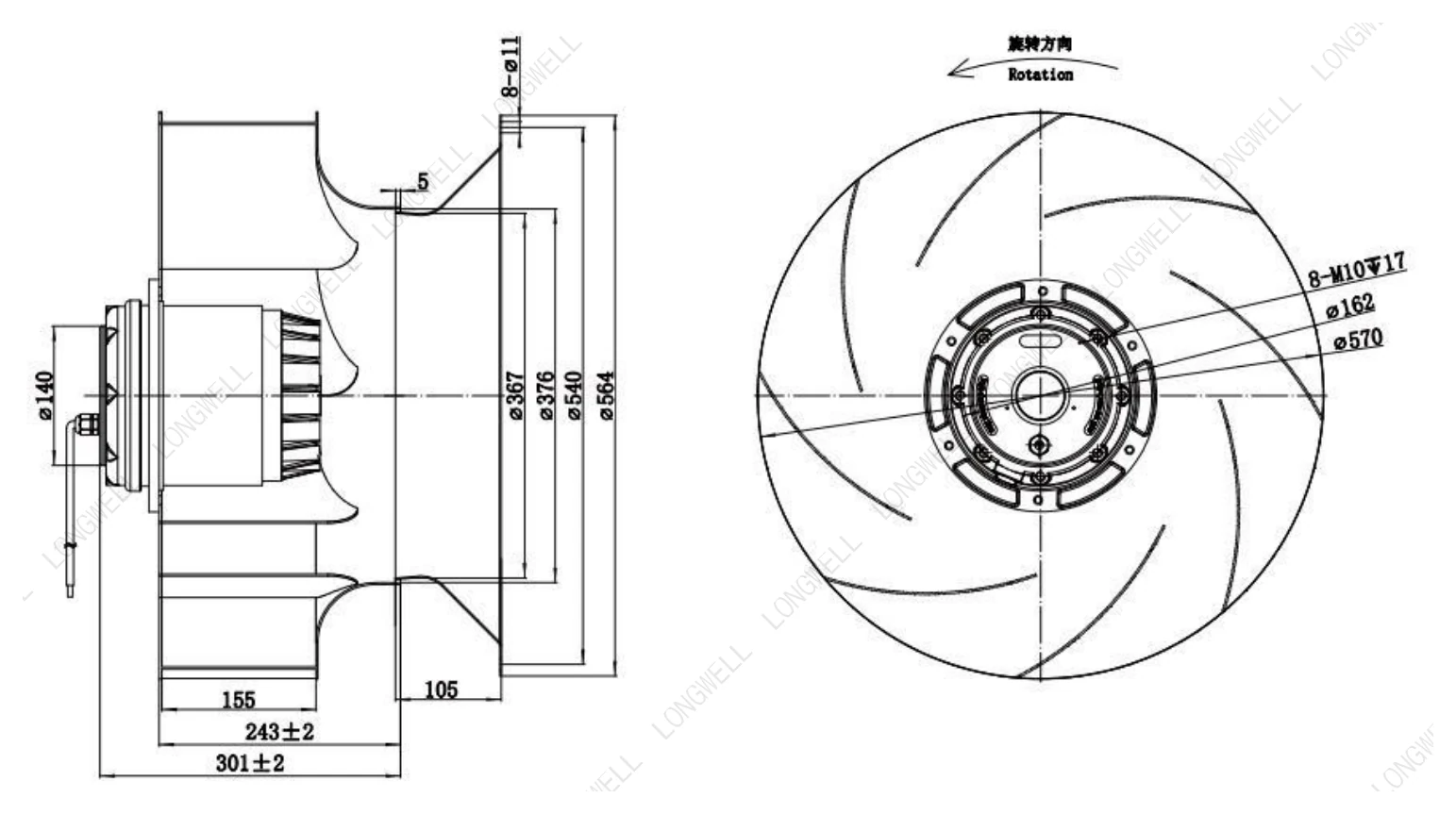

LWBA4D560-188NT-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

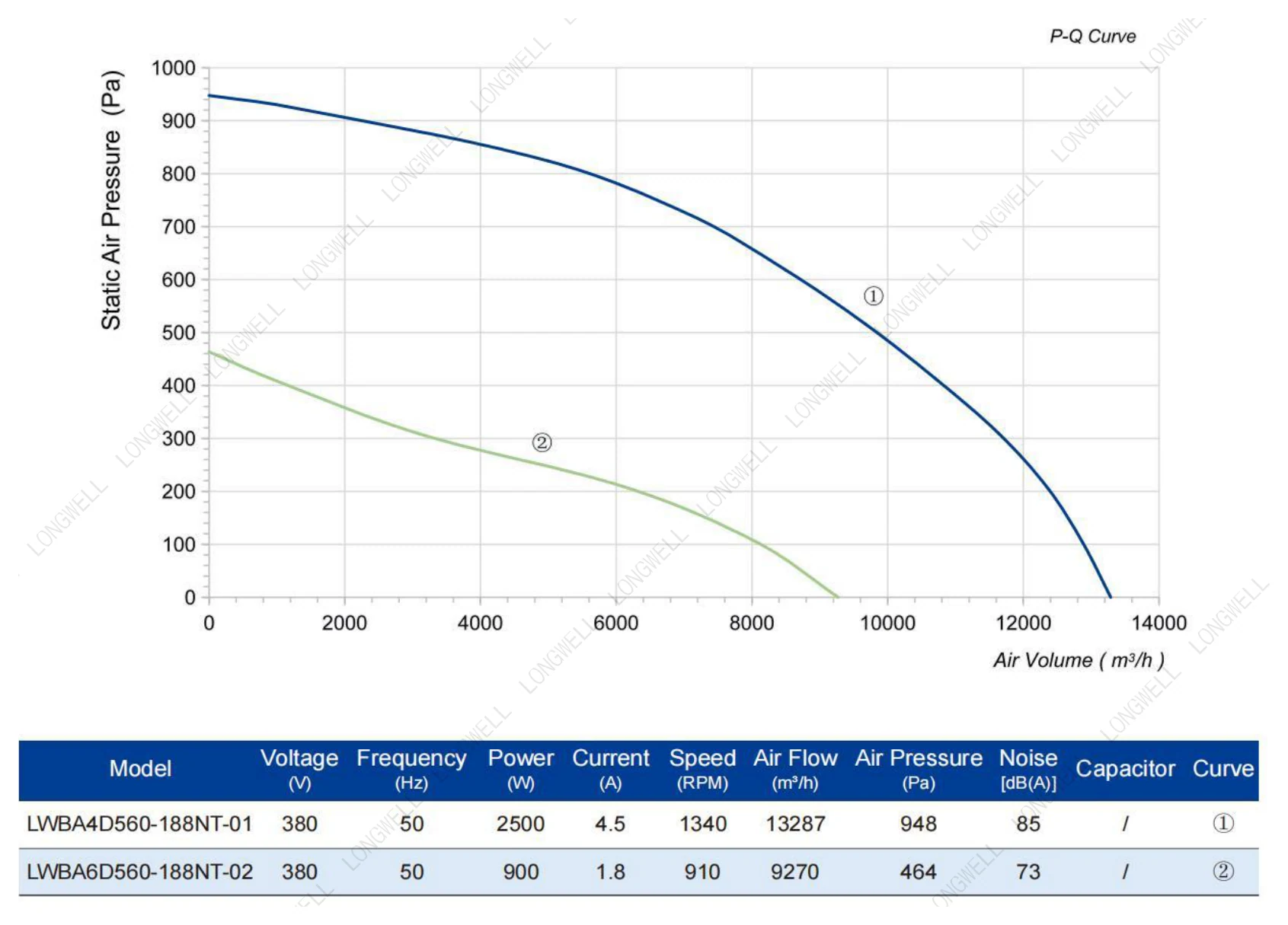

LWBA4D560-188NT-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

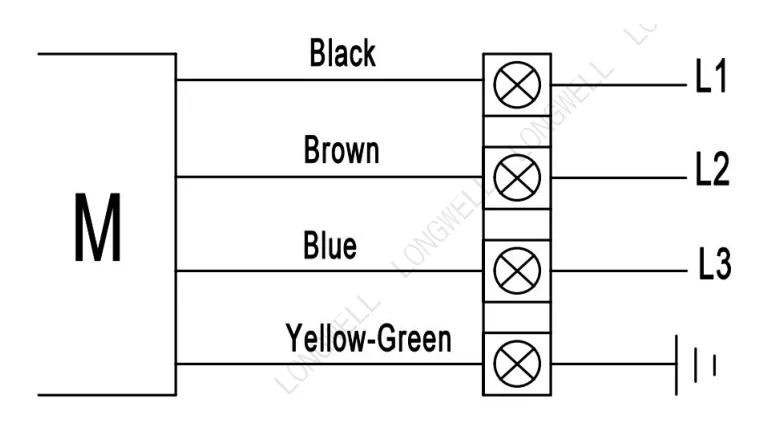

LWBA4D560-188NT-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWBA4D560-188NT-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBA4D560-188NT-01

LWBA4D560-188NT-01 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø560 mm, rated 380 V AC, maximum airflow 13,287 m³/h, maximum static pressure 948 Pa, noise 85 dB(A), input power 2,500 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWBA4D560-188NT-01
Series	LWBA4D560
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	4.5 A
Input power	2,500 W
Speed	1,340 rpm
Max. airflow	13,287 m³/h
Max. airflow (CFM)	7,909 CFM
Max. static pressure	948 Pa
Noise	85 dB(A)
Ambient temperature	-65 ~ 40 °C
Storage temperature	-40 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø560 mm
Rotor diameter	188 mm
Impeller material	Aluminum Alloy( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBA4D560: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
