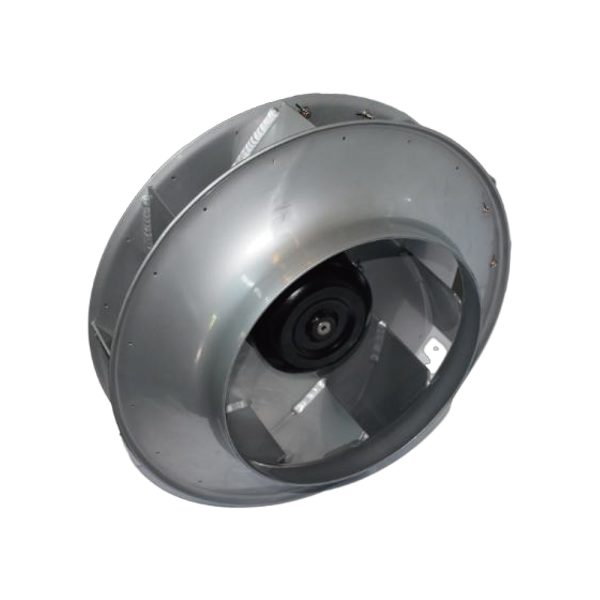

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- Max airflow2,600 m³/h1,530 CFM
- Max static pressure525 Pa2.11 in. wg
- Voltage110 V
- Speed2,300 rpm
- Input power900 W1.21 hp
- Noise76 dB(A)
LWBE(RT)320-PW-03 Rail Transit Ventilation Fan
Max airflow 2,600 m³/h | Max static pressure 525 Pa | 76 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

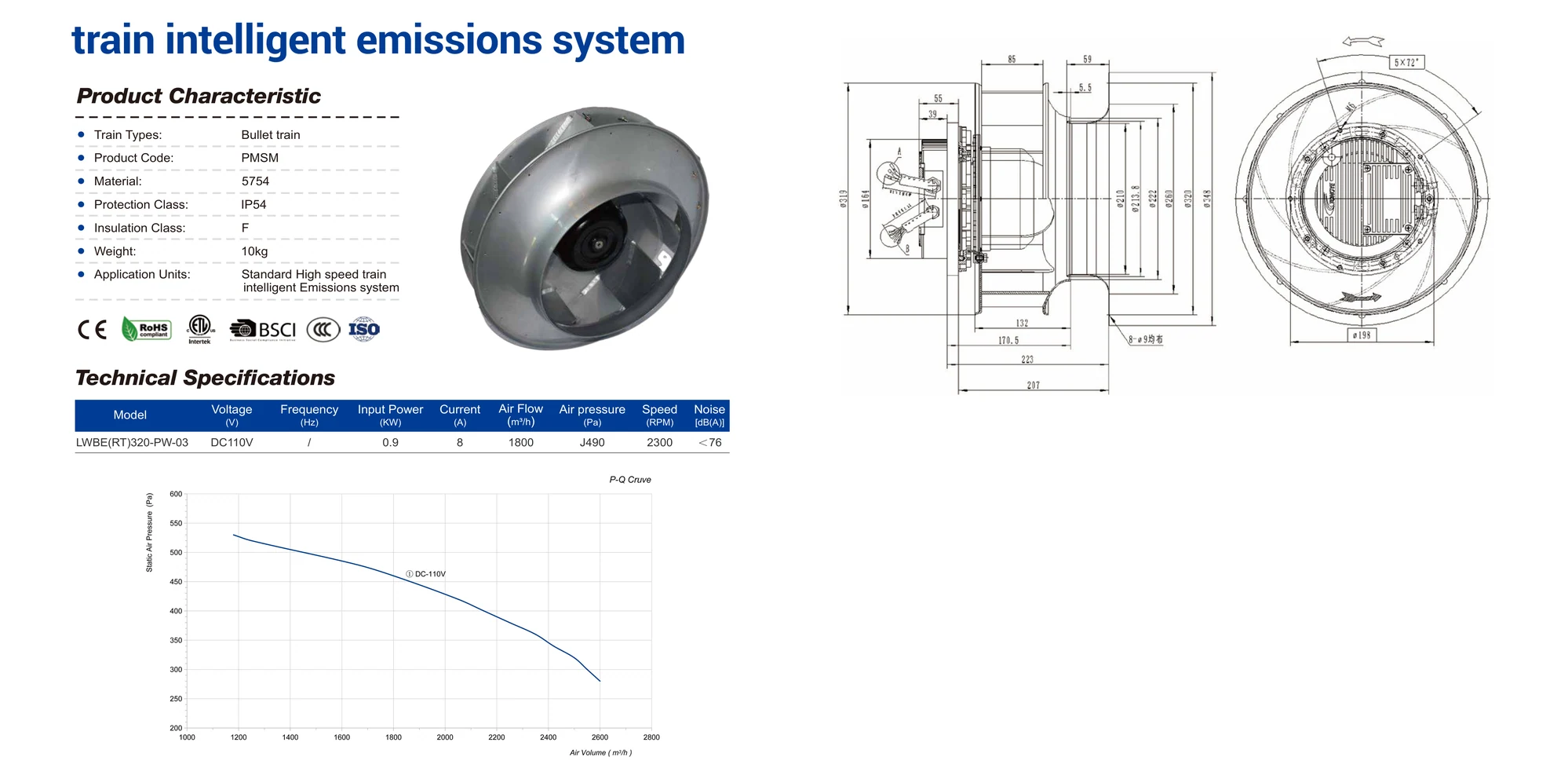

Dimensional drawing LWBE(RT)320-PW-03
Files for LWBE(RT)320-PW-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBE(RT)320-PW-03
LWBE(RT)320-PW-03 is a LONGWELL Rail Transit Ventilation Fan from the Rail Transit Fans range, rated 110 V, maximum airflow 2,600 m³/h, maximum static pressure 525 Pa, noise 76 dB(A), input power 900 W.
Technical data
| Model | LWBE(RT)320-PW-03 |
|---|---|
| Rated voltage | 110 V |
| Current | 8 A |
| Input power | 900 W |
| Speed | 2,300 rpm |
| Max. airflow | 2,600 m³/h |
| Max. static pressure | 525 Pa |
| Noise | 76 dB(A) |
| Impeller material | 5754 Protection Class: IP54 Insulation Class: F |
Typical applications
- Metro and rail vehicle HVAC
- Saloon ventilation
- Station and platform exhaust
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
