- ImpellerØ280 mm11.0 in
- Max airflow2,600 m³/h1,530 CFM
- Max static pressure490 Pa1.97 in. wg
- Noise69 dB(A)
LWFA-E-280-01 LWFA Series Direct Drive Centrifugal Blower Ø280 mm
Ø280 mm | AC | Max airflow 2,600 m³/h | Max static pressure 490 Pa | 69 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

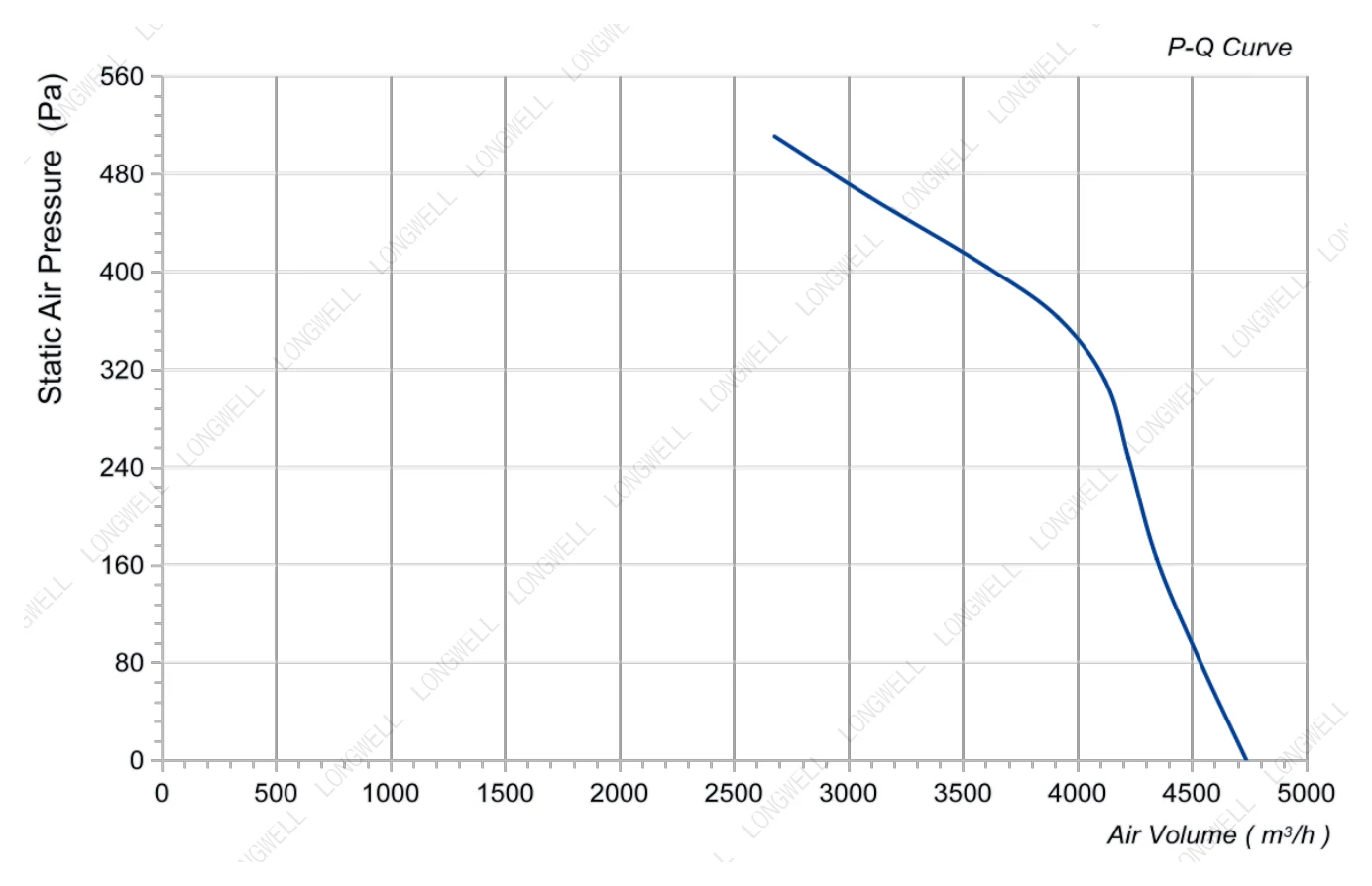

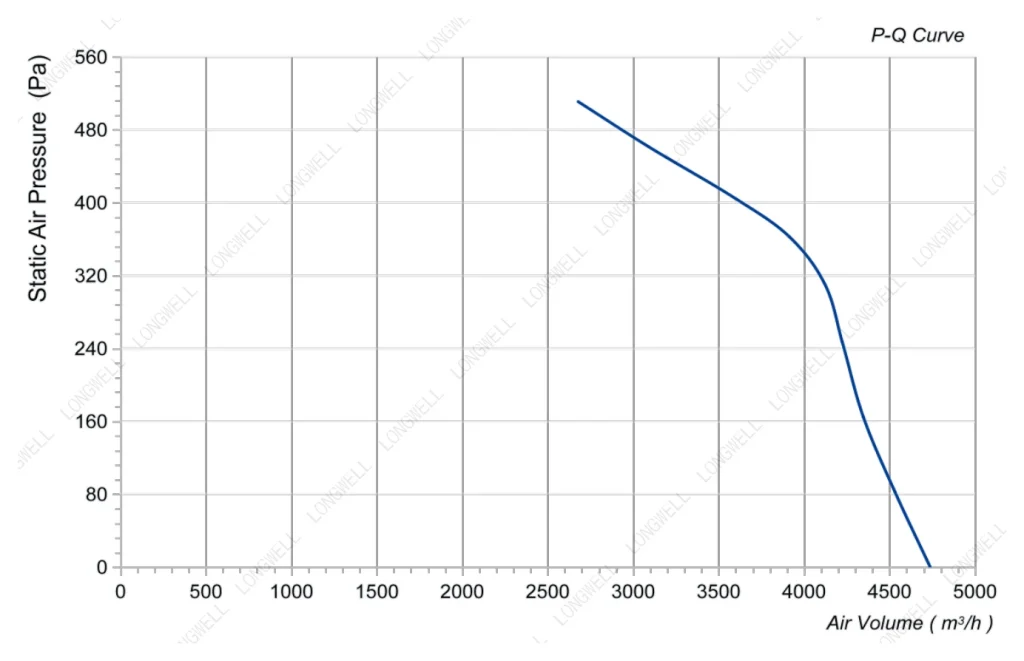

Performance curve (P-Q) LWFA-E-280-01
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWFA-E-280-01
LWFA-E-280-01 — construction, airflow path and running condition.
Longwell Fans, Setting Sail for Global Excellence | LWFA-E-280-01 · open in video library

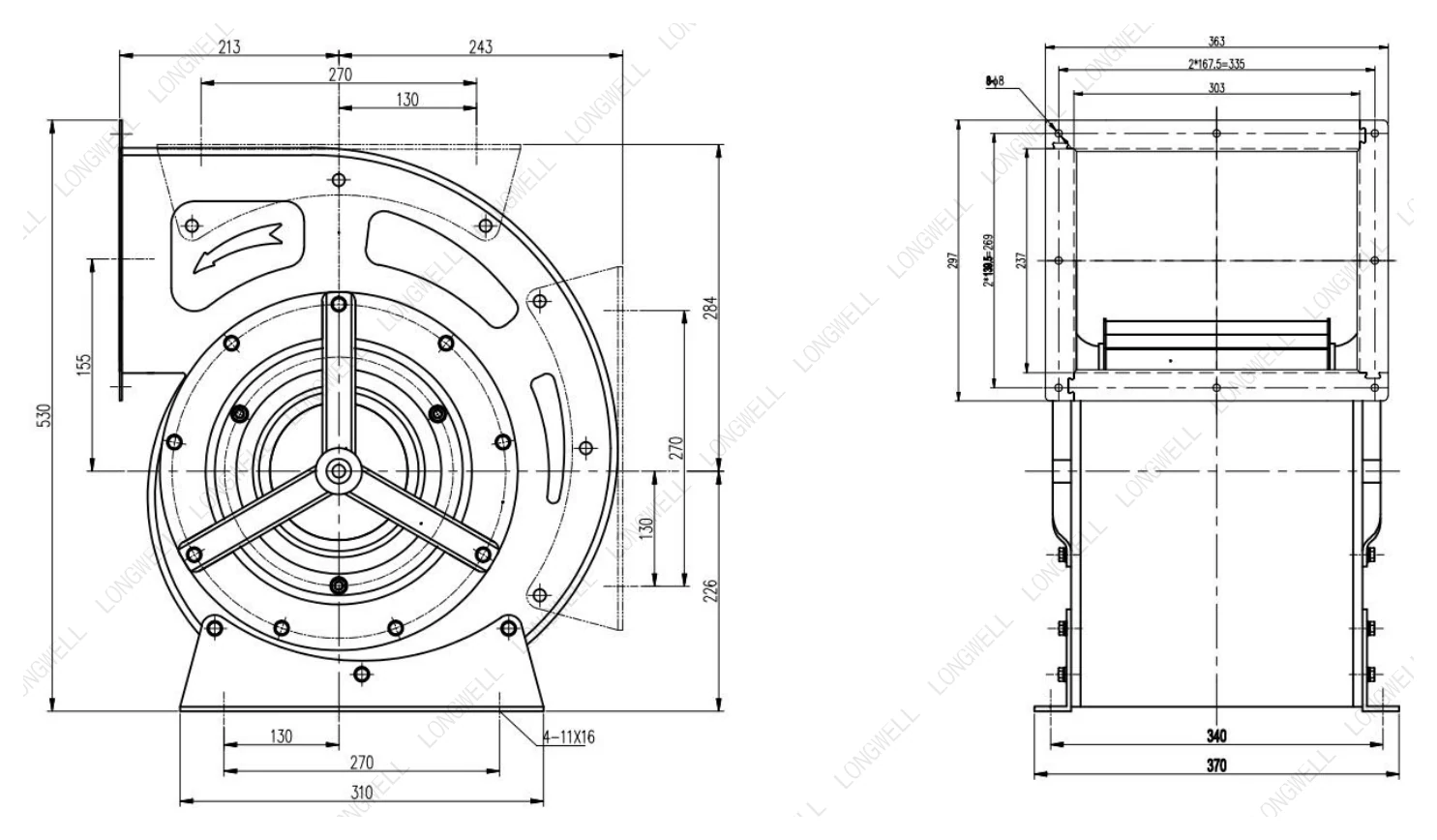

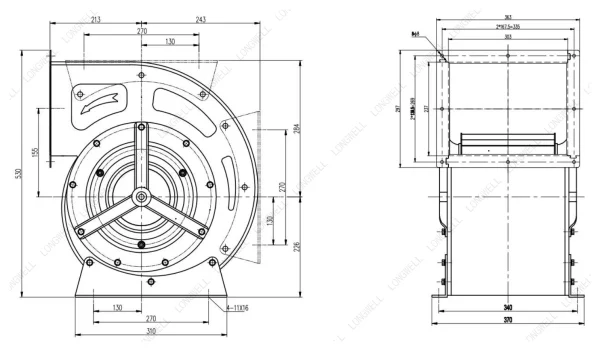

Drawing, Curve & Wiring LWFA-E-280-01
Files for LWFA-E-280-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA-E-280-01
LWFA-E-280-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø280 mm, maximum airflow 2,600 m³/h, maximum static pressure 490 Pa, noise 69 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA-E-280-01 |
|---|---|
| Motor type | AC |
| Max. airflow | 2,600 m³/h |
| Max. static pressure | 490 Pa |
| Noise | 69 dB(A) |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø280 mm |
| Blade diameter | 280mm |
| Impeller material | Galvanized sheet ( Impeller ) |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
