- ImpellerØ150 mm5.9 in
- Max airflow2,500 m³/h1,471 CFM
- Max static pressure85 Pa0.34 in. wg
- Voltage230 V
- Speed800 rpm
- Input power180 W
- Noise71 dB(A)
LWCA-150700SN-06 AC Cross Flow Fan Ø150 mm
Ø150 mm | AC | Max airflow 2,500 m³/h | Max static pressure 85 Pa | 71 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCA-150700SN-06

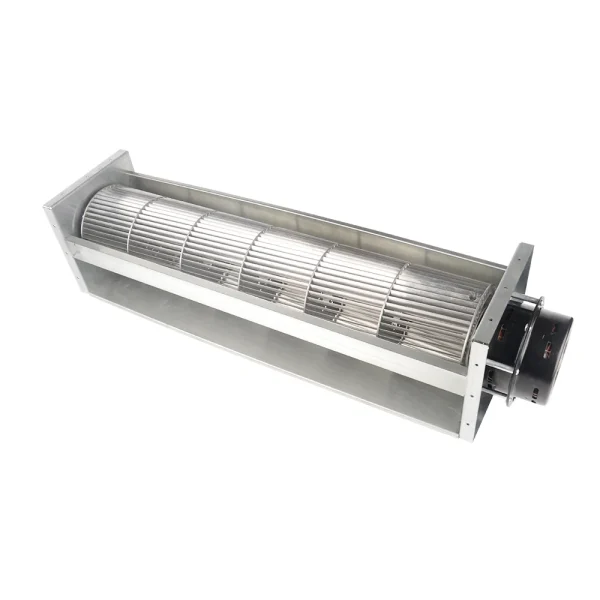

LWCA-150700SN-06 — construction, airflow path and running condition.

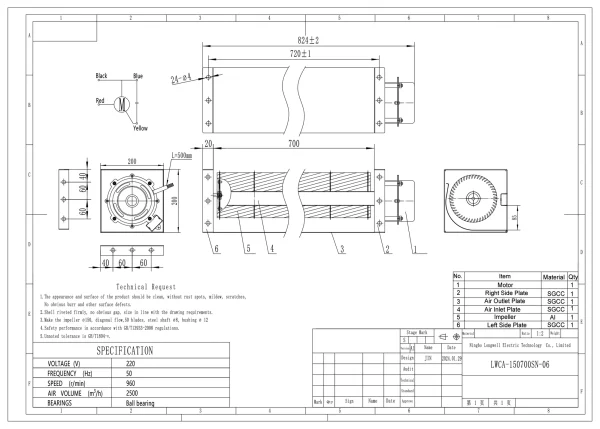

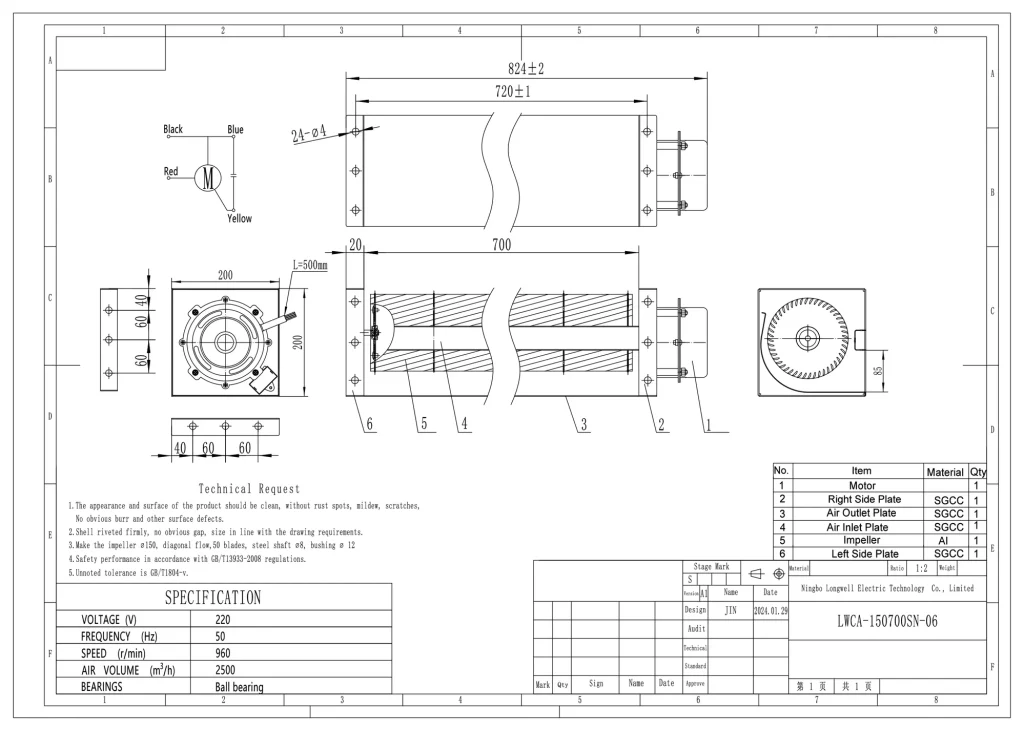

Dimensional drawing LWCA-150700SN-06
Files for LWCA-150700SN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCA-150700SN-06
LWCA-150700SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø150 mm, rated 230 V AC, maximum airflow 2,500 m³/h, maximum static pressure 85 Pa, noise 71 dB(A), input power 180 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-150700SN-06 |
|---|---|
| Series | LWCA150700 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 180 W |
| Speed | 800 rpm |
| Max. airflow | 2,500 m³/h |
| Max. static pressure | 85 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø150 mm |
| Outlet length | 700mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA150700: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWCA-150700SN-06
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø150 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-150700SN-06 this model | 2,500 m³/h | 85 Pa | 800 rpm | 180 W | 71 dB(A) | 230 V | |
| LWCA-150380SN-06 | 1,200 m³/h | 52 Pa | 1,000 rpm | 170 W | 69 dB(A) | 230 V | View |
| LWCA-150500SN-06 | 1,800 m³/h | 70 Pa | 1,000 rpm | 190 W | 70 dB(A) | 230 V | View |
| LWCA-1501000SN-06 | 3,000 m³/h | 110 Pa | 800 rpm | 195 W | 72 dB(A) | 230 V | View |
| LWCA-1501200SN-06 | 4,000 m³/h | 135 Pa | 800 rpm | 210 W | 75 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWCA-120680SN-06Ø120 mm · 1,560 m³/h · 122 Pa · ACadjacent size
LWCA-120380SN-06Ø120 mm · 1,000 m³/h · 68 Pa · ACadjacent size
LWCA-120560SN-06Ø120 mm · 1,380 m³/h · 100 Pa · ACadjacent size
LWCD-120380MN-06Ø120 mm · 900 m³/h · 68 Pa · DCadjacent size
LWCA-120780SN-06Ø120 mm · 1,780 m³/h · 140 Pa · ACadjacent size
LWCA-120900SN-06Ø120 mm · 2,000 m³/h · 161 Pa · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWCD-150700MN-06Ø150 mm · 2,500 m³/h · 83 Pa · DCsimilar duty
LWDA-400 (16")U-MWN-03Ø400 mm · 2,500 m³/h · ACsimilar duty
LWDA-400 (16")U-MWN-01Ø400 mm · 2,500 m³/h · ACsimilar duty
LWDA-315(12.6'')S-PWN-05Ø315 mm · 2,500 m³/h · 450 Pa · ACsimilar duty
LWFA-E-250-01Ø250 mm · 2,500 m³/h · 380 Pa · ACsimilar duty
LW-G200T2,500 m³/hsimilar dutySee all AC Cross Flow Fans · select by duty point
