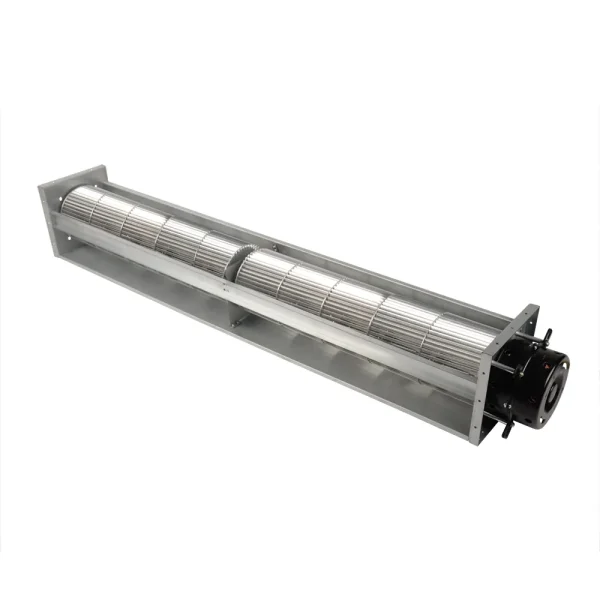

LWCA-1501200SN-06 AC Cross Flow Fan Ø150 mm
Ø150 mm | AC | Max airflow 4,000 m³/h | Max static pressure 135 Pa | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

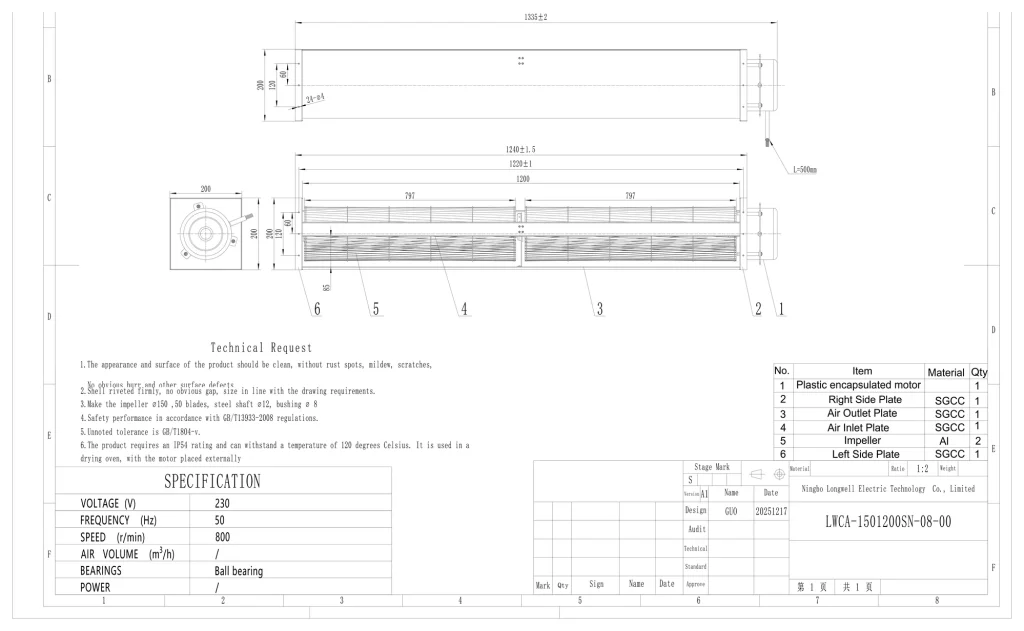

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCA-1501200SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø150 mm, rated 230 V AC, maximum airflow 4,000 m³/h, maximum static pressure 135 Pa, noise 75 dB(A), input power 210 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-1501200SN-06 |
|---|---|
| Series | LWCA15012 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Dual inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 210 W |
| Speed | 800 rpm |
| Max. airflow | 4,000 m³/h |
| Max. static pressure | 135 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø150 mm |
| Outlet length | 1200mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA15012: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø150 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-1501200SN-06 this model | 4,000 m³/h | 135 Pa | 800 rpm | 210 W | 75 dB(A) | 230 V | |
| LWDA-150 (6")U-MWN-01 | 437 m³/h | see curve | 3,400 rpm | 55 W | 58 dB(A) | 110-120 V | View |
| LWDA-150 (6")U-MWN-03 | 437 m³/h | see curve | 3,400 rpm | 55 W | 53 dB(A) | 110-120 V | View |
| LWDA-150S-MBN-12 | 457 m³/h | 368 Pa | 2,160 rpm | 72 W | 61 dB(A) | 230 V | View |
| LWDA-150(6")S-PWN-12 | 530 m³/h | 137 Pa | 2,050 rpm | 41 W | 30 dB(A) | 230 V | View |
| LWDA-150(6")U-PWN-14 | 535 m³/h | 302 Pa | 2,050 rpm | 44 W | 30 dB(A) | 115 V | View |
| LWDA-150S-PWN-13 | 556 m³/h | 309 Pa | 2,550 rpm | 80 W | 27 dB(A) | 230 V | View |
| LWDA-150 (6")S-MWN-02 | 620 m³/h | see curve | 2,900 rpm | 41 W | 55 dB(A) | 220-240 V | View |
| LWDA-150 (6")S-MWN-04 | 620 m³/h | see curve | 2,900 rpm | 41 W | 50 dB(A) | 220-240 V | View |
| LWDA-150(6")S-PWN-11 | 660 m³/h | 168 Pa | 2,400 rpm | 59 W | 32 dB(A) | 230 V | View |
| LWDA-150(6")U-PWN-13 | 674 m³/h | 355 Pa | 2,480 rpm | 59 W | 32 dB(A) | 115 V | View |
| LWDA-150(6")S-MWN-08 | 780 m³/h | 70 Pa | 2,800 rpm | 40 W | 52 dB(A) | 220 V | View |
| LWCA-150500SN-06 | 1,800 m³/h | 70 Pa | 1,000 rpm | 190 W | 70 dB(A) | 230 V | View |
| LWCA-150700SN-06 | 2,500 m³/h | 85 Pa | 800 rpm | 180 W | 71 dB(A) | 230 V | View |
| LWCA-1501000SN-06 | 3,000 m³/h | 110 Pa | 800 rpm | 195 W | 72 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
